RCTF 2025 RE wp

chaos

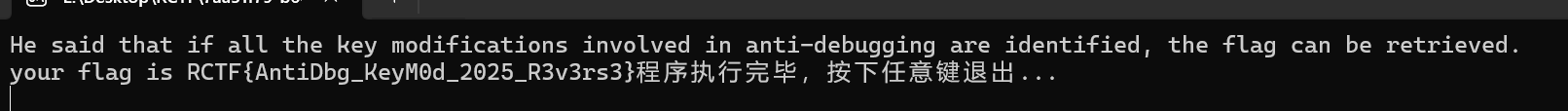

image-20251116204834285

RCTF{AntiDbg_KeyM0d_2025_R3v3rs3}

chaos2

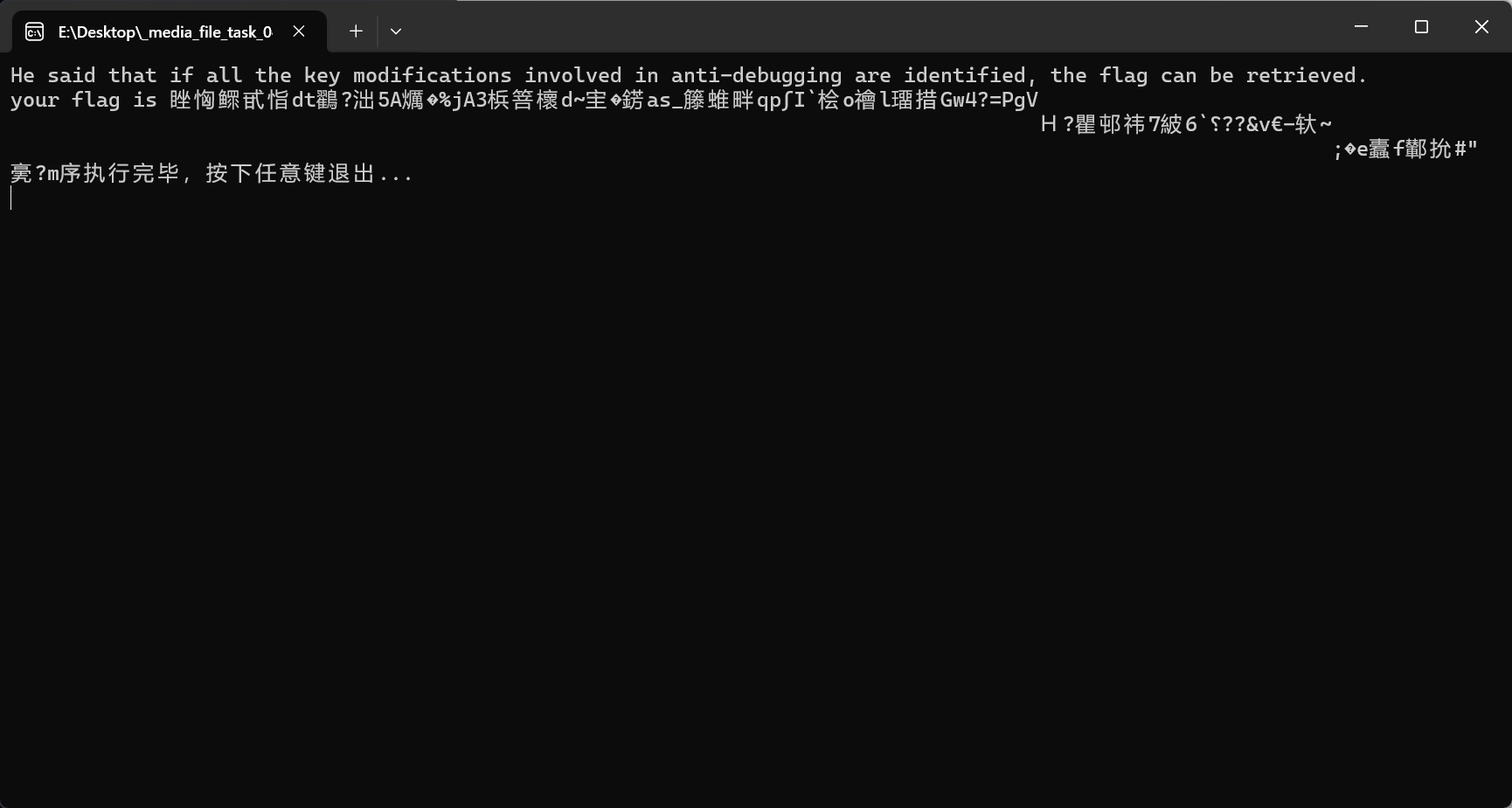

image-20251116211153306

有花指令

全patch了

patch要注意下

如main中

image-20251119103350773

不仅红框部分需要nop，绿框也需要

再修改下函数边界即可(不会的话可以问我)，然后UCP即可

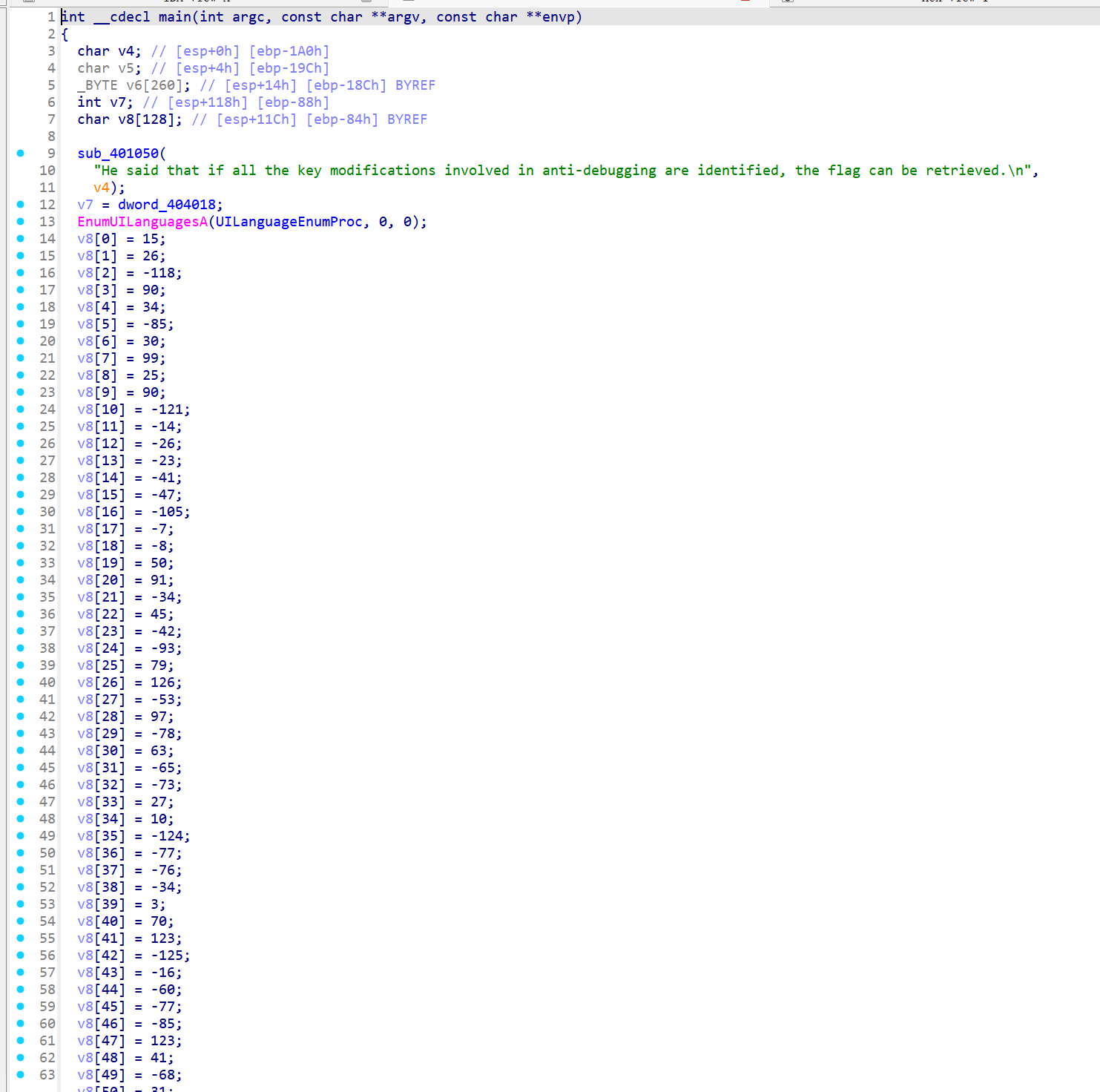

image-20251119103534684

恢复逻辑，是个rc4

main调用 EnumUILanguagesA 触发所有反调试回调，随后通过 rc4_init / rc4_apply 对 128 字节密文表解密并输出 flag。

0x401440在模块中搜索标记 0x12345678，找到后记录其后 0x80 字节的地址（0x402818），这里存放 RC4 key，初始为 flag:{Th1sflaglsG00ds}。

每个反调试函数都在未检测到调试器时把 key 的一个字节修正成正确值，使其最终变成 flag:{ThisflagIsGoods}：

  • check_PEB_BeingDebugged (0x401090) 把 key[8] 从 ‘1’ 改成 ‘i’。

  • check_ProcessDebugPort (0x401200) 调 NtQueryInformationProcess class 7，返回 0 时把 key[14] 改成 ‘I’。

  • exception_key_patch (0x4012a0) 使用 NtClose 触发异常并在 SEH 中把 key[17] 写成 ‘o’。

  • check_ProcessDebugFlags (0x4013a0) 查询 class 31，返回 1 时写 ‘o’ 到 key[18]。

    • 这四处patch成功后，rc4_init以 128 字节 key 做标准 RC4 KSA，rc4_apply对密文异或得到RCTF{AntiDbg_Reversing_2025_v2.0_Ch4llenge}。

exp

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
from typing import List

def rc4_ksa(key_bytes):
  s = list(range(256))
  j = 0
  for i in range(256):
      j = (j + s[i] + key_bytes[i % len(key_bytes)]) & 0xFF

def rc4_prga(state, data) -> bytes:
  i = j = 0
  out = bytearray()
  for byte in data:
      i = (i + 1) & 0xFF
      j = (j + state[i]) & 0xFF
      state[i], state[j] = state[j], state[i]
      k = state[(state[i] + state[j]) & 0xFF]
      out.append(byte ^ k)
  return bytes(out)

cipher = bytes([
  15, 26, 138, 90, 34, 171, 30, 99, 25, 90, 135, 242, 230, 233, 215, 209,
  151, 249, 248, 50, 91, 222, 45, 214, 163, 79, 126, 203, 97, 178, 63, 191,
  183, 27, 10, 132, 179, 180, 222, 3, 70, 123, 131, 240, 196, 179, 171, 123,
  41, 188, 31, 254, 138, 121, 38, 218, 8, 1, 133, 102, 125, 187, 238, 15,
  137, 89, 212, 95, 172, 24, 174, 11, 78, 240, 183, 5, 92, 129, 4, 159,
  164, 28, 93, 160, 185, 7, 146, 92, 138, 83, 243, 255, 247, 167, 221, 46,
  230, 237, 15, 119, 44, 74, 34, 241, 54, 79, 167, 238, 13, 214, 4, 115,
  85, 94, 62, 147, 164, 52, 41, 103, 252, 35, 121, 25, 216, 201, 43, 207
])

key = bytearray(b"flag:{Th1sflaglsG00ds}" + b"\x00" * (128 - 22))
key[8] = ord('i')
key[14] = ord('I')
key[17] = key[18] = ord('o')

state = rc4_ksa(bytes(key))
flag = rc4_prga(state, cipher).rstrip(b"\x00")
print(flag.decode())

Onion [赛后]

赛后做了下 其实不是难题，赛中主要去参加了R3con，回来实在不想做了(因为没仔细看以为每层的加密算法不一样 😂)

sub_171D0中包含了如何解释opcode

像洋葱一样剥就行 有几个方法

  1. 叠工作量，每个去逆
  2. 写自动脚本，因为有具体的模式，不是每层不一样的算法

sub_171D0 载入 full_vmcode，在 0x10000 字节缓冲区里跑一个自制 VM，并把用户输入的 50 个 64 位 key写到 VM 内存 0xE000 开始的位置。

0x0000 - 0xDFFF : VM 字节码

0xE000 - 0xE18F (400 字节): 50 个 64 位用户输入密钥

0xE190 - 0xFFFF : 栈空间

这个是opcode功能的识别

opcode 语义（64-bit 寄存器 r0~r7，16-bit pointer1/pointer2，栈指针 stack_ptr）
0x00 NOP
0x01 target 无条件跳转：pc = target
0x02 target flag==0 时跳转（“if not equal”）
0x03 target flag!=0 时跳转（“if equal”）
0x11 addr ptr1 = addr（16-bit）
0x12 addr ptr2 = addr
0x15 r r = qword[ptr1]；flag = (r==0)
0x16 r, imm r = imm；flag = (r==0)
0x17 dst, src dst = src；flag = (dst==0)
0x18 r, +off r = qword[(ptr1 + off) mod 0x10000]；flag = (r==0)
0x19 r qword[ptr1] = r
0x1A dst, offReg 取 byte：dst = byte[(ptr1 + (offReg & 0xFFFF))]；flag = (dst==0)
0x1B dst, offReg 写 byte：byte[(ptr1 + (offReg & 0xFFFF))] = dst & 0xFF
0x1C r r = (r + 1) & MASK64；flag = (r==0)
0x1D r r = (r - 1) & MASK64；flag = (r==0)
0x1E r, sh r >>= sh；flag = (r==0)
0x1F r ptr1 = (ptr1 + (r & 0xFFFF)) & 0xFFFF
0x25 dst, src dst &= src；flag = (dst==0)
0x26 dst, src dst ^= src；flag = (dst==src)?
0x27 r, sh r <<= sh；flag = (r==0)
0x29 r, imm tmp=r; r ^= imm; flag = (tmp==imm)
0x2A r, imm r &= imm；flag = (r==0)
0x2B dst, offReg 取 byte：dst = byte[(ptr2 + (offReg & 0xFFFF))]
0x2C dst, offReg 写 byte：byte[(ptr2 + (offReg & 0xFFFF))] = dst & 0xFF
0x32 r, imm 比较：flag = (r == imm)
0x80 “保存 PC”指令，后续 0x81/0x82 用
0x81 idx call_table[idx] = saved_pc + 3
0x82 idx 调用：把返回地址压栈，pc = call_table[idx]
0x83 RET：从栈弹回
0x84 r 把 r 压到 VM 栈（stack_ptr -= 8）
0x85 r 从 VM 栈弹出到 r
0x90 byte 输出字符（打印 flag 时用）
0xFF HALT（结束，返回某个寄存器值）

写个小脚本翻译一下第一层的opcode成asm

1. 读取full_vmcode，加载到一块 0x10000 字节的缓冲区。
2. 提示 “Enter 50 64-bit keys”，将用户输入的 50 个 64-bit 数写入虚拟机内存，实现方式是把每个 key 存到 0xE000 + i * 8。
3. 初始化虚拟机（8 个 64-bit 寄存器、两个 16-bit data pointer、栈/调用表、条件标志等），然后以full_vmcode为指令区执行解释器。

基于这些理解，让ai大致写了一个翻译脚本

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
101
from __future__ import annotations
from pathlib import Path
import argparse

OPCODES = {
    0x00: ("nop", []),
    0x01: ("jmp", ["addr16"]),
    0x02: ("jne", ["addr16"]),
    0x03: ("je", ["addr16"]),
    0x11: ("setp1", ["imm16"]),
    0x12: ("setp2", ["imm16"]),
    0x15: ("loadp1", ["reg"]),
    0x16: ("mov_imm", ["reg", "imm64"]),
    0x17: ("mov", ["reg", "reg"]),
    0x18: ("loadp1_off", ["reg", "imm16"]),
    0x19: ("storep1", ["reg"]),
    0x1A: ("loadp1_idx8", ["reg", "reg"]),
    0x1B: ("storep1_idx8", ["reg", "reg"]),
    0x1C: ("inc", ["reg"]),
    0x1D: ("dec", ["reg"]),
    0x1E: ("shr", ["reg", "imm8"]),
    0x1F: ("addp1_reg", ["reg"]),
    0x25: ("and", ["reg", "reg"]),
    0x26: ("xor", ["reg", "reg"]),
    0x27: ("shl", ["reg", "imm8"]),
    0x29: ("xor_imm", ["reg", "imm64"]),
    0x2A: ("and_imm", ["reg", "imm64"]),
    0x2B: ("loadp2_idx8", ["reg", "reg"]),
    0x2C: ("storep2_idx8", ["reg", "reg"]),
    0x32: ("cmp_imm", ["reg", "imm64"]),
    0x80: ("save_pc", []),
    0x81: ("store_call", ["imm8"]),
    0x82: ("call", ["imm8"]),
    0x83: ("ret", []),
    0x84: ("push", ["reg"]),
    0x85: ("pop", ["reg"]),
    0x90: ("print_byte", ["imm8"]),
    0xFF: ("halt", []),
}

REGS = {i: f"r{i}" for i in range(8)}


def read_u16(buf: bytes, off: int) -> tuple[int, int]:
    return int.from_bytes(buf[off:off+2], "little"), off + 2


def read_u64(buf: bytes, off: int) -> tuple[int, int]:
    return int.from_bytes(buf[off:off+8], "little"), off + 8


def disasm(buf: bytes, start: int, end: int | None = None):
    pc = start
    limit = len(buf) if end is None else min(len(buf), end)
    while pc < limit:
        opcode = buf[pc]
        mnemonic, operands = OPCODES.get(opcode, (None, None))
        cur = pc + 1
        parts: list[str]
        if mnemonic is None:
            # unknown opcode, bail
            print(f"{pc:04x}: .byte 0x{opcode:02x}")
            pc += 1
            continue
        values: list[str] = []
        for operand in operands:
            if operand == "addr16" or operand == "imm16":
                val, cur = read_u16(buf, cur)
                values.append(f"0x{val:04x}")
            elif operand == "imm8":
                val = buf[cur]
                cur += 1
                values.append(f"0x{val:02x}")
            elif operand == "imm64":
                val, cur = read_u64(buf, cur)
                values.append(f"0x{val:016x}")
            elif operand == "reg":
                val = buf[cur]
                cur += 1
                values.append(REGS.get(val, f"r{val}"))
            else:
                raise ValueError(f"unknown operand kind {operand}")
        ops = ", ".join(values)
        spacing = " " if ops else ""
        print(f"{pc:04x}: {mnemonic}{spacing}{ops}")
        pc = cur


def main():
    parser = argparse.ArgumentParser(description="Disassemble VM bytecode range")
    parser.add_argument("start", type=lambda x: int(x, 0))
    parser.add_argument("end", nargs="?", type=lambda x: int(x, 0))
    parser.add_argument("file", nargs="?", default="full_vmcode")
    args = parser.parse_args()
    buf = Path(args.file).read_bytes()
    disasm(buf, args.start, args.end)


if __name__ == "__main__":
    main()

1
python3 disasm_vm.py 0x5a9 0x6f4
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
05a9: setp1 0xe000
05ac: loadp1_off r0, 0x0010
05b0: mov r5, r0
05b3: push r5
05b5: mov_imm r5, 0x48f0e6421ac66dea
05bf: xor_imm r5, 0xffffffffffffffff
05c9: push r6
05cb: push r7
05cd: mov_imm r6, 0x0000000000000001
05d7: mov r7, r5
05da: and r7, r6
05dd: xor r5, r6
05e0: cmp_imm r7, 0x0000000000000000
05ea: je 0x05f6
05ed: shl r7, 0x01
05f0: mov r6, r7
05f3: jmp 0x05d7
05f6: pop r7
05f8: pop r6
05fa: push r6
05fc: push r7
05fe: mov r6, r5
0601: mov r7, r0
0604: and r7, r6
0607: xor r0, r6
060a: cmp_imm r7, 0x0000000000000000
0614: je 0x0620
0617: shl r7, 0x01
061a: mov r6, r7
061d: jmp 0x0601
0620: and_imm r0, 0xffffffffffffffff
062a: pop r7
062c: pop r6
062e: and_imm r0, 0xffffffffffffffff
0638: pop r5
063a: xor_imm r0, 0x5074d85b9194e696
0644: push r5
0646: mov_imm r5, 0x5566488c9c5cf234
0650: xor_imm r5, 0xffffffffffffffff
065a: push r6
065c: push r7
065e: mov_imm r6, 0x0000000000000001
0668: mov r7, r5
066b: and r7, r6
066e: xor r5, r6
0671: cmp_imm r7, 0x0000000000000000
067b: je 0x0687
067e: shl r7, 0x01
0681: mov r6, r7
0684: jmp 0x0668
0687: pop r7
0689: pop r6
068b: push r6
068d: push r7
068f: mov r6, r5
0692: mov r7, r0
0695: and r7, r6
0698: xor r0, r6
069b: cmp_imm r7, 0x0000000000000000
06a5: je 0x06b1
06a8: shl r7, 0x01
06ab: mov r6, r7
06ae: jmp 0x0692
06b1: and_imm r0, 0xffffffffffffffff
06bb: pop r7
06bd: pop r6
06bf: and_imm r0, 0xffffffffffffffff
06c9: pop r5
06cb: xor_imm r0, 0x8cb331163a92fc19
06d5: setp1 0x7200
06d8: mov_imm r1, 0x36b1cc9fe433713d
06e2: storep1 r1
06e4: push r0
06e6: mov_imm r0, 0x0000000000000008
06f0: addp1_reg r0
06f2: pop r0

伪C逻辑如下：

1
2
3
4
5
6
7
8
9
10
11
12
13
14
uint64_t inverse_transform(uint64_t y) {
    const uint64_t C1 = 0x48f0e6421ac66deaULL;
    const uint64_t K1 = 0x5074d85b9194e696ULL;
    const uint64_t C2 = 0x5566488c9c5cf234ULL;
    const uint64_t K2 = 0x8cb331163a92fc19ULL;
    const uint64_t MASK = 0xFFFFFFFFFFFFFFFFULL;

    uint64_t x3 = (y ^ K2);
    uint64_t x2 = (x3 + C2) & MASK;
    uint64_t x1 = (x2 ^ K1);
    uint64_t x  = (x1 + C1) & MASK;

    return x;
}

直接：

1
python3 disasm_vm.py 0x02be 0x0715
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
101
102
103
104
105
106
107
108
109
110
111
112
113
114
115
116
117
118
119
120
121
122
123
124
125
126
127
128
129
130
131
132
133
134
135
136
137
138
139
140
141
142
143
144
145
146
147
148
149
150
151
152
153
154
155
156
157
158
159
160
161
162
163
164
165
166
167
168
169
170
171
172
173
174
175
176
177
178
179
180
181
182
183
184
185
186
187
188
189
190
191
192
193
194
195
196
197
198
199
200
201
202
203
204
205
206
207
208
209
210
211
212
213
214
215
216
217
218
219
220
221
222
223
224
225
226
227
228
229
230
231
232
233
234
235
236
237
238
239
240
241
242
243
244
245
246
247
248
249
250
251
252
253
254
255
256
257
258
259
260
261
262
263
264
265
266
267
268
269
270
271
272
273
274
275
276
277
278
279
280
281
282
283
284
285
286
02be: push r0
02c0: push r1
02c2: push r2
02c4: push r3
02c6: push r4
02c8: push r5
02ca: push r6
02cc: push r7
02ce: mov r1, r0
02d1: shr r1, 0x20
02d4: and_imm r0, 0x00000000ffffffff
02de: loadp1 r2
02e0: push r0
02e2: mov_imm r0, 0x0000000000000008
02ec: addp1_reg r0
02ee: pop r0
02f0: loadp1 r3
02f2: push r0
02f4: mov_imm r0, 0x0000000000000008
02fe: push r5
0300: mov_imm r5, 0x0000000000000010
030a: xor_imm r5, 0xffffffffffffffff
0314: push r6
0316: push r7
0318: mov_imm r6, 0x0000000000000001
0322: mov r7, r5
0325: and r7, r6
0328: xor r5, r6
032b: cmp_imm r7, 0x0000000000000000
0335: je 0x0341
0338: shl r7, 0x01
033b: mov r6, r7
033e: jmp 0x0322
0341: pop r7
0343: pop r6
0345: push r6
0347: push r7
0349: mov r6, r5
034c: mov r7, r0
034f: and r7, r6
0352: xor r0, r6
0355: cmp_imm r7, 0x0000000000000000
035f: je 0x036b
0362: shl r7, 0x01
0365: mov r6, r7
0368: jmp 0x034c
036b: and_imm r0, 0xffffffffffffffff
0375: pop r7
0377: pop r6
0379: and_imm r0, 0xffffffffffffffff
0383: pop r5
0385: addp1_reg r0
0387: pop r0
0389: mov r4, r2
038c: mov r5, r3
038f: and_imm r2, 0x00000000ffffffff
0399: shr r4, 0x20
039c: and_imm r3, 0x00000000ffffffff
03a6: shr r5, 0x20
03a9: push r7
03ab: mov r7, r3
03ae: mov r3, r4
03b1: mov r4, r7
03b4: pop r7
03b6: mov_imm r6, 0x0000000000000000
03c0: push r7
03c2: mov r7, r0
03c5: push r6
03c7: push r7
03c9: mov r6, r7
03cc: mov r7, r7
03cf: shr r6, 0x08
03d2: shl r7, 0x18
03d5: xor r6, r7
03d8: and_imm r6, 0x00000000ffffffff
03e2: pop r7
03e4: mov r7, r6
03e7: pop r6
03e9: mov r0, r7
03ec: push r6
03ee: push r7
03f0: mov r6, r1
03f3: mov r7, r0
03f6: and r7, r6
03f9: xor r0, r6
03fc: cmp_imm r7, 0x0000000000000000
0406: je 0x0412
0409: shl r7, 0x01
040c: mov r6, r7
040f: jmp 0x03f3
0412: and_imm r0, 0xffffffffffffffff
041c: pop r7
041e: pop r6
0420: and_imm r0, 0x00000000ffffffff
042a: xor r0, r2
042d: and_imm r0, 0x00000000ffffffff
0437: mov r7, r1
043a: push r6
043c: push r7
043e: mov r6, r7
0441: mov r7, r7
0444: shl r6, 0x03
0447: shr r7, 0x1d
044a: xor r6, r7
044d: and_imm r6, 0x00000000ffffffff
0457: pop r7
0459: mov r7, r6
045c: pop r6
045e: mov r1, r7
0461: xor r1, r0
0464: and_imm r1, 0x00000000ffffffff
046e: pop r7
0470: cmp_imm r6, 0x000000000000001a
047a: je 0x054a
047d: push r0
047f: push r1
0481: mov r0, r3
0484: mov r1, r2
0487: mov r2, r6
048a: push r7
048c: mov r7, r0
048f: push r6
0491: push r7
0493: mov r6, r7
0496: mov r7, r7
0499: shr r6, 0x08
049c: shl r7, 0x18
049f: xor r6, r7
04a2: and_imm r6, 0x00000000ffffffff
04ac: pop r7
04ae: mov r7, r6
04b1: pop r6
04b3: mov r0, r7
04b6: push r6
04b8: push r7
04ba: mov r6, r1
04bd: mov r7, r0
04c0: and r7, r6
04c3: xor r0, r6
04c6: cmp_imm r7, 0x0000000000000000
04d0: je 0x04dc
04d3: shl r7, 0x01
04d6: mov r6, r7
04d9: jmp 0x04bd
04dc: and_imm r0, 0xffffffffffffffff
04e6: pop r7
04e8: pop r6
04ea: and_imm r0, 0x00000000ffffffff
04f4: xor r0, r2
04f7: and_imm r0, 0x00000000ffffffff
0501: mov r7, r1
0504: push r6
0506: push r7
0508: mov r6, r7
050b: mov r7, r7
050e: shl r6, 0x03
0511: shr r7, 0x1d
0514: xor r6, r7
0517: and_imm r6, 0x00000000ffffffff
0521: pop r7
0523: mov r7, r6
0526: pop r6
0528: mov r1, r7
052b: xor r1, r0
052e: and_imm r1, 0x00000000ffffffff
0538: pop r7
053a: mov r2, r1
053d: mov r3, r4
0540: mov r4, r5
0543: mov r5, r0
0546: pop r1
0548: pop r0
054a: inc r6
054c: cmp_imm r6, 0x000000000000001b
0556: je 0x055c
0559: jmp 0x03c0
055c: shl r1, 0x20
055f: push r6
0561: push r7
0563: mov r6, r1
0566: mov r7, r0
0569: and r7, r6
056c: xor r0, r6
056f: cmp_imm r7, 0x0000000000000000
0579: je 0x0585
057c: shl r7, 0x01
057f: mov r6, r7
0582: jmp 0x0566
0585: and_imm r0, 0xffffffffffffffff
058f: pop r7
0591: pop r6
0593: pop r7
0595: pop r6
0597: pop r5
0599: pop r4
059b: pop r3
059d: pop r2
059f: pop r1
05a1: pop r6
05a3: ret
05a4: store_call 0x20
05a6: jmp 0x0003
05a9: setp1 0xe000
05ac: loadp1_off r0, 0x0010
05b0: mov r5, r0
05b3: push r5
05b5: mov_imm r5, 0x48f0e6421ac66dea
05bf: xor_imm r5, 0xffffffffffffffff
05c9: push r6
05cb: push r7
05cd: mov_imm r6, 0x0000000000000001
05d7: mov r7, r5
05da: and r7, r6
05dd: xor r5, r6
05e0: cmp_imm r7, 0x0000000000000000
05ea: je 0x05f6
05ed: shl r7, 0x01
05f0: mov r6, r7
05f3: jmp 0x05d7
05f6: pop r7
05f8: pop r6
05fa: push r6
05fc: push r7
05fe: mov r6, r5
0601: mov r7, r0
0604: and r7, r6
0607: xor r0, r6
060a: cmp_imm r7, 0x0000000000000000
0614: je 0x0620
0617: shl r7, 0x01
061a: mov r6, r7
061d: jmp 0x0601
0620: and_imm r0, 0xffffffffffffffff
062a: pop r7
062c: pop r6
062e: and_imm r0, 0xffffffffffffffff
0638: pop r5
063a: xor_imm r0, 0x5074d85b9194e696
0644: push r5
0646: mov_imm r5, 0x5566488c9c5cf234
0650: xor_imm r5, 0xffffffffffffffff
065a: push r6
065c: push r7
065e: mov_imm r6, 0x0000000000000001
0668: mov r7, r5
066b: and r7, r6
066e: xor r5, r6
0671: cmp_imm r7, 0x0000000000000000
067b: je 0x0687
067e: shl r7, 0x01
0681: mov r6, r7
0684: jmp 0x0668
0687: pop r7
0689: pop r6
068b: push r6
068d: push r7
068f: mov r6, r5
0692: mov r7, r0
0695: and r7, r6
0698: xor r0, r6
069b: cmp_imm r7, 0x0000000000000000
06a5: je 0x06b1
06a8: shl r7, 0x01
06ab: mov r6, r7
06ae: jmp 0x0692
06b1: and_imm r0, 0xffffffffffffffff
06bb: pop r7
06bd: pop r6
06bf: and_imm r0, 0xffffffffffffffff
06c9: pop r5
06cb: xor_imm r0, 0x8cb331163a92fc19
06d5: setp1 0x7200
06d8: mov_imm r1, 0x36b1cc9fe433713d
06e2: storep1 r1
06e4: push r0
06e6: mov_imm r0, 0x0000000000000008
06f0: addp1_reg r0
06f2: pop r0
06f4: mov_imm r1, 0xf97646d69c84ebd8
06fe: storep1 r1
0700: setp1 0x7200
0703: call 0x20
0705: cmp_imm r0, 0xda19ba6b81c83f61
070f: je 0x0715
0712: call 0x01
0714: halt

我放在一起了

其实应该是

python3 disasm_vm.py 0x02be 0x055c，也就是 call-table 入口 0x20 所指向的那段字节码（起始 full_vmcode:0x02be，结束 0x05a3），文件里就是那次 call 0x20 的完整被调函数。

入口 full_vmcode:0x05a9–0x0714（用 python3 disasm_vm.py 0x5a9 0x714 可再现），它负责从 0xE010 取 key、做两次可逆的加/异或混淆、执行 Speck 调用并比较结果；2) 被调用的 call 0x20 代码，即 layer1_call20.asm 中 full_vmcode:0x02be–0x05a3 的那大段嵌套循环
（Speck64/128 实现）。把两段拼在一起就是“第一次处理”的完整指令流。

求解第一个key

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
101
102
103
104
105
106
#!/usr/bin/env python3
"""Model the outermost VM layer and recover the first 64-bit key.

The layer performs a couple of invertible 64-bit add/xor scramblings on the
user-controlled key and then runs a 27-round Speck64/128 encryption on the
result with a fixed 128-bit key.  The Speck output must equal the constant
`0xDA19BA6B81C83F61`, so we can invert the whole chain and recover the key.
"""

from __future__ import annotations

MASK32 = 0xFFFFFFFF
MASK64 = 0xFFFFFFFFFFFFFFFF
ROUNDS = 27

# Constants pulled directly from the first-layer bytecode near 0x05b0.
CONST_SUB_1 = 0x48F0_E642_1AC6_6DEA
CONST_SUB_2 = 0x5566_488C_9C5C_F234
CONST_XOR_1 = 0x5074_D85B_9194_E696
CONST_XOR_2 = 0x8CB3_3116_3A92_FC19

# Speck key material written to VM memory at 0x7200 before the call.
SPECK_KEY_WORDS = [
    0xE433_713D,
    0x36B1_CC9F,
    0x9C84_EBD8,
    0xF976_46D6,
]

# Ciphertext that the VM compares against after the Speck call.
TARGET_CT = 0xDA19_BA6B_81C8_3F61


def _rol32(x: int, r: int) -> int:
    return ((x << r) | (x >> (32 - r))) & MASK32


def _ror32(x: int, r: int) -> int:
    return ((x >> r) | ((x << (32 - r)) & MASK32)) & MASK32


def speck_round_keys(key_words: list[int]) -> list[int]:
    """Generate 27 round keys for Speck64/128 (matches the VM's key schedule)."""

    l = list(key_words[1:])
    k = key_words[0]
    keys: list[int] = []
    for i in range(ROUNDS):
        keys.append(k)
        idx = i % (len(key_words) - 1)
        val = (_ror32(l[idx], 8) + k) & MASK32
        val ^= i
        l[idx] = val
        k = (_rol32(k, 3) ^ val) & MASK32
    return keys


ROUND_KEYS = speck_round_keys(SPECK_KEY_WORDS)


def speck_encrypt_block(block: int) -> int:
    x = block & MASK32
    y = (block >> 32) & MASK32
    for k in ROUND_KEYS:
        x = (_ror32(x, 8) + y) & MASK32
        x ^= k
        y = _rol32(y, 3) ^ x
    return (y << 32) | x


def speck_decrypt_block(block: int) -> int:
    x = block & MASK32
    y = (block >> 32) & MASK32
    for k in reversed(ROUND_KEYS):
        y = _ror32(y ^ x, 3)
        x ^= k
        x = _rol32((x - y) & MASK32, 8)
    return (y << 32) | x


def layer1_forward(user_key: int) -> int:
    """Exact logic executed by the first layer before the comparison."""

    state = (user_key - CONST_SUB_1) & MASK64
    state ^= CONST_XOR_1
    state = (state - CONST_SUB_2) & MASK64
    state ^= CONST_XOR_2
    return speck_encrypt_block(state)


def solve_layer1() -> int:
    """Invert the layer to retrieve the 64-bit key expected by the VM."""

    state = speck_decrypt_block(TARGET_CT)
    state ^= CONST_XOR_2
    state = (state + CONST_SUB_2) & MASK64
    state ^= CONST_XOR_1
    state = (state + CONST_SUB_1) & MASK64
    return state


if __name__ == "__main__":
    key = solve_layer1()
    assert layer1_forward(key) == TARGET_CT
    print(f"first key = 0x{key:016x}")

运行后得到第三个key

1
0xa28f38bd0463522c

一些问题的解释：

定位首层片段

虚拟机执行前会用 0x80/0x81 idx/0x03 建好 call table，每条形如 … 80 01 A4 05 … 81 20 …。python3 disasm_vm.py 0x5a9 0x6f4 这个范围是通过搜索 0x81 0x20 得到 call index 0x20 的入口偏移 full_vmcode:0x05a4，从 setp1 0xe000 (full_vmcode:0x05a9) 起正好是最外层“取第 3 个 key 并处理”的主体，在那里能看到读取 0xE010、一串 mov_imm/xor_imm/“逐位加法”循环，再写入 0x7200 和 0x7208 后 call 0x20。

好像是rc4的东西

python3 disasm_vm.py 0x0116 0x02c0

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
101
102
103
104
105
106
107
0116: setp1 0x7100
0119: storep1 r0
011b: setp1 0x7000
011e: mov_imm r2, 0x0000000000000000
0128: storep1_idx8 r2, r2
012b: inc r2
012d: cmp_imm r2, 0x0000000000000100
0137: jne 0x0128
013a: mov_imm r2, 0x0000000000000000
0144: mov_imm r3, 0x0000000000000000
014e: mov_imm r7, 0x00000000000000ff
0158: setp1 0x7000
015b: loadp1_idx8 r5, r2
015e: mov r4, r2
0161: and_imm r4, 0x0000000000000007
016b: setp1 0x7100
016e: loadp1_idx8 r4, r4
0171: push r6
0173: push r7
0175: mov r6, r5
0178: mov r7, r3
017b: and r7, r6
017e: xor r3, r6
0181: cmp_imm r7, 0x0000000000000000
018b: je 0x0197
018e: shl r7, 0x01
0191: mov r6, r7
0194: jmp 0x0178
0197: and_imm r3, 0xffffffffffffffff
01a1: pop r7
01a3: pop r6
01a5: push r6
01a7: push r7
01a9: mov r6, r4
01ac: mov r7, r3
01af: and r7, r6
01b2: xor r3, r6
01b5: cmp_imm r7, 0x0000000000000000
01bf: je 0x01cb
01c2: shl r7, 0x01
01c5: mov r6, r7
01c8: jmp 0x01ac
01cb: and_imm r3, 0xffffffffffffffff
01d5: pop r7
01d7: pop r6
01d9: and r3, r7
01dc: setp1 0x7000
01df: loadp1_idx8 r6, r3
01e2: storep1_idx8 r6, r2
01e5: storep1_idx8 r5, r3
01e8: inc r2
01ea: cmp_imm r2, 0x0000000000000100
01f4: jne 0x0158
01f7: mov_imm r2, 0x0000000000000000
0201: mov_imm r3, 0x0000000000000000
020b: mov_imm r6, 0x0000000000000000
0215: cmp_imm r1, 0x0000000000000000
021f: je 0x02b7
0222: inc r2
0224: and r2, r7
0227: setp1 0x7000
022a: loadp1_idx8 r5, r2
022d: push r6
022f: push r7
0231: mov r6, r5
0234: mov r7, r3
0237: and r7, r6
023a: xor r3, r6
023d: cmp_imm r7, 0x0000000000000000
0247: je 0x0253
024a: shl r7, 0x01
024d: mov r6, r7
0250: jmp 0x0234
0253: and_imm r3, 0xffffffffffffffff
025d: pop r7
025f: pop r6
0261: and r3, r7
0264: loadp1_idx8 r0, r3
0267: storep1_idx8 r0, r2
026a: storep1_idx8 r5, r3
026d: push r6
026f: push r7
0271: mov r6, r0
0274: mov r7, r5
0277: and r7, r6
027a: xor r5, r6
027d: cmp_imm r7, 0x0000000000000000
0287: je 0x0293
028a: shl r7, 0x01
028d: mov r6, r7
0290: jmp 0x0274
0293: and_imm r5, 0xffffffffffffffff
029d: pop r7
029f: pop r6
02a1: and r5, r7
02a4: loadp1_idx8 r4, r5
02a7: loadp2_idx8 r5, r6
02aa: xor r5, r4
02ad: storep2_idx8 r5, r6
02b0: inc r6
02b2: dec r1
02b4: jmp 0x0215
02b7: ret
02b8: store_call 0x10
02ba: save_pc
02bb: jmp 0x05a4
02be: push r0

同时

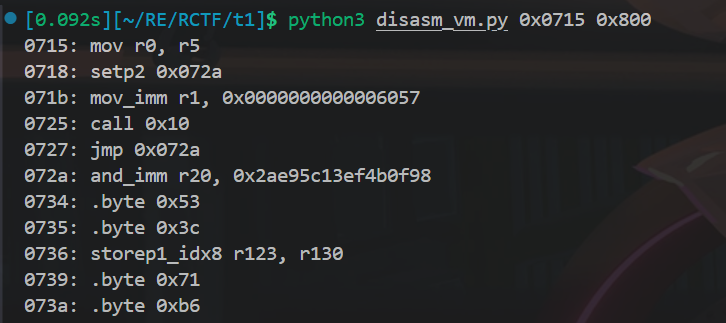

image-20251118203633026

1
2
3
4
5
0715: mov r0, r5          ; 恢复原始 key
0718: setp2 0x072a         ; 目标缓冲 = 0x072a
071b: mov_imm r1, 0x6057   ; 长度 0x6057 字节
0725: call 0x10           ; 调用 index 0x10 的子程序
0727: jmp 0x072a          ; 跳进刚写出来的新代码

call 0x10 的实现就在 full_vmcode:0x0200–0x02b7（用 python3 disasm_vm.py 0x0200 0x02c0 能看到完整指令），它是一个标准的 RC4 PRGA

在进入 VM 后的初始化（full_vmcode:0x0116–0x01f7）里，先把 0x7000 处的 S 盒置成 0…255，再用 0x7100 的 8 字节 key 做 RC4 KSA。寄存器在 sub_171D0 里全部 memset 成 0，所以 r0 起始为 0，setp1 0x7100; storep1 r0 把 8 个 0 写进 key 区，等价于一个 8 字节全 0 的 RC4 密钥。

call 0x10 里能看到典型的 PRGA：r2 = (r2+1)&0xFF，r3 = (r3+S[i])&0xFF，交换 S[i]/S[j]，取 keystream byte S[(S[i]+S[j])&0xFF]，最后与 ptr2 指向的密文异或，把结果写回 ptr2。循环次数就是 r1 = 0x6057。

那段 call 0x10 不是随便 XOR，而是一个 RC4 解密器。它在入口（full_vmcode:0x0116）把当前 r0 写到 0x7100 作为 8 字节密钥，然后做 KSA/PRGA 去 XOR ptr2 指向的密文。第一层通过校验后会把原始 key 放回 r0（0x0715: mov r0, r5），所以 RC4 的密钥其实就是我们刚算出的第一层 key 0xA28F38BD0463522C。

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
from pathlib import Path

start = 0x072a
length = 0x6057
full = Path("full_vmcode").read_bytes()
enc = full[start:start+length]
key = (0xA28F38BD0463522C).to_bytes(8, "little")

S = list(range(256)); j = 0
for i in range(256):
    j = (j + S[i] + key[i % len(key)]) & 0xFF
    S[i], S[j] = S[j], S[i]

i = j = 0
out = bytearray(length)
for idx in range(length):
    i = (i + 1) & 0xFF
    j = (j + S[i]) & 0xFF
    S[i], S[j] = S[j], S[i]
    k = S[(S[i] + S[j]) & 0xFF]
    out[idx] = enc[idx] ^ k

Path("stage2.bin").write_bytes(out)

python3 disasm_vm.py 0 0x200 stage2.bin

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
101
102
103
104
105
106
107
108
109
110
111
112
113
114
115
116
117
118
119
120
121
122
123
124
125
0000: setp1 0xe000
0003: loadp1_off r0, 0x0008
0007: mov r5, r0
000a: xor_imm r0, 0x95714c91bc8b306f
0014: xor_imm r0, 0x4303f92241dd9a9f
001e: xor_imm r0, 0x311e18c91413b58c
0028: push r5
002a: mov_imm r5, 0x8df6073d0dbbff09
0034: xor_imm r5, 0xffffffffffffffff
003e: push r6
0040: push r7
0042: mov_imm r6, 0x0000000000000001
004c: mov r7, r5
004f: and r7, r6
0052: xor r5, r6
0055: cmp_imm r7, 0x0000000000000000
005f: je 0x0795
0062: shl r7, 0x01
0065: mov r6, r7
0068: jmp 0x0776
006b: pop r7
006d: pop r6
006f: push r6
0071: push r7
0073: mov r6, r5
0076: mov r7, r0
0079: and r7, r6
007c: xor r0, r6
007f: cmp_imm r7, 0x0000000000000000
0089: je 0x07bf
008c: shl r7, 0x01
008f: mov r6, r7
0092: jmp 0x07a0
0095: and_imm r0, 0xffffffffffffffff
009f: pop r7
00a1: pop r6
00a3: and_imm r0, 0xffffffffffffffff
00ad: pop r5
00af: push r5
00b1: mov_imm r5, 0xee5744efe81e97b7
00bb: xor_imm r5, 0xffffffffffffffff
00c5: push r6
00c7: push r7
00c9: mov_imm r6, 0x0000000000000001
00d3: mov r7, r5
00d6: and r7, r6
00d9: xor r5, r6
00dc: cmp_imm r7, 0x0000000000000000
00e6: je 0x081c
00e9: shl r7, 0x01
00ec: mov r6, r7
00ef: jmp 0x07fd
00f2: pop r7
00f4: pop r6
00f6: push r6
00f8: push r7
00fa: mov r6, r5
00fd: mov r7, r0
0100: and r7, r6
0103: xor r0, r6
0106: cmp_imm r7, 0x0000000000000000
0110: je 0x0846
0113: shl r7, 0x01
0116: mov r6, r7
0119: jmp 0x0827
011c: and_imm r0, 0xffffffffffffffff
0126: pop r7
0128: pop r6
012a: and_imm r0, 0xffffffffffffffff
0134: pop r5
0136: push r6
0138: push r7
013a: mov_imm r6, 0xf8a82a8dbdb78c3f
0144: mov r7, r0
0147: and r7, r6
014a: xor r0, r6
014d: cmp_imm r7, 0x0000000000000000
0157: je 0x088d
015a: shl r7, 0x01
015d: mov r6, r7
0160: jmp 0x086e
0163: pop r7
0165: pop r6
0167: push r6
0169: push r7
016b: mov_imm r6, 0x58e8abfc7618f5fd
0175: mov r7, r0
0178: and r7, r6
017b: xor r0, r6
017e: cmp_imm r7, 0x0000000000000000
0188: je 0x08be
018b: shl r7, 0x01
018e: mov r6, r7
0191: jmp 0x089f
0194: pop r7
0196: pop r6
0198: xor_imm r0, 0x99d88c4fa4cc68aa
01a2: setp1 0x7200
01a5: mov_imm r1, 0x8d85b3156df9f721
01af: storep1 r1
01b1: push r0
01b3: mov_imm r0, 0x0000000000000008
01bd: addp1_reg r0
01bf: pop r0
01c1: mov_imm r1, 0x28e3d33340bc0884
01cb: storep1 r1
01cd: setp1 0x7200
01d0: call 0x20
01d2: cmp_imm r0, 0x659391a5dc3522b3
01dc: je 0x090c
01df: call 0x01
01e1: halt
01e2: mov r0, r5
01e5: setp2 0x0921
01e8: mov_imm r1, 0x0000000000005e60
01f2: call 0x10
01f4: jmp 0x0921
01f7: .byte 0xbc
01f8: .byte 0x38
01f9: .byte 0xcd
01fa: .byte 0x98
01fb: .byte 0xe7
01fc: addp1_reg r5
01fe: .byte 0x49
01ff: push r136

可以看到第二层流程几乎与第一层一致：取 key[1]（偏移 0xE008），依次 XOR/减去几个 64 位常量，最后 XOR 0x99d8…，把新的 Speck 代码写到 0x7200。然后同样 call 0x20（Speck64/128，密钥改成 0x8d85b3156df9f721 || 0x28e3d33340bc0884），比较 r0 是否等于 0x659391A5DC3522B3，通过后恢复原始
key，调用 call 0x10 以该 key 为 RC4 密钥，再去解 0x5E60 字节的第三层。

第二层和第一层一样，只是换了一组可逆算子和 Speck 密钥。把第一层 key（0xA28F38BD0463522C）当成 RC4 密钥再跑 call 0x10，0x072a 开始的 0x6057 字节就会解成 stage2.bin，从头的指令能读出下面的管线：

  • setp1 0xE000; loadp1_off r0, 0x0008 取第 2 个 64-bit key。
  • 依次执行 3 次 XOR（0x95714C91BC8B306F, 0x4303F92241DD9A9F, 0x311E18C91413B58C）。
  • 两次“sub gadget”把 0x8DF6073D0DBBFF09、0xEE5744EFE81E97B7 从寄存器里减掉（跟第一层一样是先取补码再加）。
  • 两次“add gadget”把 0xF8A82A8DBDB78C3F、0x58E8ABFC7618F5FD 加回去（这次不做补码，所以是加法）。
  • 再 XOR 0x99D88C4FA4CC68AA。
  • 像上一层一样在 0x7200/0x7208 写入 Speck64/128 的新 key（小端拆成 [0x6DF9F721, 0x8D85B315, 0x40BC0884, 0x28E3D333]），call 0x20，比较 r0 是否等于 0x659391A5DC3522B3，成功后把原 key 放回 r0，用它做 RC4 解出下一层。

把这一套流程都编码进了 test1.py，现在它既能描述第一层，也能逆出第二层。直接运行脚本：

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
101
102
103
104
105
106
107
108
109
110
111
112
113
114
115
116
117
118
119
120
121
122
123
124
125
126
127
128
129
130
131
132
133
134
135
136
137
138
139
140
141
142
143
144
145
146
147
148
149
150
151
152
153
154
155
156
#!/usr/bin/env python3
"""Model the outermost VM layer and recover the first 64-bit key.

The layer performs a couple of invertible 64-bit add/xor scramblings on the
user-controlled key and then runs a 27-round Speck64/128 encryption on the
result with a fixed 128-bit key.  The Speck output must equal the constant
`0xDA19BA6B81C83F61`, so we can invert the whole chain and recover the key.
"""

from __future__ import annotations

MASK32 = 0xFFFFFFFF
MASK64 = 0xFFFFFFFFFFFFFFFF
ROUNDS = 27

# Layer 1 constants pulled from bytecode around 0x05b0.
L1_CONST_SUB = (0x48F0_E642_1AC6_6DEA, 0x5566_488C_9C5C_F234)
L1_CONST_XOR = (0x5074_D85B_9194_E696, 0x8CB3_3116_3A92_FC19)

L1_SPECK_KEY = [
    0xE433_713D,
    0x36B1_CC9F,
    0x9C84_EBD8,
    0xF976_46D6,
]

L1_TARGET_CT = 0xDA19_BA6B_81C8_3F61

# Layer 2 constants read from stage2.bin.
L2_CONST_XOR_PREFIX = (
    0x9571_4C91_BC8B_306F,
    0x4303_F922_41DD_9A9F,
    0x311E_18C9_1413_B58C,
)
L2_CONST_SUB = (
    0x8DF6_073D_0DBB_FF09,
    0xEE57_44EF_E81E_97B7,
)
L2_CONST_ADD = (
    0xF8A8_2A8D_BDB7_8C3F,
    0x58E8_ABFC_7618_F5FD,
)
L2_CONST_XOR_SUFFIX = 0x99D8_8C4F_A4CC_68AA

L2_SPECK_KEY = [
    0x6DF9_F721,
    0x8D85_B315,
    0x40BC_0884,
    0x28E3_D333,
]

L2_TARGET_CT = 0x6593_91A5_DC35_22B3


def _rol32(x: int, r: int) -> int:
    return ((x << r) | (x >> (32 - r))) & MASK32


def _ror32(x: int, r: int) -> int:
    return ((x >> r) | ((x << (32 - r)) & MASK32)) & MASK32


def speck_round_keys(key_words: list[int]) -> list[int]:
    """Generate 27 round keys for Speck64/128 (matches the VM's key schedule)."""

    l = list(key_words[1:])
    k = key_words[0]
    keys: list[int] = []
    for i in range(ROUNDS):
        keys.append(k)
        idx = i % (len(key_words) - 1)
        val = (_ror32(l[idx], 8) + k) & MASK32
        val ^= i
        l[idx] = val
        k = (_rol32(k, 3) ^ val) & MASK32
    return keys


def speck_encrypt_block(block: int, round_keys: list[int]) -> int:
    x = block & MASK32
    y = (block >> 32) & MASK32
    for k in round_keys:
        x = (_ror32(x, 8) + y) & MASK32
        x ^= k
        y = _rol32(y, 3) ^ x
    return (y << 32) | x


def speck_decrypt_block(block: int, round_keys: list[int]) -> int:
    x = block & MASK32
    y = (block >> 32) & MASK32
    for k in reversed(round_keys):
        y = _ror32(y ^ x, 3)
        x ^= k
        x = _rol32((x - y) & MASK32, 8)
    return (y << 32) | x


L1_ROUND_KEYS = speck_round_keys(L1_SPECK_KEY)
L2_ROUND_KEYS = speck_round_keys(L2_SPECK_KEY)


def layer1_forward(user_key: int) -> int:
    """Exact logic executed by the first layer before the comparison."""

    state = (user_key - L1_CONST_SUB[0]) & MASK64
    state ^= L1_CONST_XOR[0]
    state = (state - L1_CONST_SUB[1]) & MASK64
    state ^= L1_CONST_XOR[1]
    return speck_encrypt_block(state, L1_ROUND_KEYS)


def solve_layer1() -> int:
    """Invert the layer to retrieve the 64-bit key expected by the VM."""

    state = speck_decrypt_block(L1_TARGET_CT, L1_ROUND_KEYS)
    state ^= L1_CONST_XOR[1]
    state = (state + L1_CONST_SUB[1]) & MASK64
    state ^= L1_CONST_XOR[0]
    state = (state + L1_CONST_SUB[0]) & MASK64
    return state


def layer2_forward(user_key: int) -> int:
    state = user_key
    for c in L2_CONST_XOR_PREFIX:
        state ^= c
    for c in L2_CONST_SUB:
        state = (state - c) & MASK64
    for c in L2_CONST_ADD:
        state = (state + c) & MASK64
    state ^= L2_CONST_XOR_SUFFIX
    return speck_encrypt_block(state, L2_ROUND_KEYS)


def solve_layer2() -> int:
    state = speck_decrypt_block(L2_TARGET_CT, L2_ROUND_KEYS)
    state ^= L2_CONST_XOR_SUFFIX
    for c in reversed(L2_CONST_ADD):
        state = (state - c) & MASK64
    for c in reversed(L2_CONST_SUB):
        state = (state + c) & MASK64
    for c in reversed(L2_CONST_XOR_PREFIX):
        state ^= c
    return state


if __name__ == "__main__":
    key1 = solve_layer1()
    assert layer1_forward(key1) == L1_TARGET_CT
    print(f"layer1 key = 0x{key1:016x}")

    key2 = solve_layer2()
    assert layer2_forward(key2) == L2_TARGET_CT
    print(f"layer2 key = 0x{key2:016x}")

layer1 key = 0xa28f38bd0463522c

layer2 key = 0xbf11b34d0ce941cc

所以后续步骤是：

  1. 用 Speck 逆向还原第二层常量，算出 key[1]（方法跟第一层脚本一样，换常量即可）。
  2. 拿这个 key 做 RC4，解 full_vmcode[0x0921 : 0x0921+0x5E60] 得到第三层，再继续同样的分析。

就是剥洋葱…逻辑差不多，要写个自动脚本

需要

解开key->获得下一段长度和偏移->rc4解密->识别更改的地方->解密得到key

这里解密测试碰上了个问题

也就是Rc4解密的时候也是嵌套的

也就是说第50层要经过50次解密，所以之前的rc4解密代码得换种写法

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
from pathlib import Path

start = 0x072a
length = 0x6057
full = Path("full_vmcode").read_bytes()
print(f"Full file length: {hex(len(full))}")

# 提取加密部分
enc = full[start:start+length]
print(f"Encrypted data length: {hex(len(enc))}")

# RC4解密
key = (0xA28F38BD0463522C).to_bytes(8, "little")

S = list(range(256)); j = 0
for i in range(256):
    j = (j + S[i] + key[i % len(key)]) & 0xFF
    S[i], S[j] = S[j], S[i]

i = j = 0
out = bytearray(length)
for idx in range(length):
    i = (i + 1) & 0xFF
    j = (j + S[i]) & 0xFF
    S[i], S[j] = S[j], S[i]
    k = S[(S[i] + S[j]) & 0xFF]
    out[idx] = enc[idx] ^ k

new_full = bytearray(full)
new_full[start:start+length] = out
Path("stage2.bin").write_bytes(new_full)

from pathlib import Path

start = 0x0921
length = 0x5E60
full = Path("stage2.bin").read_bytes()
print(f"Full file length: {hex(len(full))}")

# 提取加密部分
enc = full[start:start+length]
print(f"Encrypted data length: {hex(len(enc))}")

# RC4解密
key = (0xBF11B34D0CE941CC).to_bytes(8, "little")

S = list(range(256)); j = 0
for i in range(256):
    j = (j + S[i] + key[i % len(key)]) & 0xFF
    S[i], S[j] = S[j], S[i]

i = j = 0
out = bytearray(length)
for idx in range(length):
    i = (i + 1) & 0xFF
    j = (j + S[i]) & 0xFF
    S[i], S[j] = S[j], S[i]
    k = S[(S[i] + S[j]) & 0xFF]
    out[idx] = enc[idx] ^ k

new_full = bytearray(full)
new_full[start:start+length] = out
Path("stage3.bin").write_bytes(new_full)

final exp:

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
101
102
103
104
105
106
107
108
109
110
111
112
113
114
115
116
117
118
119
120
121
122
123
124
125
126
127
128
129
130
131
132
133
134
135
136
137
138
139
140
141
142
143
144
145
146
147
148
149
150
151
152
153
154
155
156
157
158
159
160
161
162
163
164
165
166
167
168
169
170
171
172
173
174
175
176
177
178
179
180
181
182
183
184
185
186
187
188
189
190
191
192
193
194
195
196
197
198
199
200
201
202
203
204
205
206
207
208
209
210
211
212
213
214
215
216
217
218
219
220
221
222
223
224
225
226
227
228
229
230
231
232
233
234
235
236
237
238
239
240
241
242
243
244
245
246
247
248
249
250
251
252
253
254
255
256
257
258
259
260
261
import struct
from pathlib import Path

MASK64 = 0xFFFFFFFFFFFFFFFF
MASK32 = 0xFFFFFFFF
ROUNDS = 27


def _rol32(x, r):
    return ((x << r) | (x >> (32 - r))) & MASK32


def _ror32(x, r):
    return ((x >> r) | ((x << (32 - r)) & MASK32)) & MASK32

OPCODES = {
    0x00: ("nop", []),
    0x01: ("jmp", ["imm16"]),
    0x02: ("jne", ["imm16"]),
    0x03: ("je", ["imm16"]),
    0x11: ("setp1", ["imm16"]),
    0x12: ("setp2", ["imm16"]),
    0x15: ("loadp1", ["reg"]),
    0x16: ("mov_imm", ["reg", "imm64"]),
    0x17: ("mov", ["reg", "reg"]),
    0x18: ("loadp1_off", ["reg", "imm16"]),
    0x19: ("storep1", ["reg"]),
    0x1f: ("addp1_reg", ["reg"]),
    0x25: ("and", ["reg", "reg"]),
    0x26: ("xor", ["reg", "reg"]),
    0x27: ("shl", ["reg", "imm8"]),
    0x29: ("xor_imm", ["reg", "imm64"]),
    0x2a: ("and_imm", ["reg", "imm64"]),
    0x32: ("cmp_imm", ["reg", "imm64"]),
    0x80: ("save_pc", []),
    0x81: ("store_call", ["imm8"]),
    0x82: ("call", ["imm8"]),
    0x83: ("ret", []),
    0x84: ("push", ["reg"]),
    0x85: ("pop", ["reg"]),
    0x90: ("print_byte", ["imm8"]),
    0xFF: ("halt", []),
}

REGS = {i: f"r{i}" for i in range(8)}


def read_u16(buf, off):
    return int.from_bytes(buf[off:off+2], "little"), off + 2


def read_u64(buf, off):
    return int.from_bytes(buf[off:off+8], "little"), off + 8


def decode(buf, off):
    opcode = buf[off]
    mnemonic, operands = OPCODES.get(opcode, (None, None))
    if mnemonic is None:
        raise ValueError(f"Unknown opcode 0x{opcode:02x} at {off}")
    cur = off + 1
    values = []
    for operand in operands:
        if operand == "imm16":
            val, cur = read_u16(buf, cur)
            values.append(val)
        elif operand == "imm8":
            val = buf[cur]
            cur += 1
            values.append(val)
        elif operand == "imm64":
            val, cur = read_u64(buf, cur)
            values.append(val)
        elif operand == "reg":
            val = buf[cur]
            cur += 1
            values.append(REGS.get(val, f"r{val}"))
        else:
            raise ValueError(f"Unknown operand {operand}")
    return mnemonic, values, cur


def speck_round_keys(words):
    l = list(words[1:])
    k = words[0]
    keys = []
    for i in range(ROUNDS):
        keys.append(k)
        idx = i % (len(words) - 1)
        val = (_ror32(l[idx], 8) + k) & MASK32
        val ^= i
        l[idx] = val
        k = (_rol32(k, 3) ^ val) & MASK32
    return keys


def speck_decrypt(ct, round_keys):
    x = ct & MASK32
    y = (ct >> 32) & MASK32
    for k in reversed(round_keys):
        y = _ror32(y ^ x, 3)
        x ^= k
        x = _rol32((x - y) & MASK32, 8)
    return (y << 32) | x


def rc4_decrypt(data, key_qword):
    key = key_qword.to_bytes(8, "little")
    S = list(range(256))
    j = 0
    key_len = len(key)
    for i in range(256):
        j = (j + S[i] + key[i % key_len]) & 0xFF
        S[i], S[j] = S[j], S[i]
    i = 0
    j = 0
    out = bytearray(len(data))
    for idx, byte in enumerate(data):
        i = (i + 1) & 0xFF
        j = (j + S[i]) & 0xFF
        S[i], S[j] = S[j], S[i]
        k = S[(S[i] + S[j]) & 0xFF]
        out[idx] = byte ^ k
    return bytes(out)


def skip_until_pop(buf, pos, reg):
    depth = 0
    while pos < len(buf):
        mnemonic, operands, nxt = decode(buf, pos)
        pos = nxt
        if mnemonic == "push" and operands[0] == reg:
            depth += 1
        elif mnemonic == "pop" and operands[0] == reg:
            if depth == 0:
                break
            depth -= 1
    return pos


def analyze_layer(buf):
    entry = buf.find(b"\x11\x00\xe0")
    if entry == -1:
        raise ValueError("setp1 0xE000 not found in layer")
    pos = entry
    last_setp1 = None
    collecting_speck = False
    speck_words = []
    operations = []
    info = {
        "key_offset": None,
        "target_ct": None,
        "next_offset": None,
        "next_length": None,
    }
    pending_add = False
    last_mov_r1 = None
    while pos < len(buf):
        mnemonic, operands, nxt = decode(buf, pos)
        if mnemonic == "setp1":
            last_setp1 = operands[0]
            if operands[0] == 0x7200 and len(speck_words) < 2:
                collecting_speck = True
        elif mnemonic == "push" and operands[0] == "r6":
            pending_add = True
        elif mnemonic == "push" and operands[0] == "r5":
            pending_add = False
        elif mnemonic == "loadp1_off" and last_setp1 == 0xE000 and operands[0] == "r0":
            info["key_offset"] = operands[1]
        elif mnemonic == "xor_imm" and operands[0] == "r0":
            operations.append(("xor", operands[1]))
        elif mnemonic == "mov_imm" and operands[0] == "r5":
            # check for subtract macro
            mnemonic2, operands2, nxt2 = decode(buf, nxt)
            if mnemonic2 == "xor_imm" and operands2[0] == "r5" and operands2[1] == MASK64:
                operations.append(("sub", operands[1]))
                pos = skip_until_pop(buf, nxt2, "r5")
                pending_add = False
                continue
        elif mnemonic == "mov_imm" and operands[0] == "r6":
            if operands[1] > 0xFFFF and pending_add:
                operations.append(("add", operands[1]))
                pos = skip_until_pop(buf, nxt, "r6")
                pending_add = False
                continue
        elif mnemonic == "storep1" and operands[0] == "r1" and collecting_speck:
            if last_mov_r1 is not None:
                speck_words.append(last_mov_r1)
                if len(speck_words) == 2:
                    collecting_speck = False
        elif mnemonic == "mov_imm" and operands[0] == "r1":
            last_mov_r1 = operands[1]
            if info["next_offset"] is not None and info["next_length"] is None and not collecting_speck:
                info["next_length"] = operands[1]
        elif mnemonic == "cmp_imm" and operands[0] == "r0":
            info["target_ct"] = operands[1]
        elif mnemonic == "setp2":
            # debug
            # print(f"setp2 at {hex(pos)} -> {hex(operands[0])}")
            info["next_offset"] = operands[0]
        elif mnemonic == "jmp" and info["next_offset"] is not None and operands[0] == info["next_offset"]:
            pos = nxt
            break
        pos = nxt
    info["operations"] = operations
    info["speck_words"] = speck_words
    return info


def invert_layer(info):
    if info["key_offset"] is None or info["target_ct"] is None or len(info["speck_words"]) != 2:
        raise ValueError("Incomplete layer info")
    key_words = []
    for qword in info["speck_words"]:
        key_words.append(qword & MASK32)
        key_words.append((qword >> 32) & MASK32)
    round_keys = speck_round_keys(key_words)
    state = speck_decrypt(info["target_ct"], round_keys)
    for op, val in reversed(info["operations"]):
        if op == "xor":
            state ^= val
        elif op == "sub":
            state = (state + val) & MASK64
        elif op == "add":
            state = (state - val) & MASK64
    return state


def main(max_layers: int = 50, dump_stages: bool = True):
    workspace = bytearray(Path("full_vmcode").read_bytes())
    offset = 0x5A9
    key_table = {}
    for layer in range(1, max_layers + 1):
        stage_view = workspace[offset:]
        info = analyze_layer(stage_view)
        key = invert_layer(info)
        key_index = info["key_offset"] // 8 if info["key_offset"] is not None else None
        print(f"Layer {layer}: key_index={key_index}, key=0x{key:016x}")
        if key_index is not None:
            key_table[key_index] = key
        if info["next_offset"] is None or info["next_length"] is None:
            break
        start = info["next_offset"]
        end = start + info["next_length"]
        if end > len(workspace):
            print("[!] Next layer exceeds VM code length, stopping.")
            break
        dec = rc4_decrypt(workspace[start:end], key)
        workspace[start:end] = dec
        if dump_stages:
            Path(f"stage{layer+1}.bin").write_bytes(workspace)
        offset = start
    if key_table:
        print("\nKeys in index order:")
        for idx in sorted(key_table):
            print(f"key[{idx:02d}] = 0x{key_table[idx]:016x}")


if __name__ == "__main__":
    main()

可以得到key

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
101
102
Layer 1: key_index=2, key=0xa28f38bd0463522c
Layer 2: key_index=1, key=0xbf11b34d0ce941cc
Layer 3: key_index=20, key=0xef320f9e6ae31520
Layer 4: key_index=17, key=0x36646367b78c2f91
Layer 5: key_index=48, key=0xa1570f48caceb3dd
Layer 6: key_index=29, key=0x497cff13eaa5bf76
Layer 7: key_index=8, key=0xcd05f91609d653fa
Layer 8: key_index=18, key=0x9eed7637cd5eaa26
Layer 9: key_index=31, key=0xa922933b0b315a10
Layer 10: key_index=30, key=0xd51ceddab7795459
Layer 11: key_index=41, key=0x4f749f6bbca2014c
Layer 12: key_index=43, key=0x9c73a6d3f711e66e
Layer 13: key_index=15, key=0xac1b4e2750778a01
Layer 14: key_index=47, key=0x5e68e47d3a360a80
Layer 15: key_index=32, key=0xcabd557ffa1df043
Layer 16: key_index=5, key=0xfe13c54ceb12fea8
Layer 17: key_index=7, key=0xad1f6be84bbb4680
Layer 18: key_index=14, key=0xb5e1534e1dc36c87
Layer 19: key_index=3, key=0x79ed5d84199dd9cb
Layer 20: key_index=38, key=0x8d4c8f2124957228
Layer 21: key_index=33, key=0xe0459b855188d045
Layer 22: key_index=0, key=0xba610b6c5d80c91a
Layer 23: key_index=28, key=0x7e1a125dcfa56359
Layer 24: key_index=9, key=0x55493aa141fbe86f
Layer 25: key_index=35, key=0xc01552dff3a12f67
Layer 26: key_index=26, key=0xf4d25540ed584887
Layer 27: key_index=12, key=0x5fcca9a9cb65130d
Layer 28: key_index=11, key=0xd8817dda43824d2c
Layer 29: key_index=42, key=0xb1e1adc831c8d567
Layer 30: key_index=22, key=0x1a9a0626a035fb9d
Layer 31: key_index=16, key=0xc8f82d07316dcd3b
Layer 32: key_index=4, key=0x4d9c56b2a1d77a0d
Layer 33: key_index=44, key=0x2ab305ec4e07b0b4
Layer 34: key_index=27, key=0xc12422512500c887
Layer 35: key_index=6, key=0x494a63fc85b9953a
Layer 36: key_index=49, key=0xd6ab1c9a18ebb936
Layer 37: key_index=13, key=0x6f3ed35da24dacfa
Layer 38: key_index=25, key=0x749e8082db34037d
Layer 39: key_index=19, key=0xff546a0085041459
Layer 40: key_index=46, key=0xc409de0e72c1029e
Layer 41: key_index=40, key=0x554fca602792e879
Layer 42: key_index=24, key=0x8a0bf5239eed75c4
Layer 43: key_index=21, key=0x1e00a4b9e25488f6
Layer 44: key_index=10, key=0x25bc9aff736b80a8
Layer 45: key_index=37, key=0x0e189fa829657913
Layer 46: key_index=36, key=0x0615548ece7312fb
Layer 47: key_index=23, key=0xe2f1eb0e5248cd2c
Layer 48: key_index=45, key=0x98a16d274bb044d2
Layer 49: key_index=34, key=0x82700d6f6a986873
Layer 50: key_index=39, key=0x451572c65bcb3425

Keys in index order:
key[00] = 0xba610b6c5d80c91a
key[01] = 0xbf11b34d0ce941cc
key[02] = 0xa28f38bd0463522c
key[03] = 0x79ed5d84199dd9cb
key[04] = 0x4d9c56b2a1d77a0d
key[05] = 0xfe13c54ceb12fea8
key[06] = 0x494a63fc85b9953a
key[07] = 0xad1f6be84bbb4680
key[08] = 0xcd05f91609d653fa
key[09] = 0x55493aa141fbe86f
key[10] = 0x25bc9aff736b80a8
key[11] = 0xd8817dda43824d2c
key[12] = 0x5fcca9a9cb65130d
key[13] = 0x6f3ed35da24dacfa
key[14] = 0xb5e1534e1dc36c87
key[15] = 0xac1b4e2750778a01
key[16] = 0xc8f82d07316dcd3b
key[17] = 0x36646367b78c2f91
key[18] = 0x9eed7637cd5eaa26
key[19] = 0xff546a0085041459
key[20] = 0xef320f9e6ae31520
key[21] = 0x1e00a4b9e25488f6
key[22] = 0x1a9a0626a035fb9d
key[23] = 0xe2f1eb0e5248cd2c
key[24] = 0x8a0bf5239eed75c4
key[25] = 0x749e8082db34037d
key[26] = 0xf4d25540ed584887
key[27] = 0xc12422512500c887
key[28] = 0x7e1a125dcfa56359
key[29] = 0x497cff13eaa5bf76
key[30] = 0xd51ceddab7795459
key[31] = 0xa922933b0b315a10
key[32] = 0xcabd557ffa1df043
key[33] = 0xe0459b855188d045
key[34] = 0x82700d6f6a986873
key[35] = 0xc01552dff3a12f67
key[36] = 0x0615548ece7312fb
key[37] = 0x0e189fa829657913
key[38] = 0x8d4c8f2124957228
key[39] = 0x451572c65bcb3425
key[40] = 0x554fca602792e879
key[41] = 0x4f749f6bbca2014c
key[42] = 0xb1e1adc831c8d567
key[43] = 0x9c73a6d3f711e66e
key[44] = 0x2ab305ec4e07b0b4
key[45] = 0x98a16d274bb044d2
key[46] = 0xc409de0e72c1029e
key[47] = 0x5e68e47d3a360a80
key[48] = 0xa1570f48caceb3dd
key[49] = 0xd6ab1c9a18ebb936

最终flag

image-20251119101824362

需要识别0x90(其实不用我们直接根据最后的信息0x6706是offset，就可以打印出来了)

python3 disasm_vm.py 0x6706 0x6800 stage51.bin

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
6706: print_byte 0x52
6708: print_byte 0x43
670a: print_byte 0x54
670c: print_byte 0x46
670e: print_byte 0x7b
6710: print_byte 0x56
6712: print_byte 0x4d
6714: print_byte 0x5f
6716: print_byte 0x41
6718: print_byte 0x4c
671a: print_byte 0x55
671c: print_byte 0x5f
671e: print_byte 0x53
6720: print_byte 0x4d
6722: print_byte 0x43
6724: print_byte 0x5f
6726: print_byte 0x52
6728: print_byte 0x43
672a: print_byte 0x34
672c: print_byte 0x5f
672e: print_byte 0x53
6730: print_byte 0x50
6732: print_byte 0x45
6734: print_byte 0x43
6736: print_byte 0x4b
6738: print_byte 0x21
673a: print_byte 0x5f
673c: print_byte 0x35
673e: print_byte 0x39
6740: print_byte 0x33
6742: print_byte 0x65
6744: print_byte 0x62
6746: print_byte 0x36
6748: print_byte 0x30
674a: print_byte 0x37
674c: print_byte 0x39
674e: print_byte 0x64
6750: print_byte 0x32
6752: print_byte 0x64
6754: print_byte 0x61
6756: print_byte 0x36
6758: print_byte 0x63
675a: print_byte 0x31
675c: print_byte 0x38
675e: print_byte 0x37
6760: print_byte 0x65
6762: print_byte 0x64
6764: print_byte 0x34
6766: print_byte 0x36
6768: print_byte 0x32
676a: print_byte 0x62
676c: print_byte 0x30
676e: print_byte 0x33
6770: print_byte 0x33
6772: print_byte 0x66
6774: print_byte 0x65
6776: print_byte 0x65
6778: print_byte 0x33
677a: print_byte 0x34
677c: print_byte 0x7d
677e: print_byte 0x0a
6780: halt
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
# 所有 print_byte 里的十六进制字节
bytes_hex = [
    0x52, 0x43, 0x54, 0x46, 0x7b,
    0x56, 0x4d, 0x5f, 0x41, 0x4c, 0x55, 0x5f,
    0x53, 0x4d, 0x43, 0x5f,
    0x52, 0x43, 0x34, 0x5f,
    0x53, 0x50, 0x45, 0x43, 0x4b, 0x21, 0x5f,
    0x35, 0x39, 0x33, 0x65, 0x62, 0x36, 0x30, 0x37,
    0x39, 0x64, 0x32, 0x64, 0x61, 0x36, 0x63, 0x31,
    0x38, 0x37, 0x65, 0x64, 0x34, 0x36, 0x32, 0x62,
    0x30, 0x33, 0x33, 0x66, 0x65, 0x65, 0x33, 0x34,
    0x7d
]

flag = ''.join(chr(b) for b in bytes_hex)
print(flag)

RCTF{VM_ALU_SMC_RC4_SPECK!_593eb6079d2da6c187ed462b033fee34}
