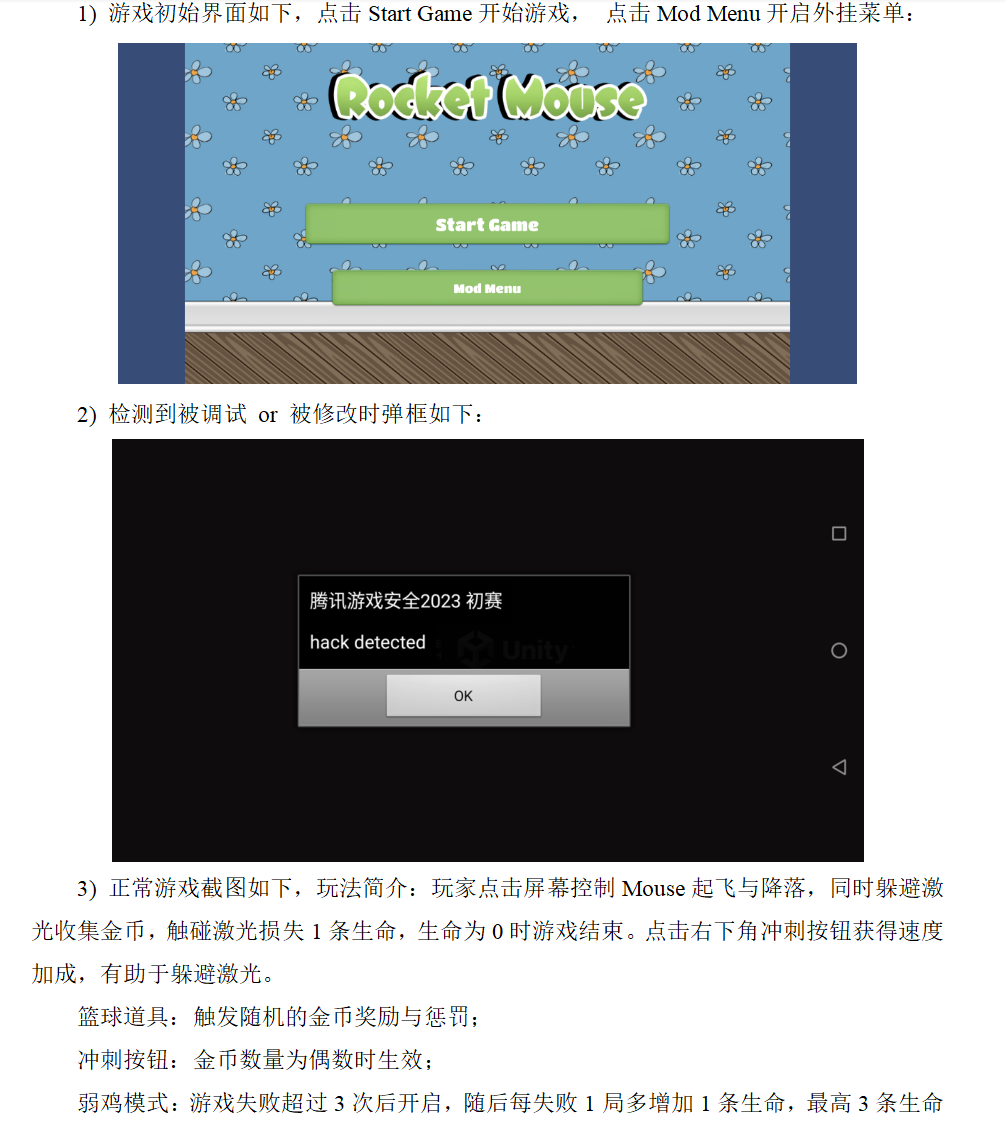

2023腾讯游戏安全竞赛Andorid初赛

dump

dump so我使用的是gc修改器可以dump

具体操作参考https://blog.csdn.net/qq_49619863/article/details/131155604

当然用frida也行

var target_so = "libil2cpp.so";
var path = "/data/data/com.com.sec2023.rocketmouse.mouse/";

function dump_so(so_name) {
    var libso = Process.getModuleByName(so_name);
    console.log("[name]:", libso.name);
    console.log("[base]:", libso.base);
    console.log("[size]:", ptr(libso.size));
    console.log("[path]:", libso.path);
    var file_path = path + libso.name + "_" + libso.base + "_" + ptr(libso.size) + ".so";
    var file_handle = new File(file_path, "wb");
    if (file_handle && file_handle != null) {
        Memory.protect(ptr(libso.base), libso.size, 'r--');
        var libso_buffer = ptr(libso.base).readByteArray(libso.size);
        file_handle.write(libso_buffer);
        file_handle.flush();
        file_handle.close();
        console.log("[dump]:", file_path);
    }
}

// dump_so(target_so);

il2cpp.so明显混淆加密

需要dumpso 文件，使用常规方法il2cppdumper 无法成功

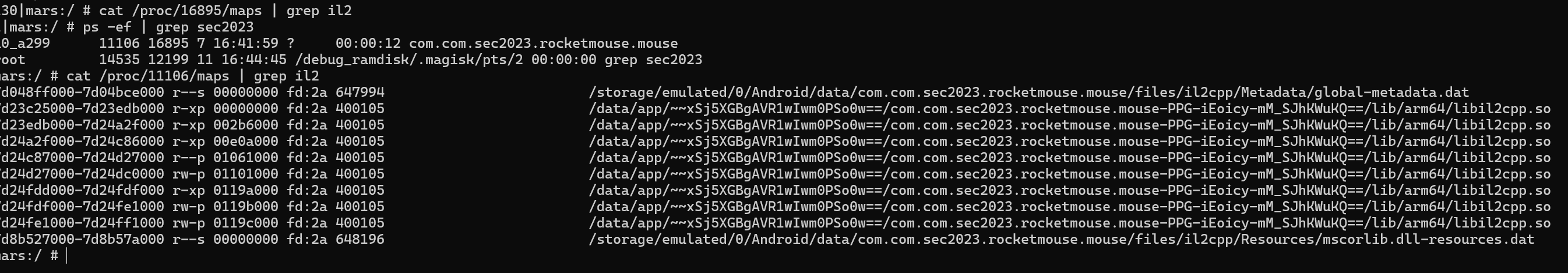

1	7d23c25000-7d24ff1000

方案一: sofixer (手修elf)

用sofixer还是不能直接用il2cppdumper

问题1：运行时重定位未还原

ELF 动态链接器加载 SO 时，会根据 .rela.dyn 中的重定位表修改数据段中的指针。dump 出来的文件保留的是加载后的绝对地址。SoFixer 本应修复这个问题，但没有生效。

修复遍历 .rela.dyn（108,725 条）和 .rela.plt（512 条）中所有 R_AARCH64_RELATIVE 类型的重定位条目，对每个目标地址的值减去基地址 0x7d23c25000

1
2
3

val = read(r_offset)
if val >= BASE_ADDR:
    write(r_offset, val - BASE_ADDR)

共修复了 108865个指针

问题2：Section Headers 损坏

SoFixer 重建的 section headers 质量很差：

.rela.plt 类型标记为 REL 而不是 RELA
section 名字合并成了 .text&ARM.extab
缺少 .rodata、.got、.data.rel.ro、il2cpp 等关键 section

Il2CppDumper 需要正确的section信息来定位数据。

修复：从原始 libil2cpp.so 中移植完整的 27 个 section headers，并调整 sh_offset

原始文件: sh_offset = VA - 0x1000 (因为 LOAD 段的 p_offset ≠ p_vaddr)

内存dump: sh_offset = VA (因为 dump 中文件偏移 == 虚拟地址),所以对每个带 SHF_ALLOC 标志的 section，设置 sh_offset = sh_addr。

问题 3：Il2CppType.data 被运行时替换（CLASS/VALUETYPE）

这是最核心的问题。IL2CPP 引擎在初始化时，会通过代码（不是 RELA 重定位）把每个 Il2CppType 结构体的 data 字段从编译期的整数索引替换为运行时的堆指针：

struct Il2CppType {
    union {
        TypeDefinitionIndex klassIndex;  // 编译期: 小整数, 如 0x7fc
        Il2CppClass* klass;              // 运行时: 堆指针, 如 0x7d04b64d28
    } data;
    uint32_t attrs:16, type:8, ...;
};

Il2CppDumper需要data 是编译期的索引值，但 dump 出来的是运行时指针，导致数组越界崩溃。

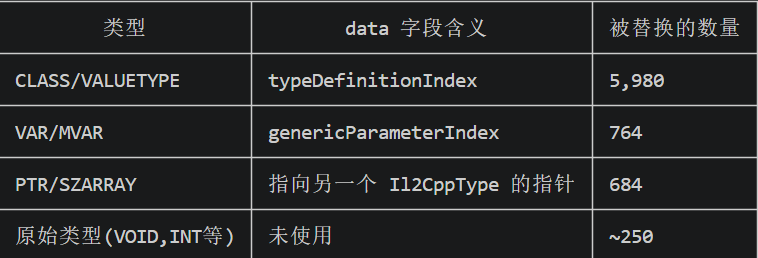

问题 4：不只是 CLASS/VALUETYPE

分析发现几乎所有类型的 data 都被替换了

仅从 metadata 反推只能修复 CLASS/VALUETYPE，无法覆盖全部。

最终方案从原始 SO 直接复制

Il2CppType 结构体位于 .data 段（VA 0x1102000~~0x119A370），不在被加密的 il2cpp段（VA0x463474~~0xC4E42C）中。

这意味着原始 libil2cpp.so 中的 Il2CppType.data 字段是明文可读的正确值

原始文件中 VA 0x1139780 的 Il2CppType:data = 0x82 (genericParameterIndex, 正确)

type = 0x1e (MVAR)
  dump 文件中同一位置:
    data = 0x7d04b05498 (运行时堆指针, 错误!)
    type = 0x1e (MVAR)

只需做一个地址转换（原始文件 file_offset = VA - 0x1000），就能从原始 SO 读取所有 10,472 个类型条目的正确 data 值，覆盖写入 dump 文件。共恢复了 6,980 个被篡改的字段。

中和 RELA 条目

Il2CppDumper 启动时会 Applying relocations——读取 RELA 表并重新应用。其中 3,492 条 R_AARCH64_RELATIVE 的目标地址恰好是 Il2CppType.data 字段，会把我们恢复的值再次覆盖为 RELA 中的 addend（一个 VA 指针）。

修复将这 3,492 条 RELA 的 r_info 设为 0（R_AARCH64_NONE），使其无效化。

总结流程

内存 dump (.bin)
    │
    ├─ SoFixer → il2cpp.so (headers 修复不完整)
    │
    └─ fix_final.py 四步修复:
         ① 重定位还原: 108,865 个指针 - BASE_ADDR
         ② Il2CppType.data 恢复: 从原始 SO 复制 6,980 个字段
         ③ RELA 中和: 禁用 3,492 条会覆盖类型数据的重定位
         ④ Section headers 移植: 从原始 SO 复制 27 个正确的 section
              │
              ▼

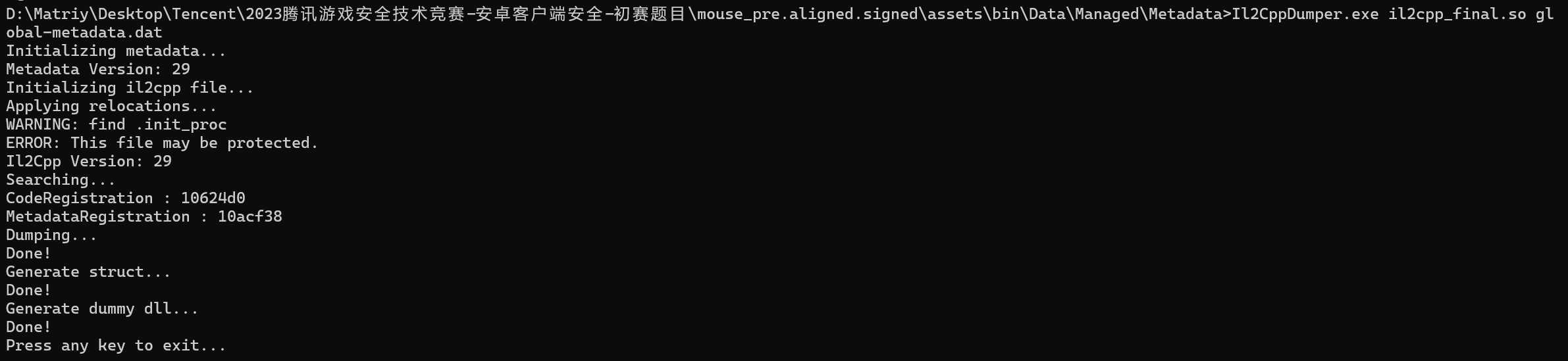

         il2cpp_final.so  ──→  Il2CppDumper 成功

恢复代码：

import struct

DUMP_SO = "il2cpp.so"       # SoFixer output
ORIG_SO = "libil2cpp.so"    # Original (il2cpp section encrypted, but .data is not)
META_FILE = "global-metadata.dat"
OUTPUT_FILE = "il2cpp_final.so"
BASE_ADDR = 0x7d23c25000

R_AARCH64_RELATIVE = 0x403
R_AARCH64_GLOB_DAT = 0x401
R_AARCH64_JUMP_SLOT = 0x402
R_AARCH64_ABS64 = 0x101

def main():
    print("[*] Reading files...")
    with open(DUMP_SO, 'rb') as f:
        so = bytearray(f.read())
    with open(ORIG_SO, 'rb') as f:
        orig = f.read()

    so_size = len(so)
    orig_size = len(orig)

    def u64(d, off):
        return struct.unpack_from('<Q', d, off)[0]
    def w64(d, off, v):
        struct.pack_into('<Q', d, off, v)
    def u32(d, off):
        return struct.unpack_from('<I', d, off)[0]

    # Build VA -> file offset mapping for original SO
    orig_phoff = u64(orig, 32)
    orig_phentsize = struct.unpack_from('<H', orig, 54)[0]
    orig_phnum = struct.unpack_from('<H', orig, 56)[0]

    orig_segments = []
    for i in range(orig_phnum):
        ph = orig_phoff + i * orig_phentsize
        p_type = u32(orig, ph)
        p_offset = u64(orig, ph + 8)
        p_vaddr = u64(orig, ph + 16)
        p_filesz = u64(orig, ph + 32)
        if p_type == 1 and p_filesz > 0:  # PT_LOAD
            orig_segments.append((p_vaddr, p_offset, p_filesz))
            print(f"  LOAD: VA 0x{p_vaddr:x}, offset 0x{p_offset:x}, filesz 0x{p_filesz:x}, delta=0x{p_vaddr - p_offset:x}")

    def va_to_orig_offset(va):
        for seg_va, seg_off, seg_filesz in orig_segments:
            if seg_va <= va < seg_va + seg_filesz:
                return va - seg_va + seg_off
        return None

    # ============= STEP 1: Fix relocations =============
    print("\n[*] Step 1: Fixing relocations...")
    dyn_offset = 0x10e0290
    rela_offset = rela_size = jmprel_offset = pltrelsz = None
    i = 0
    while True:
        tag = u64(so, dyn_offset + i * 16)
        val = u64(so, dyn_offset + i * 16 + 8)
        if tag == 0: break
        if tag == 7: rela_offset = val
        elif tag == 8: rela_size = val
        elif tag == 23: jmprel_offset = val
        elif tag == 2: pltrelsz = val
        i += 1

    fixed_relocs = 0
    def fix_rela_section(offset, size):
        nonlocal fixed_relocs
        for j in range(size // 24):
            ent = offset + j * 24
            if ent + 24 > so_size: break
            r_offset = u64(so, ent)
            r_info = u64(so, ent + 8)
            r_type = r_info & 0xffffffff
            if r_type in (R_AARCH64_RELATIVE, R_AARCH64_GLOB_DAT, R_AARCH64_JUMP_SLOT, R_AARCH64_ABS64):
                if r_offset < so_size:
                    val = u64(so, r_offset)
                    if val >= BASE_ADDR and val < BASE_ADDR + so_size:
                        w64(so, r_offset, val - BASE_ADDR)
                        fixed_relocs += 1

    fix_rela_section(rela_offset, rela_size)
    fix_rela_section(jmprel_offset, pltrelsz)

    # Fix init/fini arrays
    for arr_off, arr_size in [(0x13cb6b0, 0xc8), (0x10624a8, 0x10)]:
        for j in range(0, arr_size, 8):
            off = arr_off + j
            if off + 8 <= so_size:
                val = u64(so, off)
                if val >= BASE_ADDR and val < BASE_ADDR + so_size:
                    w64(so, off, val - BASE_ADDR)
                    fixed_relocs += 1

    print(f"  Fixed {fixed_relocs} relocated pointers")

    # ============= STEP 2: Restore ALL Il2CppType.data from original =============
    print("\n[*] Step 2: Restoring Il2CppType.data from original SO...")

    types_ptr = 0x10ba9f8
    types_count = 10472

    restored = 0
    failed = 0

    for i in range(types_count):
        type_va = u64(so, types_ptr + i * 8)
        if type_va == 0 or type_va >= so_size - 12:
            continue

        # Find original data for this Il2CppType
        orig_off = va_to_orig_offset(type_va)
        if orig_off is None or orig_off + 12 > orig_size:
            failed += 1
            continue

        # Read original data field (first 8 bytes of Il2CppType)
        orig_data = u64(orig, orig_off)
        curr_data = u64(so, type_va)

        # Also verify type enum matches
        orig_type_enum = orig[orig_off + 10]
        dump_type_enum = so[type_va + 10]

        if orig_type_enum != dump_type_enum:
            # Type enum mismatch - something is wrong, skip
            failed += 1
            if failed <= 5:
                print(f"  [!] types[{i}] @ VA 0x{type_va:x}: type mismatch orig=0x{orig_type_enum:02x} dump=0x{dump_type_enum:02x}")
            continue

        if curr_data != orig_data:
            w64(so, type_va, orig_data)
            restored += 1

    print(f"  Restored {restored} Il2CppType.data fields")
    if failed > 0:
        print(f"  Failed/skipped: {failed}")

    # ============= STEP 3: Neutralize RELA targeting Il2CppType.data =============
    print("\n[*] Step 3: Neutralizing RELA entries targeting Il2CppType.data...")

    type_addrs = set()
    for i in range(types_count):
        type_va = u64(so, types_ptr + i * 8)
        if type_va > 0 and type_va < so_size - 12:
            type_addrs.add(type_va)

    neutralized = 0
    for j in range(rela_size // 24):
        ent = rela_offset + j * 24
        if ent + 24 > so_size: break
        r_offset = u64(so, ent)
        r_info = u64(so, ent + 8)
        r_type = r_info & 0xffffffff
        if r_type == R_AARCH64_RELATIVE and r_offset in type_addrs:
            w64(so, ent, 0)
            w64(so, ent + 8, 0)
            w64(so, ent + 16, 0)
            neutralized += 1

    print(f"  Neutralized {neutralized} RELA entries")

    # ============= STEP 4: Transplant section headers =============
    print("\n[*] Step 4: Transplanting section headers...")

    orig_shoff = u64(orig, 40)
    orig_shentsize = struct.unpack_from('<H', orig, 58)[0]
    orig_shnum = struct.unpack_from('<H', orig, 60)[0]
    orig_shstrndx = struct.unpack_from('<H', orig, 62)[0]

    orig_sections = []
    for j in range(orig_shnum):
        sh = bytearray(orig[orig_shoff + j * orig_shentsize : orig_shoff + (j+1) * orig_shentsize])
        orig_sections.append(sh)

    shstrtab_sh = orig_sections[orig_shstrndx]
    shstrtab_offset = u64(shstrtab_sh, 24)
    shstrtab_size = u64(shstrtab_sh, 32)
    shstrtab_data = orig[shstrtab_offset : shstrtab_offset + shstrtab_size]

    for j in range(orig_shnum):
        sh = orig_sections[j]
        sh_type = u32(sh, 4)
        sh_flags = u64(sh, 8)
        sh_addr = u64(sh, 16)
        if sh_type != 0 and (sh_flags & 0x2):
            w64(sh, 24, sh_addr)

    while len(so) % 8 != 0:
        so.append(0)
    new_shstrtab_off = len(so)
    so.extend(shstrtab_data)
    w64(orig_sections[orig_shstrndx], 24, new_shstrtab_off)

    for j in range(orig_shnum):
        sh = orig_sections[j]
        sh_type = u32(sh, 4)
        sh_flags = u64(sh, 8)
        if sh_type == 1 and not (sh_flags & 0x2):
            old_off = struct.unpack_from('<Q', orig, orig_shoff + j * orig_shentsize + 24)[0]
            old_sz = struct.unpack_from('<Q', orig, orig_shoff + j * orig_shentsize + 32)[0]
            if old_off + old_sz <= orig_size:
                while len(so) % 8 != 0:
                    so.append(0)
                new_off = len(so)
                so.extend(orig[old_off : old_off + old_sz])
                w64(orig_sections[j], 24, new_off)

    while len(so) % 16 != 0:
        so.append(0)
    new_shoff = len(so)
    for sh in orig_sections:
        so.extend(sh)

    struct.pack_into('<Q', so, 40, new_shoff)
    struct.pack_into('<H', so, 58, orig_shentsize)
    struct.pack_into('<H', so, 60, orig_shnum)
    struct.pack_into('<H', so, 62, orig_shstrndx)

    # ============= DONE =============
    with open(OUTPUT_FILE, 'wb') as f:
        f.write(so)

    # Verification
    print(f"\n[*] Verification:")
    type_names = {
        0x11: 'VALUETYPE', 0x12: 'CLASS', 0x13: 'VAR', 0x1e: 'MVAR',
        0x0f: 'PTR', 0x1d: 'SZARRAY', 0x15: 'GENERICINST',
    }
    bad_total = 0
    for i in range(types_count):
        tp = u64(so, types_ptr + i * 8)
        if tp == 0 or tp >= len(so) - 12: continue
        te = so[tp + 10]
        data = u64(so, tp)

        if te in (0x11, 0x12):  # CLASS/VALUETYPE - should be small index
            if data >= 3555:
                bad_total += 1
        elif te in (0x13, 0x1e):  # VAR/MVAR - should be small index
            if data >= 10000:
                bad_total += 1
        elif te in (0x0f, 0x1d):  # PTR/SZARRAY - should be valid pointer
            if data >= so_size or data == 0:
                bad_total += 1

    print(f"  Bad type entries remaining: {bad_total}")
    print(f"\n[*] Written to {OUTPUT_FILE}")
    print(f"[*] Run: Il2CppDumper.exe {OUTPUT_FILE} {META_FILE}")

if __name__ == '__main__':
    main()

手动还原重定位——遍历 10 万条 RELA，逐个减基地址
手动恢复 Il2CppType.data——运行时被引擎替换成堆指针，从原始 SO 逆向复原 6980 个字段
手动中和 RELA 条目——防止 Il2CppDumper 重复应用重定位覆盖修复
手动移植 section headers——从原始 SO 搬 27 个 section header 并修正偏移

其实还真有大神纯手修elf

[原创]2023腾讯游戏安全竞赛初赛题解(安卓)

方案二: 对比分析

其实方案一的最后也意识到这个问题了，也做了类似的处理

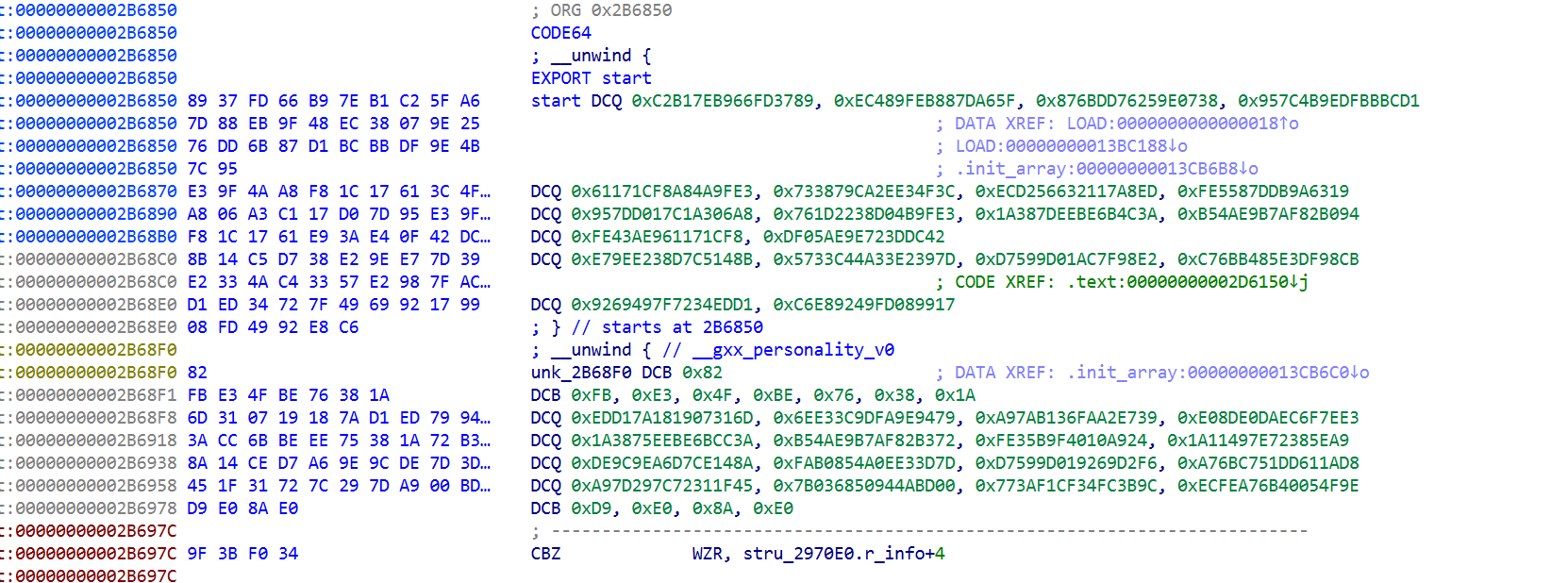

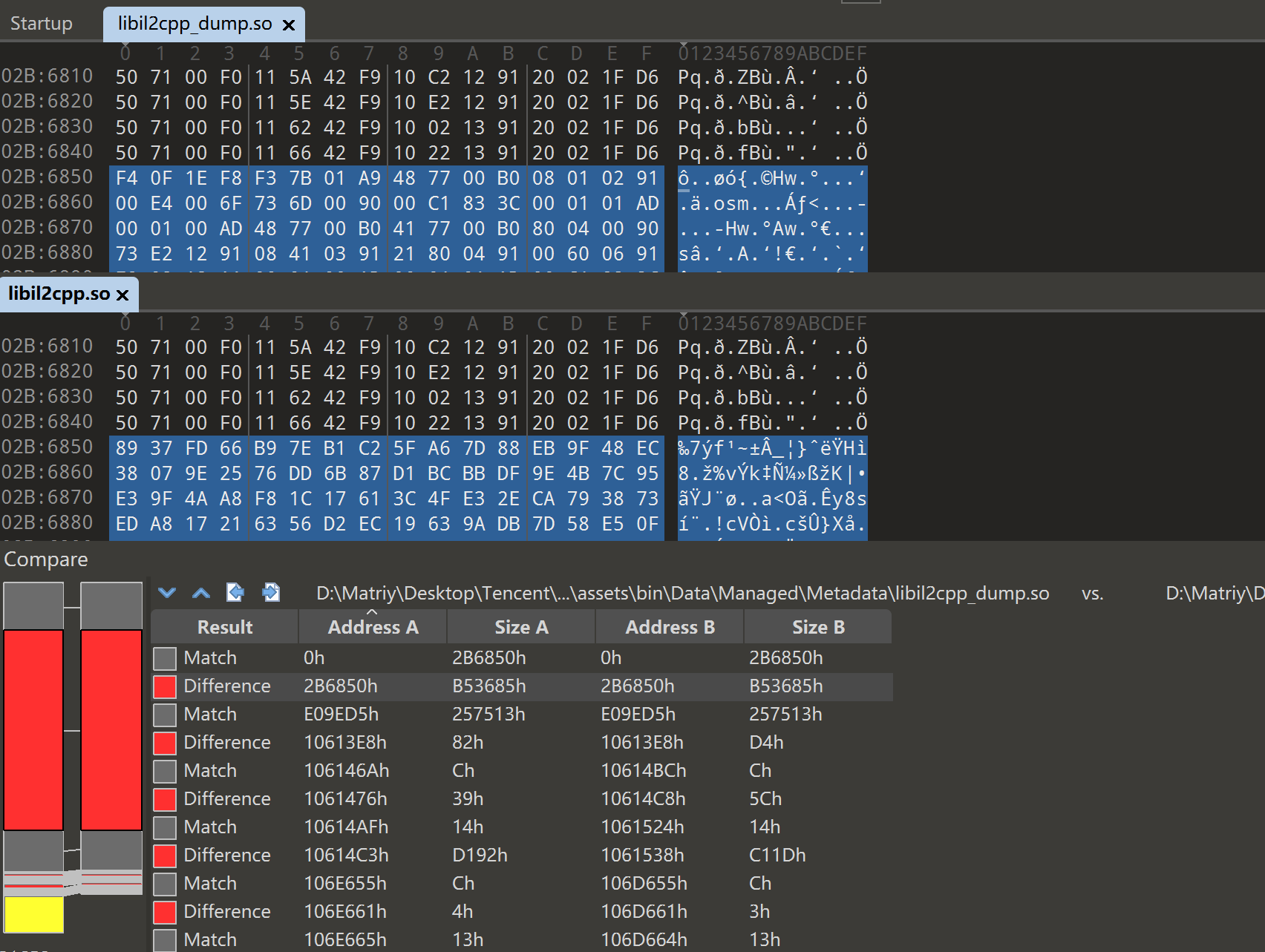

因此用010editor对apk中的so和dump出来的so进行比对，补上尾部的重定位表

[原创] 腾讯游戏安全技术竞赛2023 安卓客户端初赛WriteUp-Android安全-看雪安全社区｜专业技术交流与安全研究论坛

直接把主要difference这段复制到libil2cpp.so(原来的)

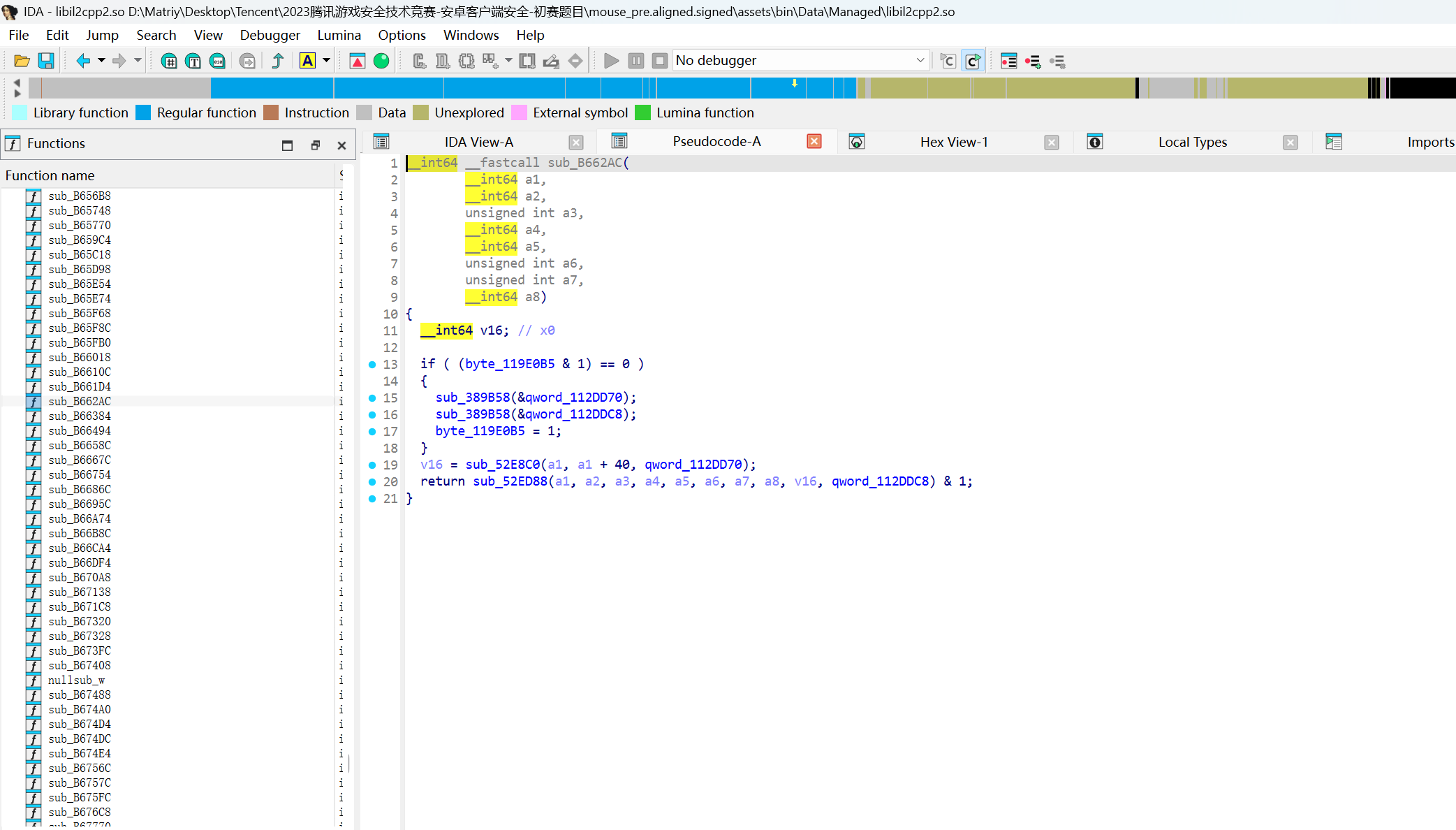

打开可以识别了

后面还有一些difference不用管，因为 IDA 和 Il2CppDumper 一样，加载 ELF 时会自动应用重定位表。

原始文件里的数据段存的是编译期的原始值，同时 .rela.dyn 里记录了地址 0x10624b8 处，需要加上加载基地址 (R_AARCH64_RELATIVE)

动态链接器（安卓运行时）读 RELA，把值改成基地址 + 偏移，dump 出来看到的样子
IDA 加载时也读 RELA，自己完成重定位，显示正确的引用
Il2CppDumper 也一样

所以原始文件里数据段的看起来不对是正常的，是 ELF 共享库的标准工作方式。

方案三: 根本不用fix

腾讯2023SecAndroid初赛题目 | LLeaves Blog

邮电小误导了

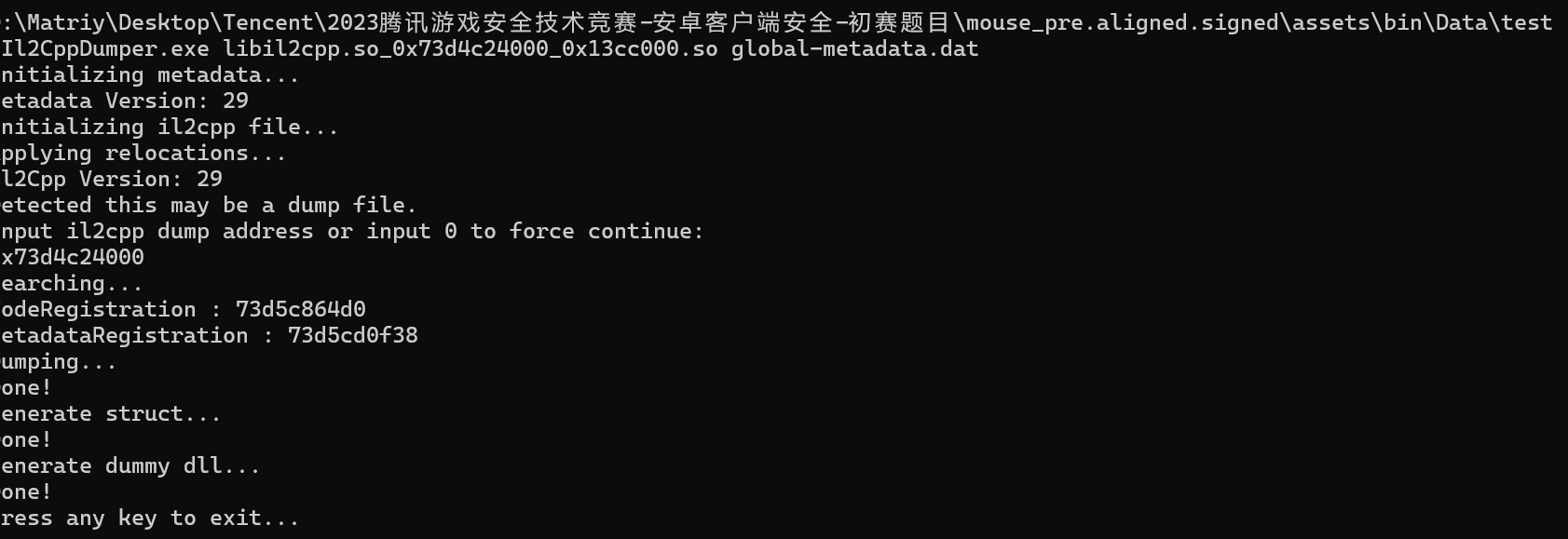

绕了好久其实只用对dump出来的文件直接给输入基址他就自己会找CodeRegistration和MetadataRegistration

CodeRegistration存储所有编译后的 C++ 代码的注册信息：

typedef struct Il2CppCodeRegistration {
    uint32_t methodPointersCount;
    Il2CppMethodPointer* methodPointers;        // 每个 C# 方法对应的函数指针
    uint32_t reversePInvokeWrapperCount;
    Il2CppMethodPointer* reversePInvokeWrappers; // P/Invoke 反向调用包装
    uint32_t genericMethodPointersCount;
    Il2CppMethodPointer* genericMethodPointers;  // 泛型方法的函数指针
    uint32_t invokerPointersCount;
    Il2CppMethodPointer* invokerPointers;        // 方法调用器
    // ...
}

Il2CppCodeRegistration;

简单说：C# 方法名 → 对应的 native 函数地址的映射表。

MetadataRegistration
存储所有类型系统元数据的注册信息：
typedef struct Il2CppMetadataRegistration {
    int32_t genericClassesCount;
    Il2CppGenericClass** genericClasses;     // 泛型类实例
    int32_t genericInstsCount;
    Il2CppGenericInst** genericInsts;        // 泛型实例化参数
    int32_t genericMethodTableCount;
    Il2CppGenericMethodFunctionsDefinitions* genericMethodTable;
    int32_t typesCount;
    Il2CppType** types;                      // 所有类型信息（就是之前修的 Il2CppType）
    // ...
    }

Il2CppMetadataRegistration;

简单说：所有类型、泛型、类的元数据表。

Il2CppDumper 为什么需要它们

global-metadata.dat 知道方法叫什么名字，但不知道编译后的地址在哪
CodeRegistration 知道每个方法编译后的地址，但不知道叫什么名字
MetadataRegistration 提供类型系统信息，把两者关联起来

三者结合，Il2CppDumper 就能输出 void PlayerController.Update() { }

恢复符号

分别使用两个文件进行导入：运行Il2CppDumper提供的脚本ida_with_struct_py3.py，运行后分别选择script.json与il2cpp.h，耐心等待解析完毕

运行Il2CppDumper提供的脚本ida_py3.py，运行后选择script.json

frida检测对抗手段

frida有检测可以直接用魔改版的项目，然后换个端口即可，hluda github可以搜到

1
2
3

./hs -l 0.0.0.0:9999
adb forward tcp:9999 tcp:9999(需要另外开一个终端),前面的是电脑端口
frida -H 127.0.0.1:9999 -f xxx -l r0tracer.js

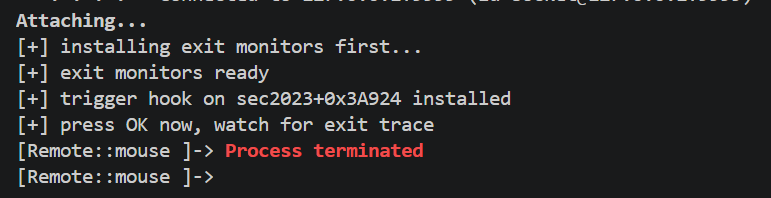

实际上用frida dump出内容后仍然被kill了

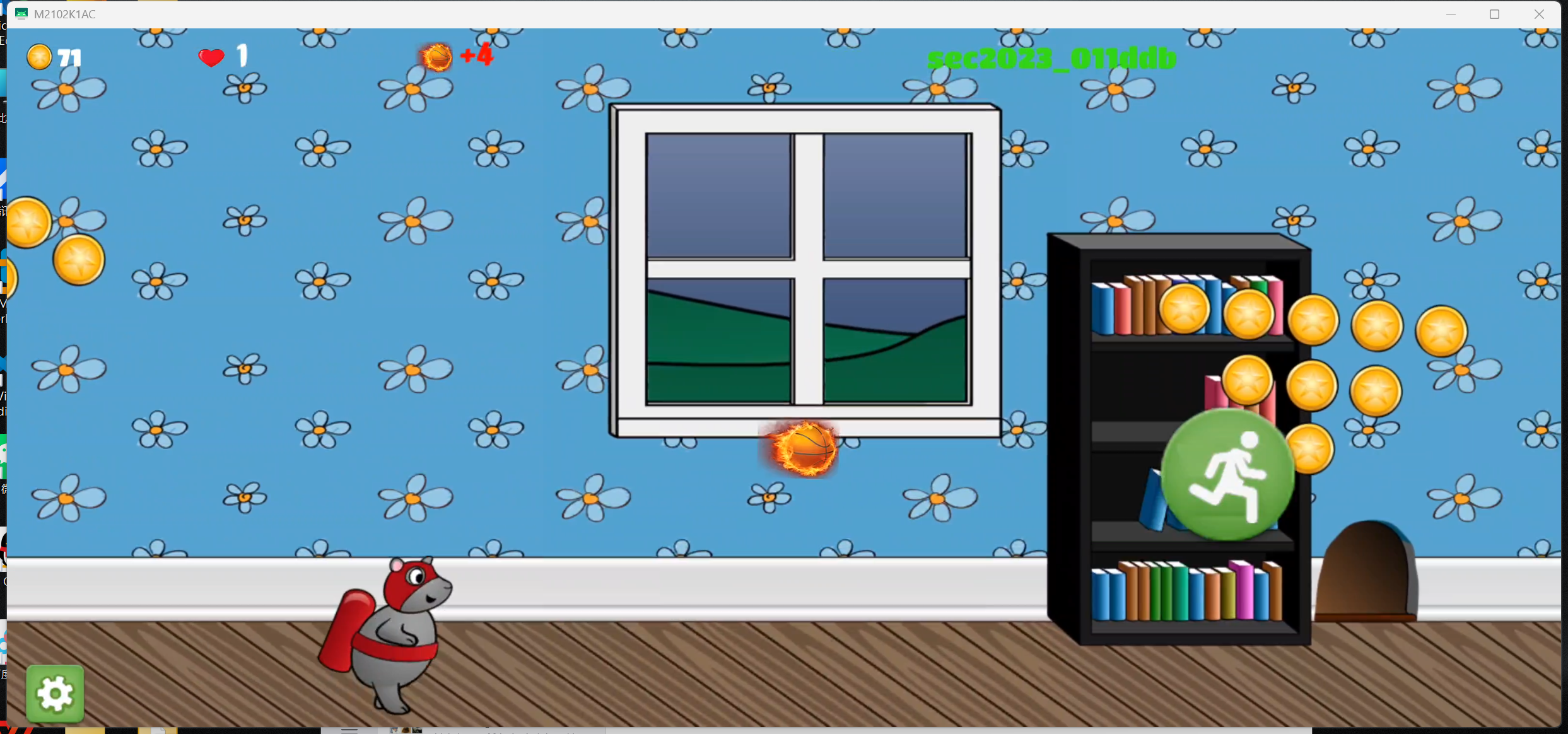

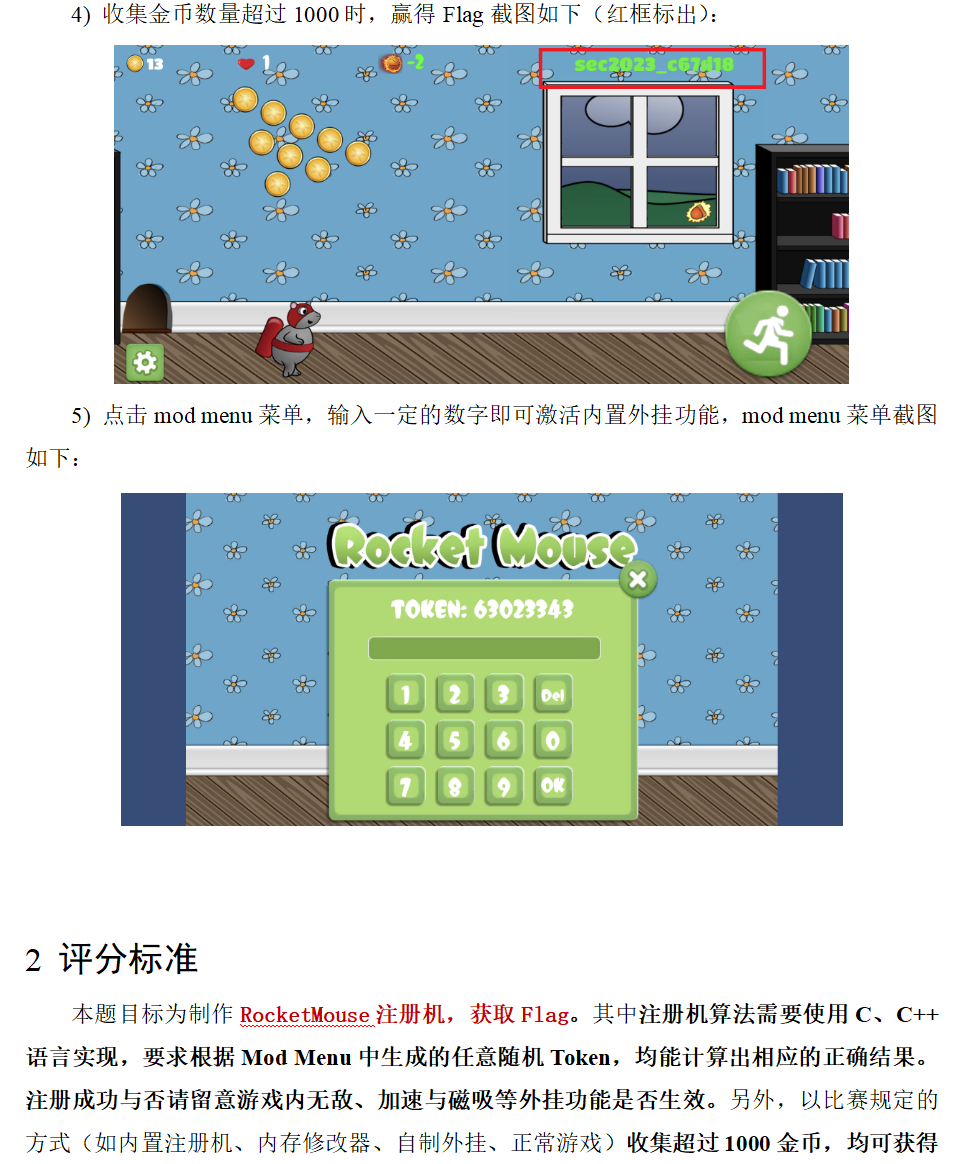

flag获取

从csharp代码入手

MouseController.cs ：主控制器，含金币收集、碰撞、生命等核心逻辑

SmallKeyboard.cs：键盘输入组件，有个可疑的 KeyboardNum 静态字段

Oo0.cs / oO0OoOOo.cs做了混淆

TssSdtInt.cs：腾讯安全盾(TSS)的防篡改数据类型

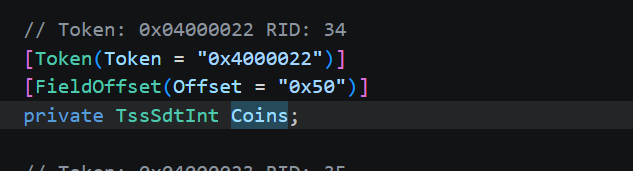

MouseController 中有两个关键字段，Coins (类型 TssSdtInt)，分数，使用反作弊保护的整数

LblWeaks (类型 Text) — 名字可疑的UI文本，不像是显示弱点，像是显示flag

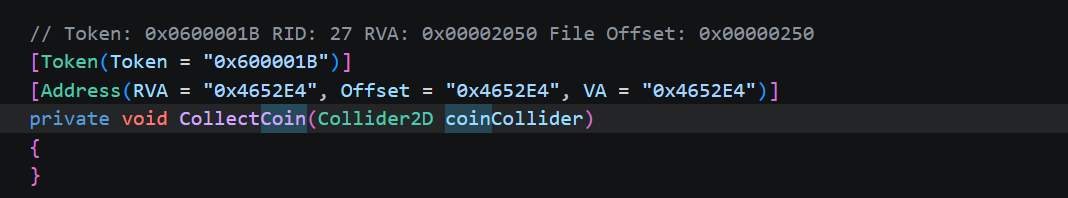

C# dump出来的代码只有方法签名和RVA地址，没有方法体

7d23d01234就是 VA，RVA = VA - 模块基址

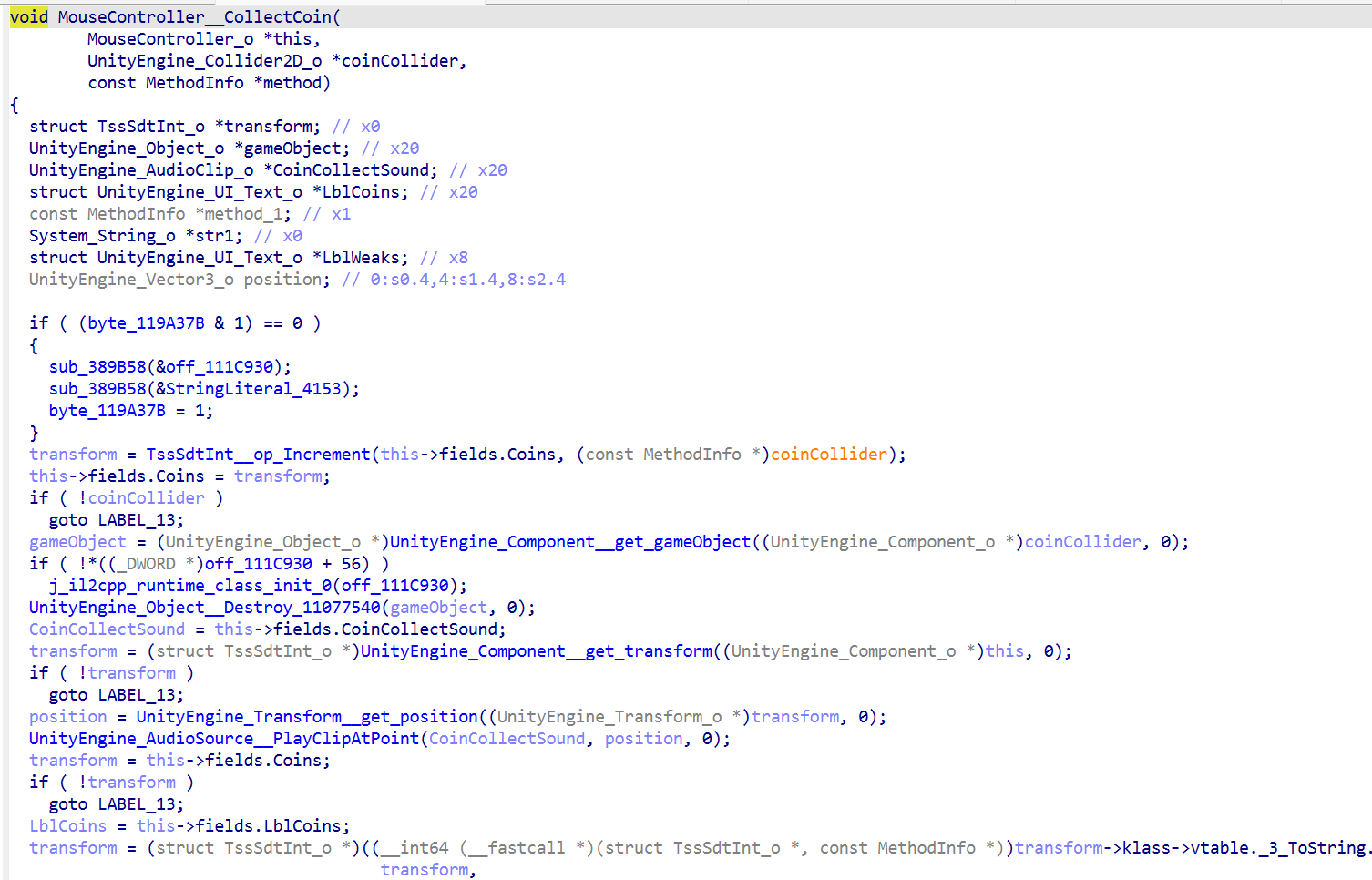

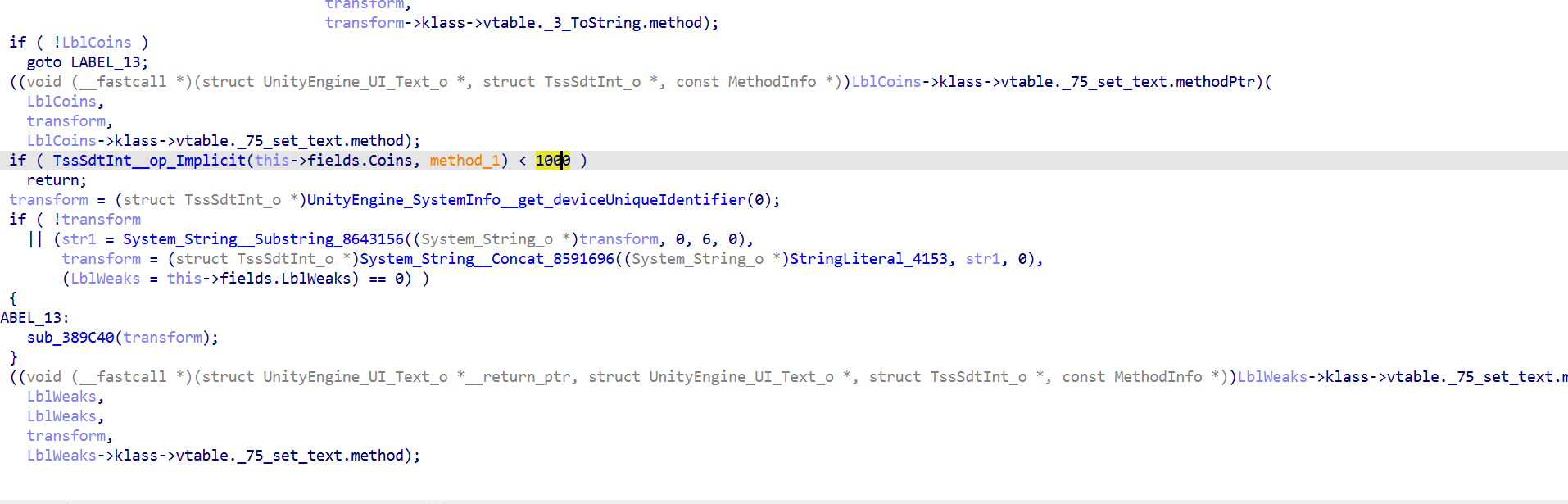

首先看 CollectCoin (RVA 0x4652E4)，因为收集金币，加分

void CollectCoin(this, coinCollider) {
    this->Coins = TssSdtInt::op_Increment(this->Coins);  // Coins++
    Destroy(coinCollider->gameObject);           // 销毁金币对象
    PlayClipAtPoint(this->CoinCollectSound);     // 播放音效
    LblCoins->set_text(Coins.ToString());        // 更新UI显示
    // 分数检查
    if (TssSdtInt::op_Implicit(this->Coins) < 1000)
        return;  // 不够1000分，直接返回
    // 达到1000分，生成flag
    string deviceId = SystemInfo.get_deviceUniqueIdentifier();
    string sub = deviceId.Substring(0, 6);
    string flag = String.Concat(StringLiteral_4153, sub);
    this->LblWeaks->set_text(flag);  // 显示flag
}

到这里flag生成逻辑就清楚了：flag = 某个前缀+ 设备ID前6位

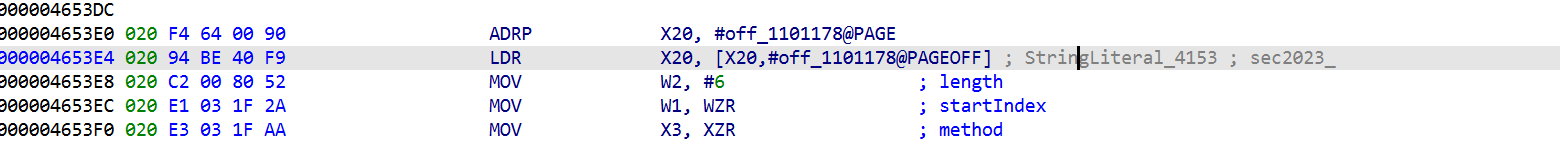

从 stringliteral.json 查到索引4153的值是 secP160k1。在IDA反汇编中看到该地址的注释标记为 sec2023_。这个不管，fridahook完就知道是哪个了

不论哪个值，flag的结构是确定的：固定前缀 + deviceUniqueIdentifier[0:6]

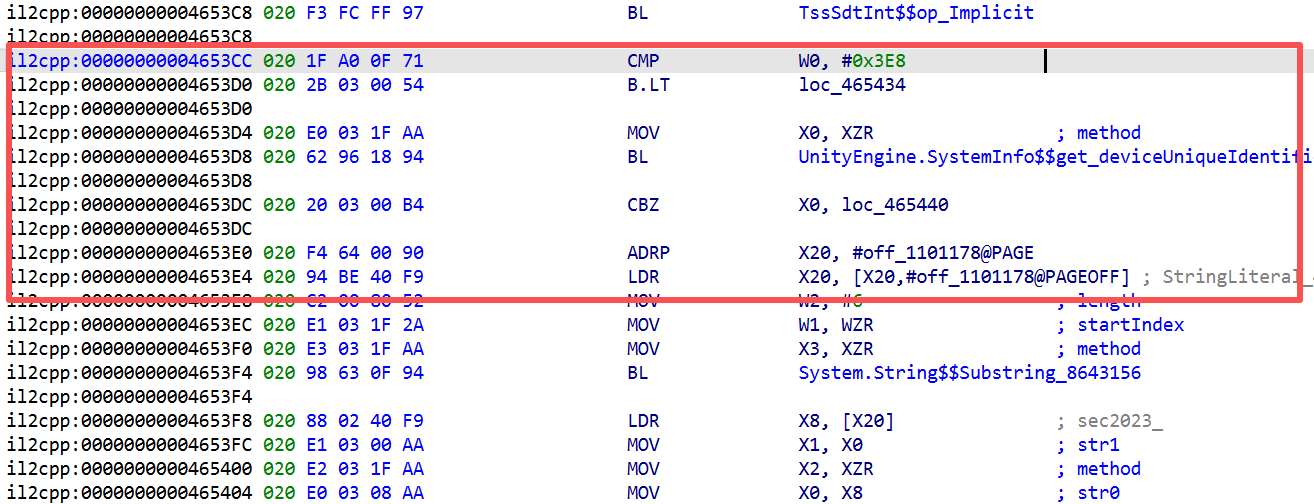

0x4653D0 的 B.LT ，NOP掉它，不管分数多少都会走到flag生成路径

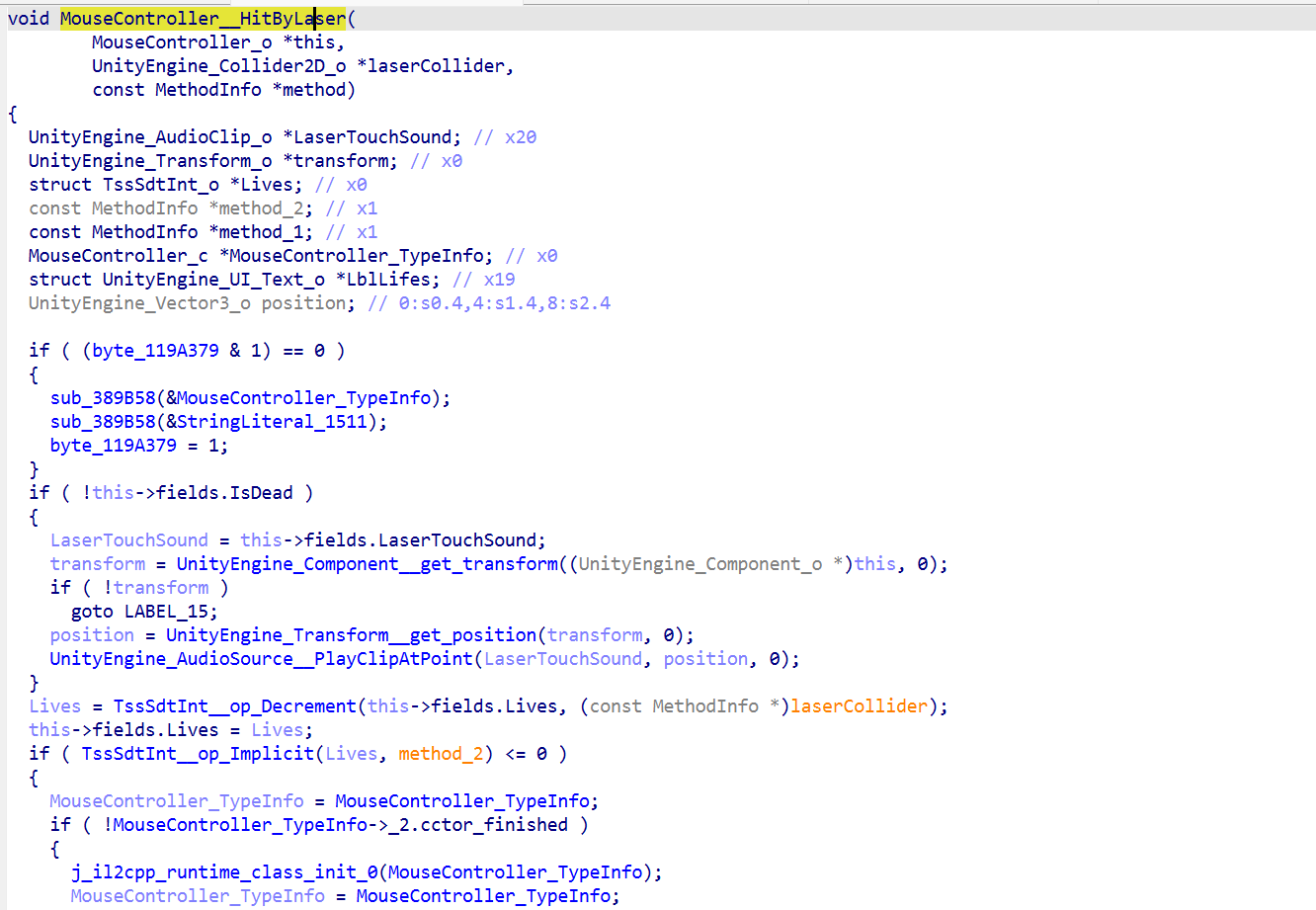

一些辅助逻辑

大概是

void HitByLaser(this, laserCollider) {
    Lives = TssSdtInt::op_Decrement(Lives);  // 生命-1
    if (Lives <= 0) {
        totalFailedNum++;   // 全局失败计数+1
        IsDead = true;
        PnlRestart->SetActive(true);  // 显示重启面板
    }
}

可以hook掉来保证无敌

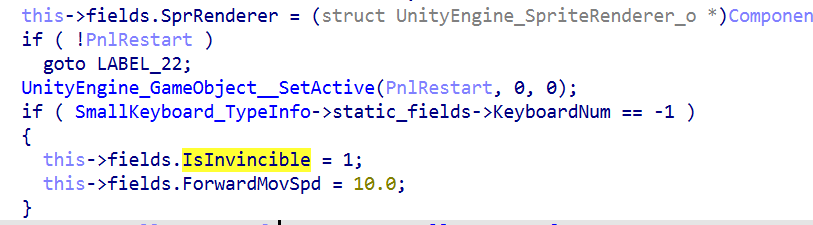

MouseController::Start (RVA 0x464598)：

 void Start() {
    if (SmallKeyboard.KeyboardNum == -1) {
        IsInvincible = true;      // 内置的无敌模式
        ForwardMovSpd = 10.0;
    }
    if (totalFailedNum >= 3) {
        Lives = min(totalFailedNum - 1, 3);  // 失败多次后减少初始生命
        LblWeaks->set_text(StringLiteral_2720);
    }
}

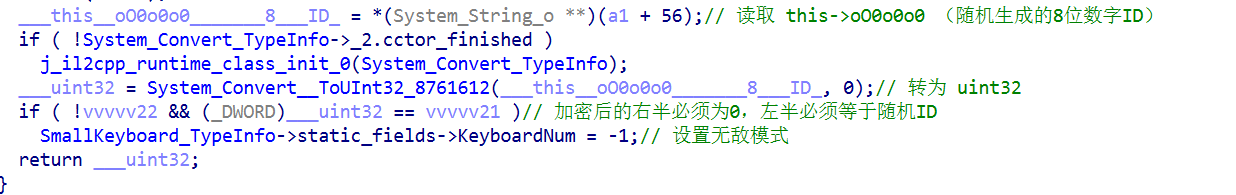

发现隐藏的调试入口：KeyboardNum == -1 会开启无敌

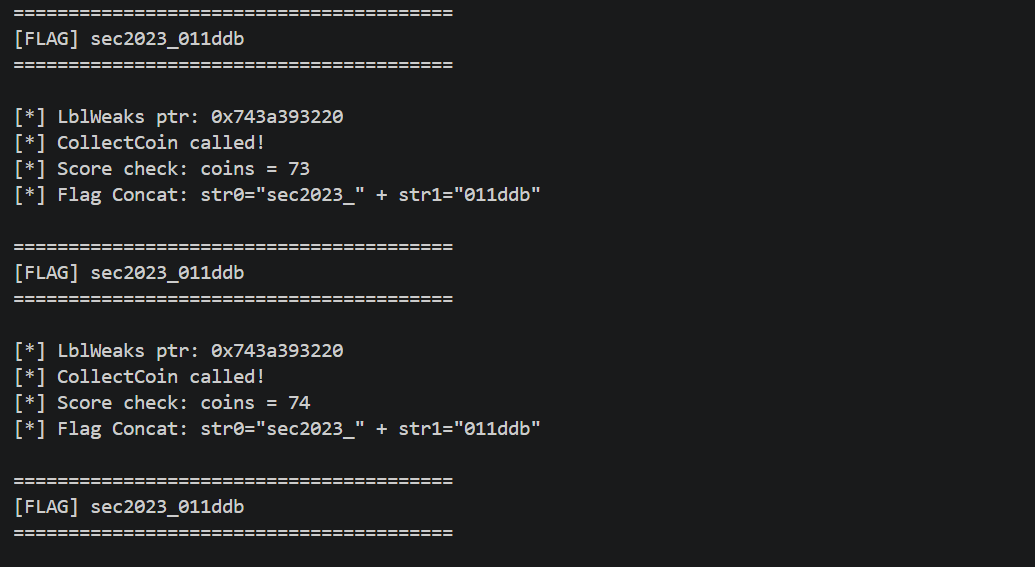

Frida脚本做了这几件事：

NOP 0x4653D0 的 B.LT — 核心bypass，让每次收集金币都走flag路径
Replace HitByLaser 为空函数，无敌，防止还没捡到金币就死了
Hook String.Concat + 检查返回地址在CollectCoin范围内，精准捕获flag字符串并打印
4. Hook TssSdtInt::op_Implicit ，监控实际分数，这样只要进游戏碰到第一个金币，flag就会直接打印到Frida控制台。

//   MouseController::CollectCoin  = 0x4652E4
//   Score check: CMP W0, #0x3E8   = 0x4653CC
//   Score branch: B.LT (skip flag) = 0x4653D0
//   TssSdtInt::op_Implicit        = 0x464794
//   String.Concat                 = 0x831950
//   MouseController::HitByLaser   = 0x465444
var libBase = null;

function waitForLibrary(callback) {
    var interval = setInterval(function () {
        libBase = Module.findBaseAddress("libil2cpp.so");
        if (libBase) {
            clearInterval(interval);
            console.log("[+] libil2cpp.so loaded at: " + libBase);
            callback();
        }
    }, 500);
}

function readIl2cppString(ptr) {
    if (ptr.isNull()) return "<null>";
    try {
        var len = ptr.add(0x10).readInt();
        if (len <= 0 || len > 1024) return "<invalid len:" + len + ">";
        return ptr.add(0x14).readUtf16String(len);
    } catch (e) {
        return "<read error>";
    }
}

function hookAll() {
    // ============================================================
    // 1. Patch: NOP the B.LT at RVA 0x4653D0
    //    This skips the "coins < 1000" check so flag is generated
    //    on every coin collection.
    // ============================================================
    var patchAddr = libBase.add(0x4653D0);
    Memory.patchCode(patchAddr, 4, function (code) {
        var writer = new Arm64Writer(code, { pc: patchAddr });
        writer.putNop();  // replace B.LT with NOP
        writer.flush();
    });
    console.log("[+] Patched score check B.LT -> NOP at " + patchAddr);

    // ============================================================
    // 2. Hook CollectCoin to log coin collection events
    // ============================================================
    var collectCoin = libBase.add(0x4652E4);
    Interceptor.attach(collectCoin, {
        onEnter: function (args) {
            this.thisPtr = args[0];
            console.log("[*] CollectCoin called!");
        },
        onLeave: function (retval) {
            // After CollectCoin, try to read LblWeaks (offset 0x90) text
            try {
                var lblWeaks = this.thisPtr.add(0x90).readPointer();
                if (!lblWeaks.isNull()) {
                    console.log("[*] LblWeaks ptr: " + lblWeaks);
                }
            } catch (e) {}
        }
    });
    console.log("[+] Hooked MouseController::CollectCoin at " + collectCoin);

    // ============================================================
    // 3. Hook String.Concat to capture the flag string
    //    Flag = StringLiteral_4153 + deviceUniqueIdentifier[0:6]
    //    We filter by checking if it's called from CollectCoin
    // ============================================================
    var strConcat = libBase.add(0x831950);  // System.String.Concat(str0, str1)
    Interceptor.attach(strConcat, {
        onEnter: function (args) {
            this.retAddr = this.returnAddress;
            // Check if called from within CollectCoin (RVA range 0x4652E4 - 0x465444)
            var retRVA = this.retAddr.sub(libBase).toInt32();
            if (retRVA >= 0x4652E4 && retRVA <= 0x465444) {
                this.isFlag = true;
                var str0 = readIl2cppString(args[0]);
                var str1 = readIl2cppString(args[1]);
                console.log("[*] Flag Concat: str0=\"" + str0 + "\" + str1=\"" + str1 + "\"");
            }
        },
        onLeave: function (retval) {
            if (this.isFlag) {
                var flag = readIl2cppString(retval);
                console.log("\n========================================");
                console.log("[FLAG] " + flag);
                console.log("========================================\n");
            }
        }
    });
    console.log("[+] Hooked String.Concat to capture flag at " + strConcat);

    // ============================================================
    // 4. (Optional) Make player invincible by hooking HitByLaser
    //    This prevents dying before collecting enough coins.
    // ============================================================
    var hitByLaser = libBase.add(0x465444);
    Interceptor.replace(hitByLaser, new NativeCallback(function (thisPtr, laserCollider, method) {
        // Do nothing - player is now invincible
        console.log("[*] HitByLaser blocked - player is invincible!");
    }, 'void', ['pointer', 'pointer', 'pointer']));
    console.log("[+] Hooked HitByLaser (invincible mode) at " + hitByLaser);

    // ============================================================
    // 5. (Optional) Hook TssSdtInt::op_Implicit to monitor score
    // ============================================================
    var opImplicit = libBase.add(0x464794);
    var opImplicitOrig = new NativeFunction(opImplicit, 'int', ['pointer', 'pointer']);
    Interceptor.attach(opImplicit, {
        onLeave: function (retval) {
            var retRVA = this.returnAddress.sub(libBase).toInt32();
            // 0x4653CC is the call site checking coins >= 1000
            if (retRVA >= 0x4653CC && retRVA <= 0x4653D0) {
                console.log("[*] Score check: coins = " + retval.toInt32());
            }
        }
    });
    console.log("[+] Hooked TssSdtInt::op_Implicit to monitor score");

    console.log("\n[+] All hooks installed! Collect any coin to trigger flag.");
    console.log("[+] Player is invincible - you won't die from lasers.");
    console.log("[+] Flag will be printed when String.Concat is called.\n");
}

// ============================================================
// Entry point: wait for libil2cpp.so to load, then hook
// ============================================================
console.log("[*] Waiting for libil2cpp.so to load...");
waitForLibrary(hookAll);

libil2cpp.so加密分析

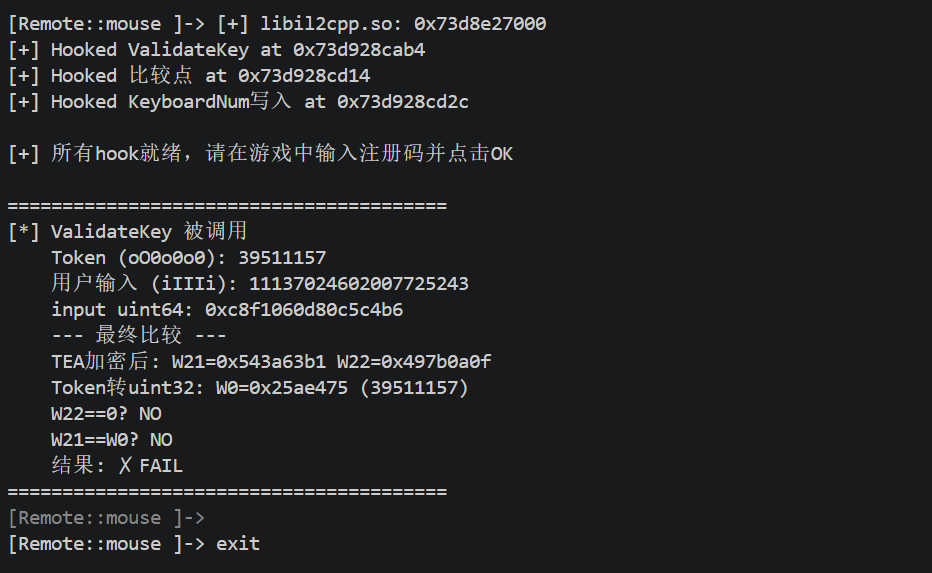

要分析注册机首先从输入key开始分析，c#中发现了SmallKeyboard，显然是处理输入0x465880

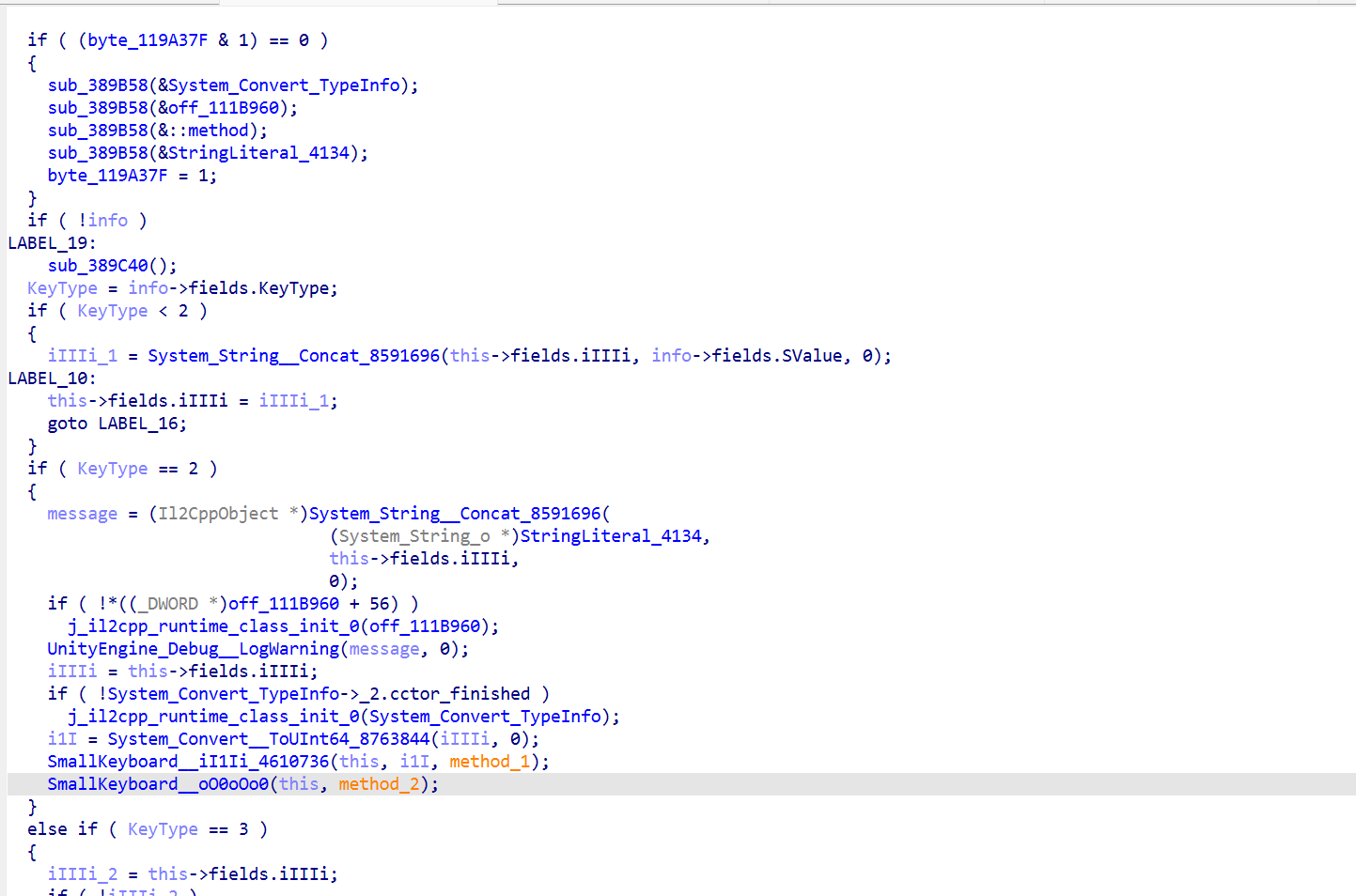

先看反编译 iI1Ii

分析时发现其中有三个分支，大概是

KeyType < 2 与之前的输入拼接
KeyType == 2 按下OK提交
KeyType == 3 按下Del删除前一个输入

因此需要着重分析第二个OK的分支。

if (KeyType == 2) {  // EnterKey
    ulong i1I = Convert.ToUInt64(this->iIIIi);  // 输入转uint64
    SmallKeyboard__iI1Ii_4610736(this, i1I);     // 验证函数
    SmallKeyboard__oO0oOo0(this);                 // 重新生成token
}

去混淆

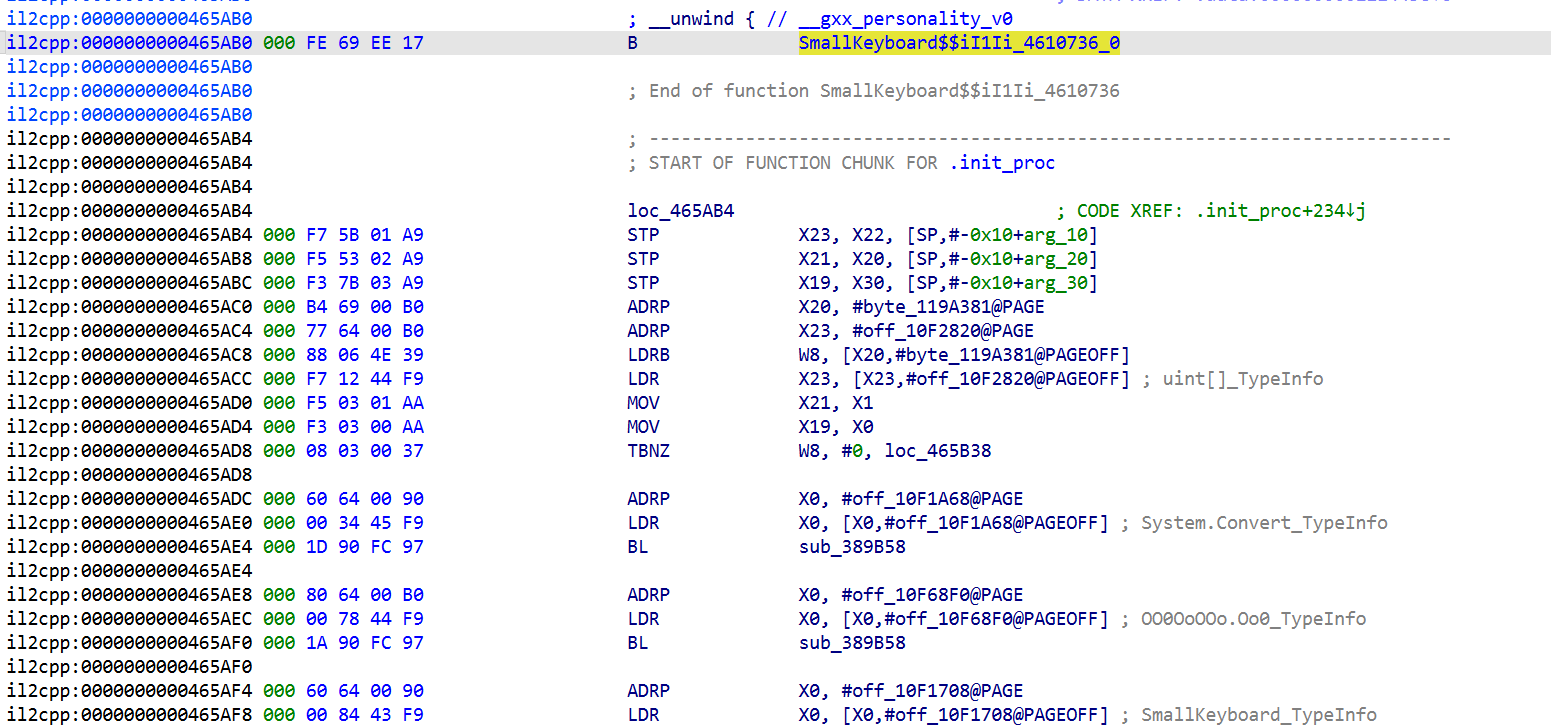

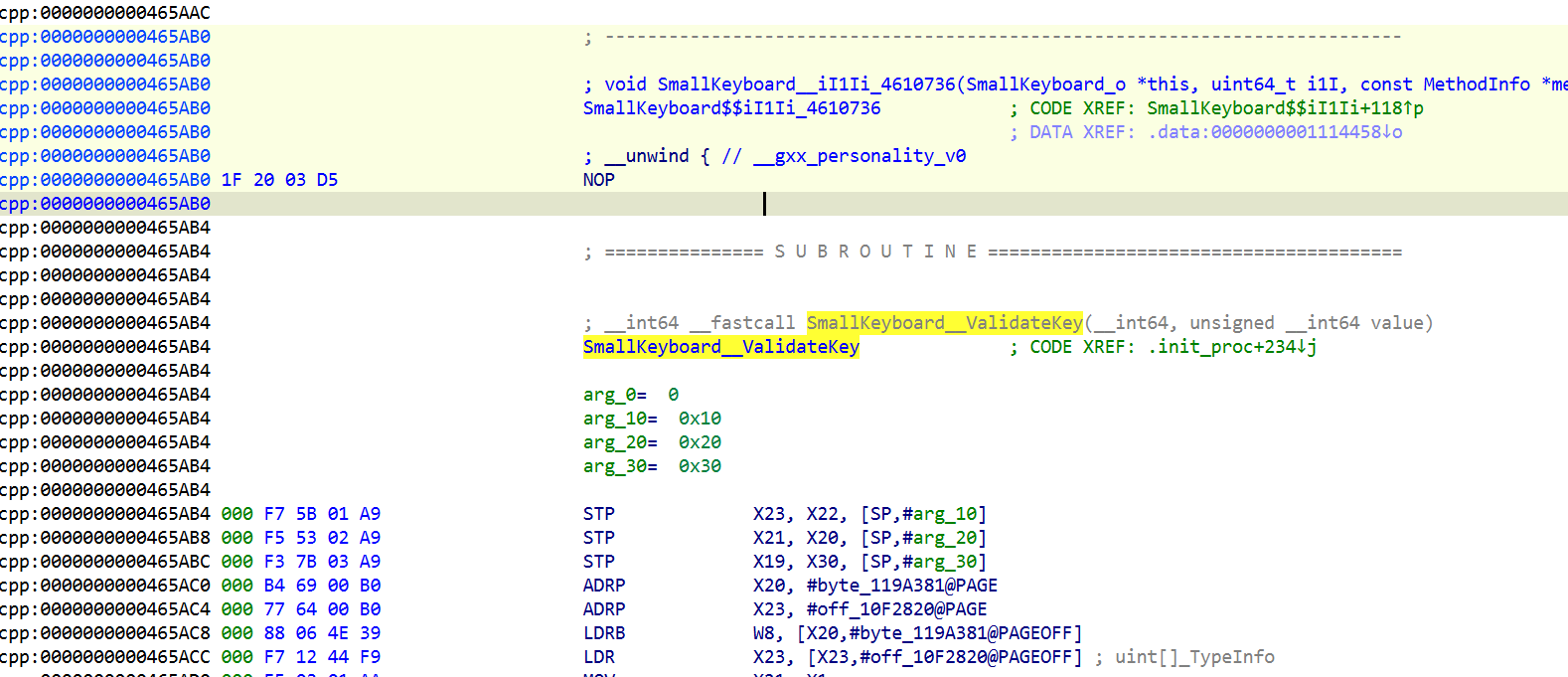

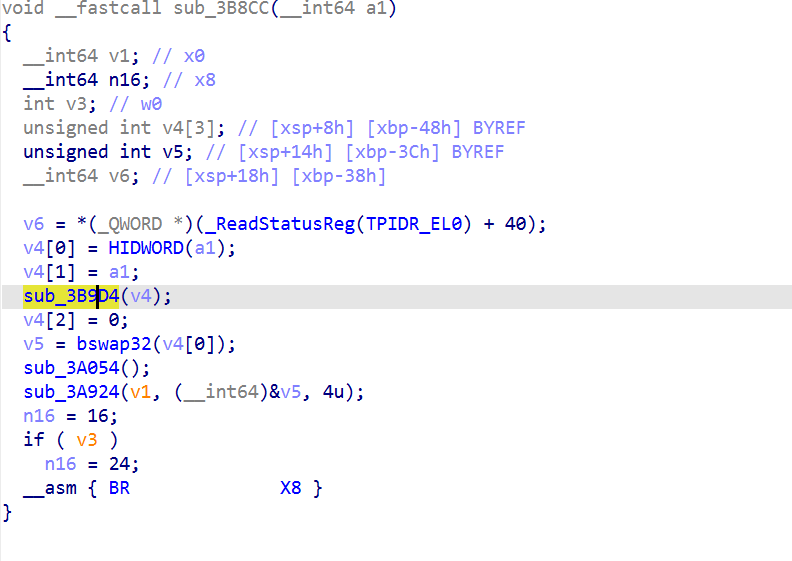

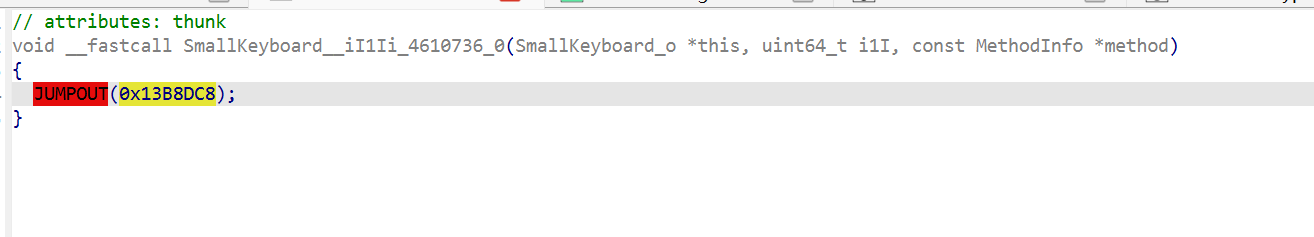

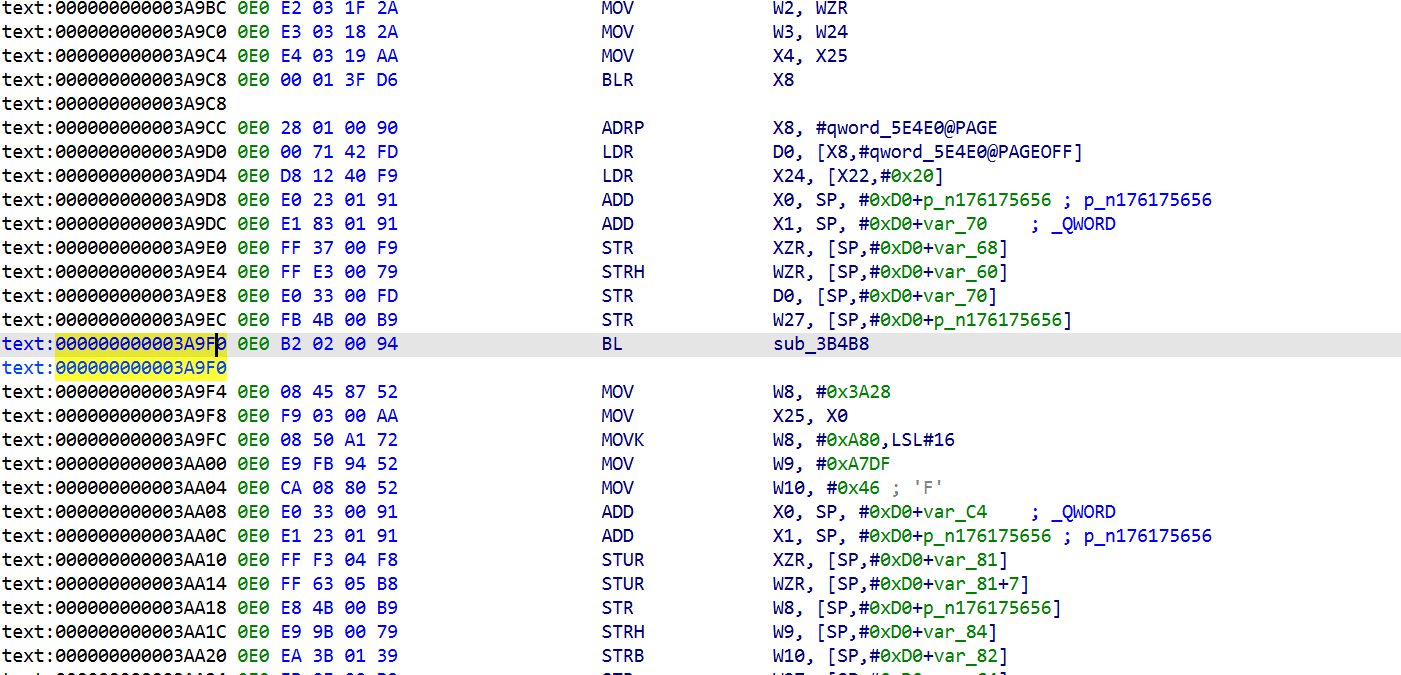

追踪iI1Ii_4610736发现被保护了

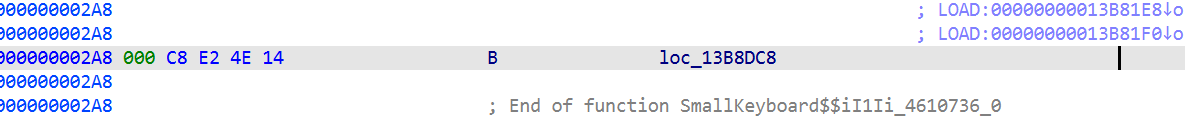

这是 B（无条件跳转），不是 BL（带链接的调用）。对IDA来说，B 意味着控制流转移到目标，不会返回这里，所以 IDA 认为 0x465AB4 之后的代码不属于任何正常控制流

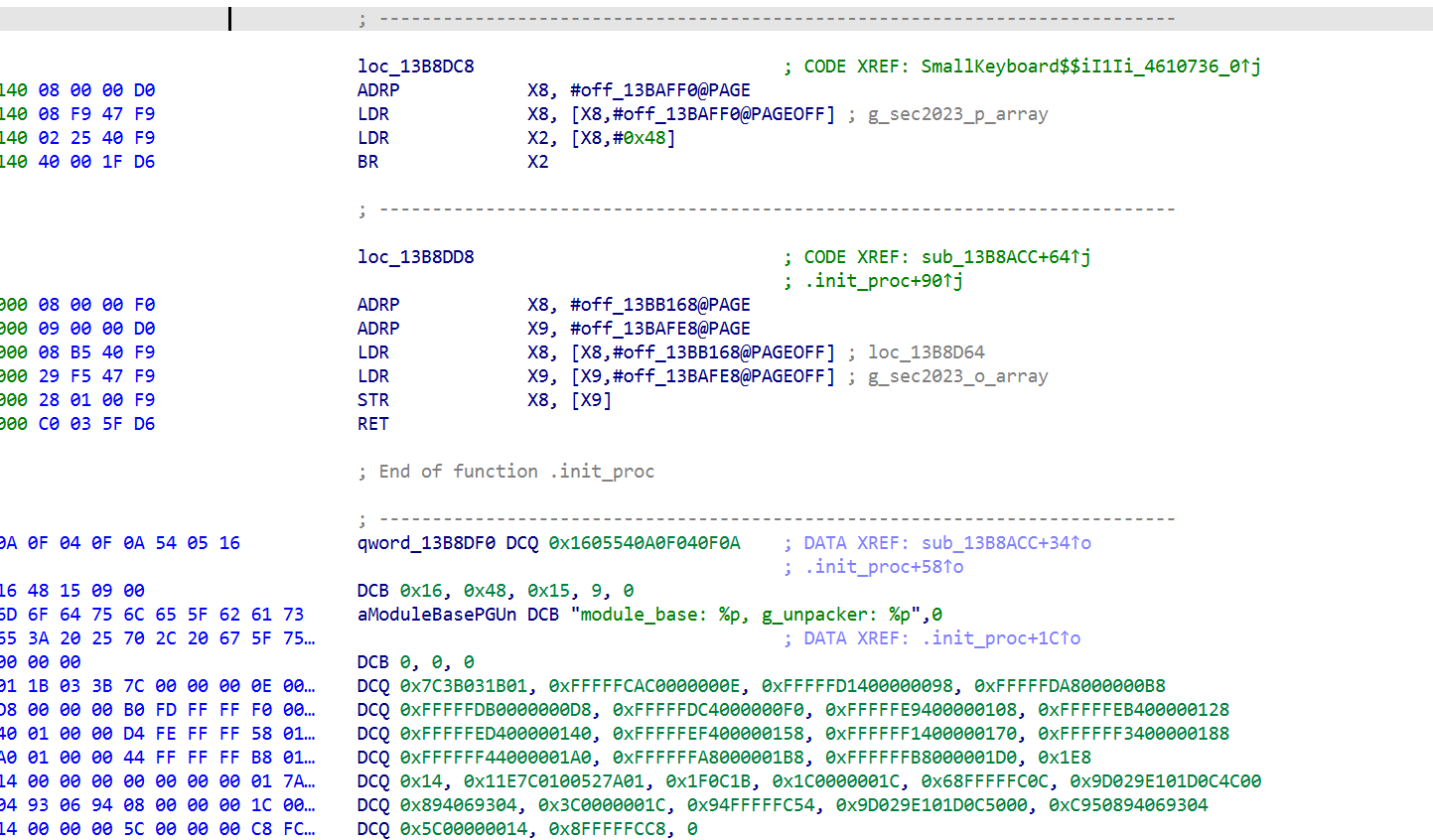

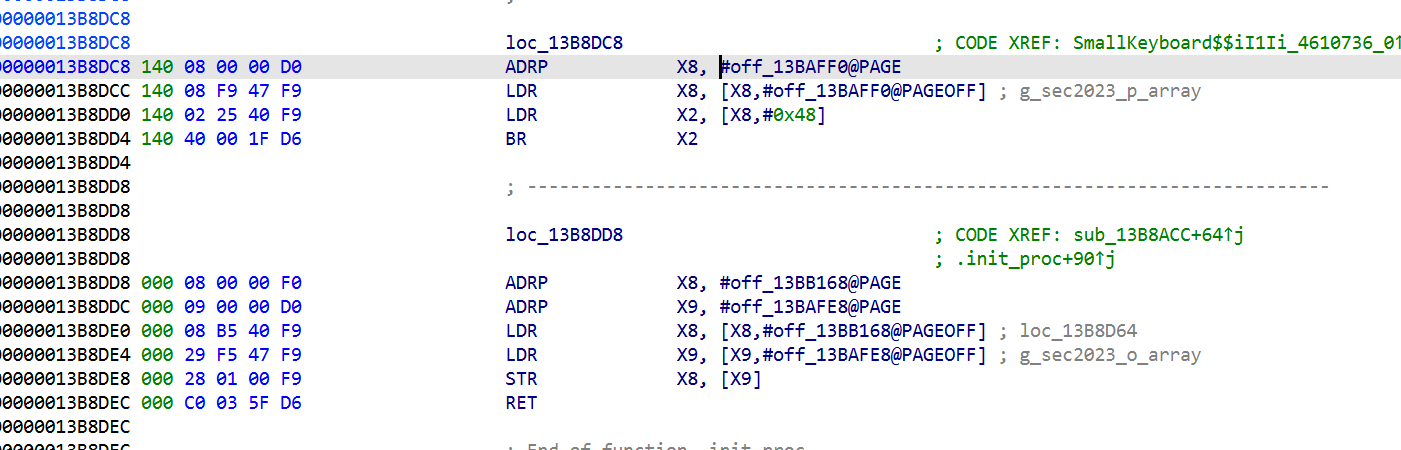

而 0x2A8 处又是一个 B 到 sec2023 的 .init_proc：

0x2A8: B loc_13B8DC8 ; 跳到 sec2023 unpacker

0x2AC: (data…) ; 加密/packed的函数数据

IDA 跟着这两个B走，最终把整条链路都归入 .init_proc 的函数范围。所以当我查询 0x465AB4 所属函数时

这是腾讯安全壳的unpacker

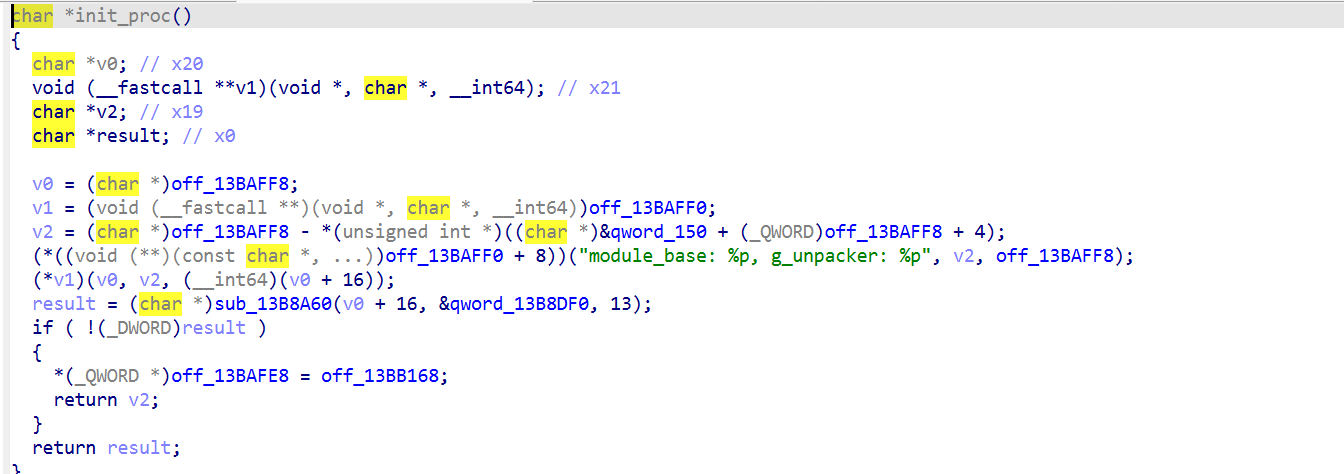

但是在上一层的下面发现了initproc

妖媚看汇编，要么进行处理，下面的指令应该是个正常函数的内容却被归入了init_proc,所以反编译器不能正确处理，最简单的是直接nop掉源头

再UCP重建函数即可

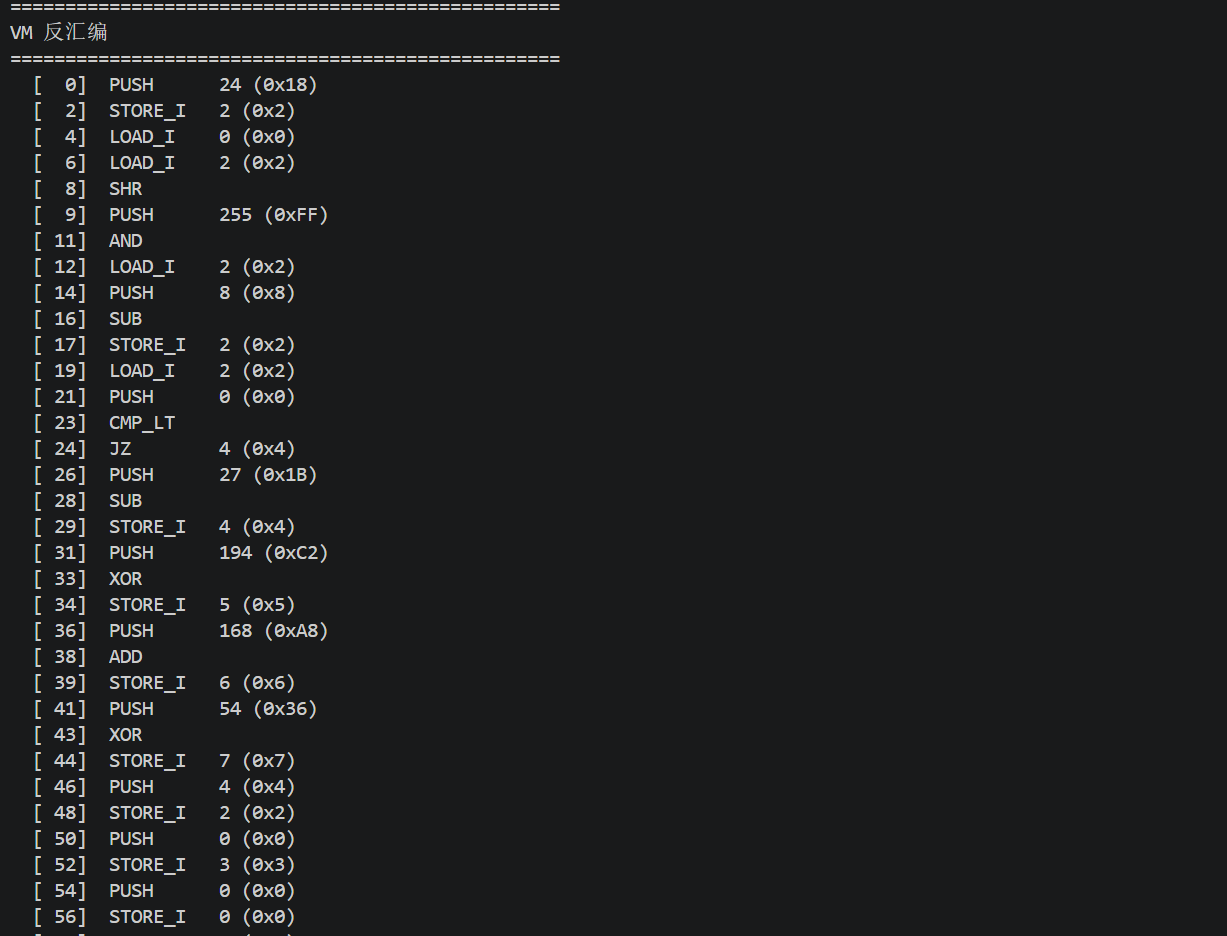

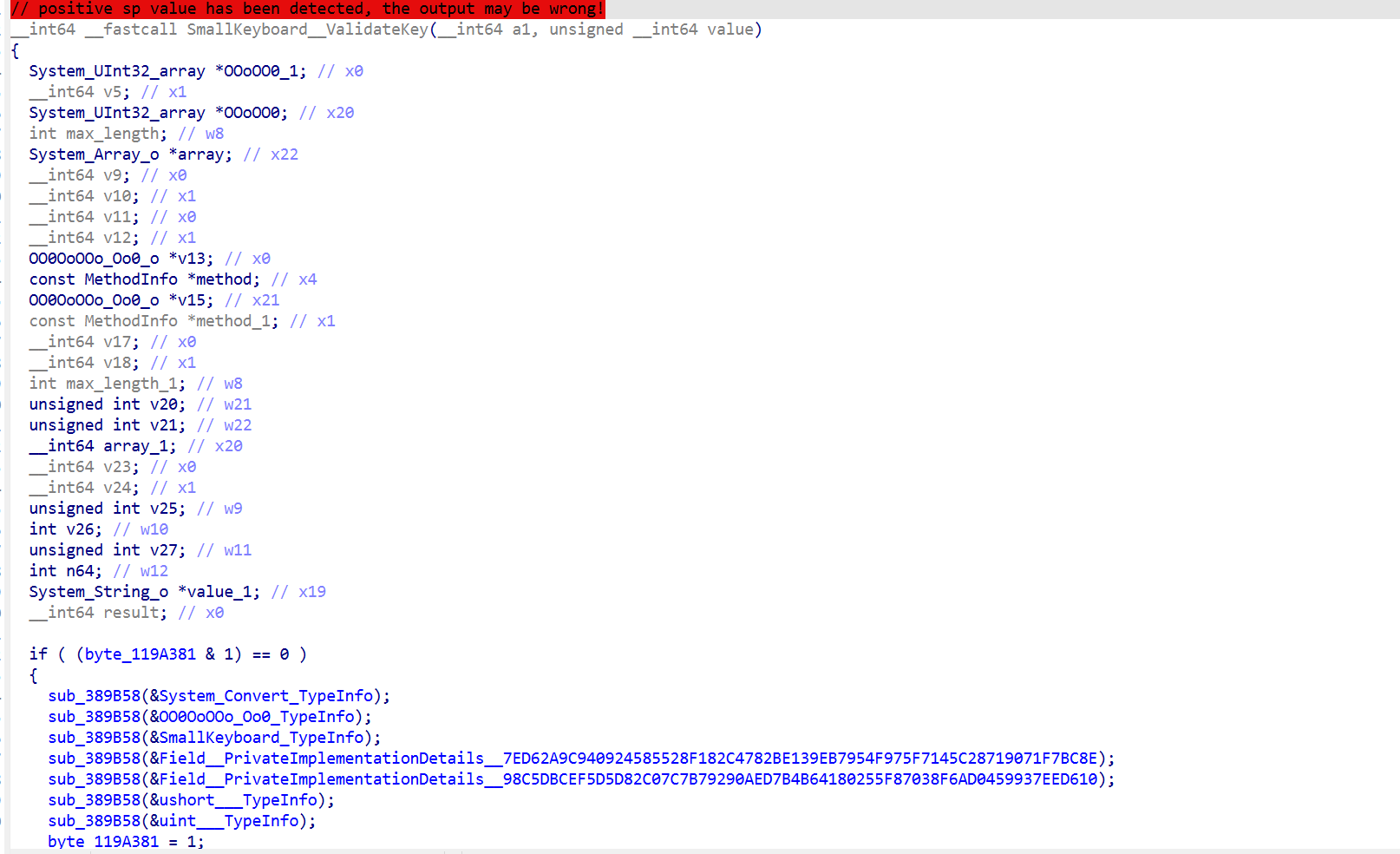

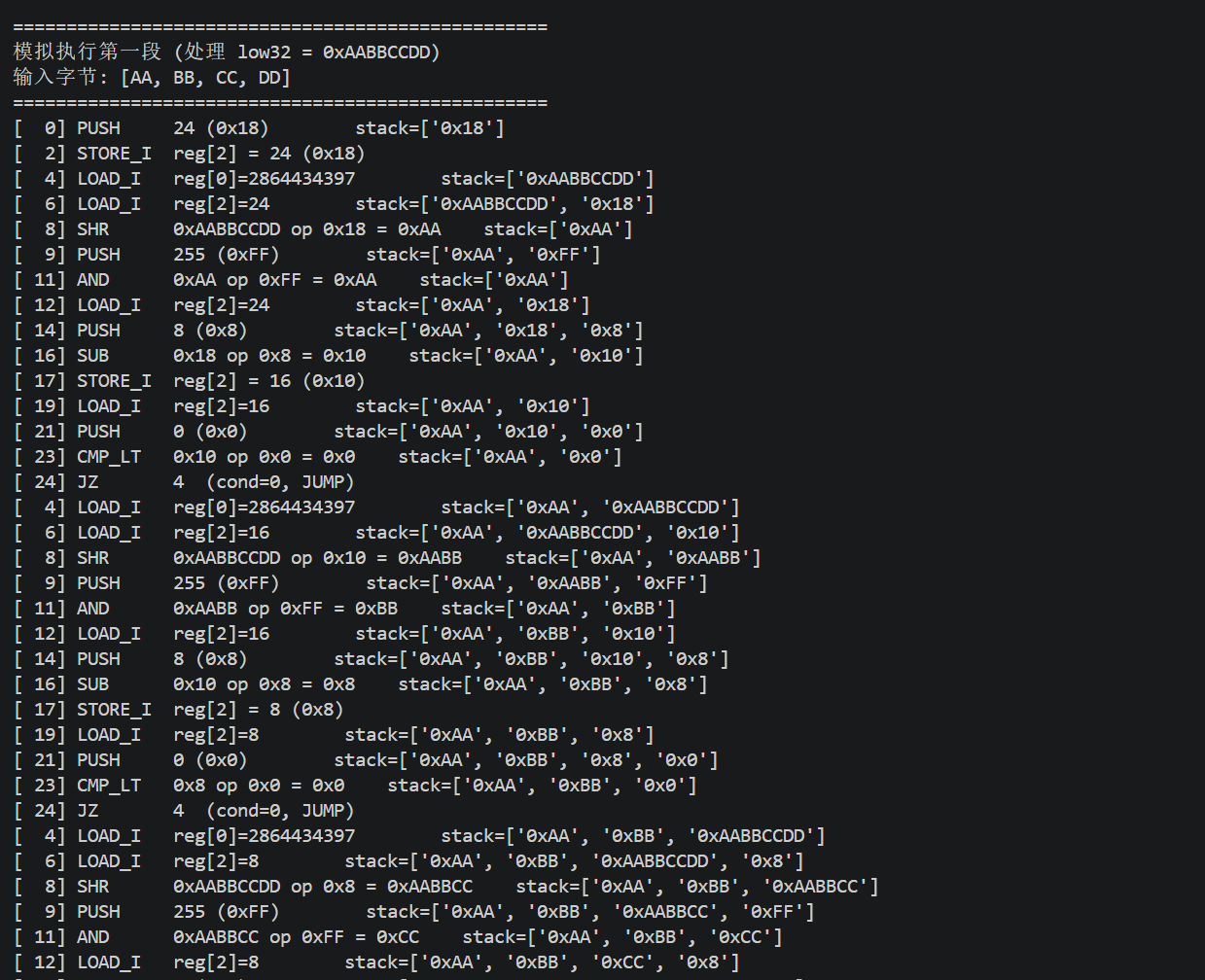

VM分析

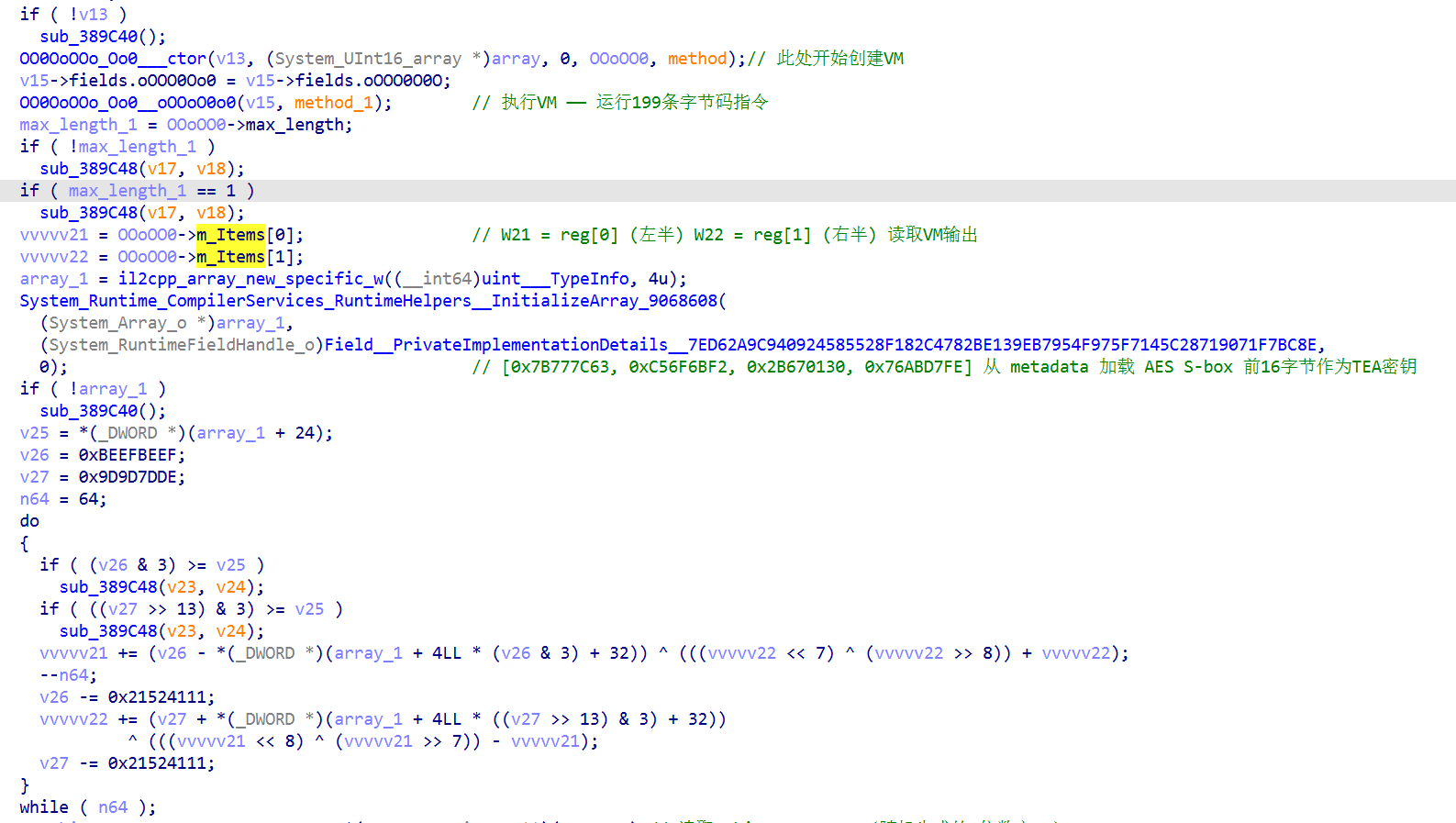

去除后大致逻辑如下：

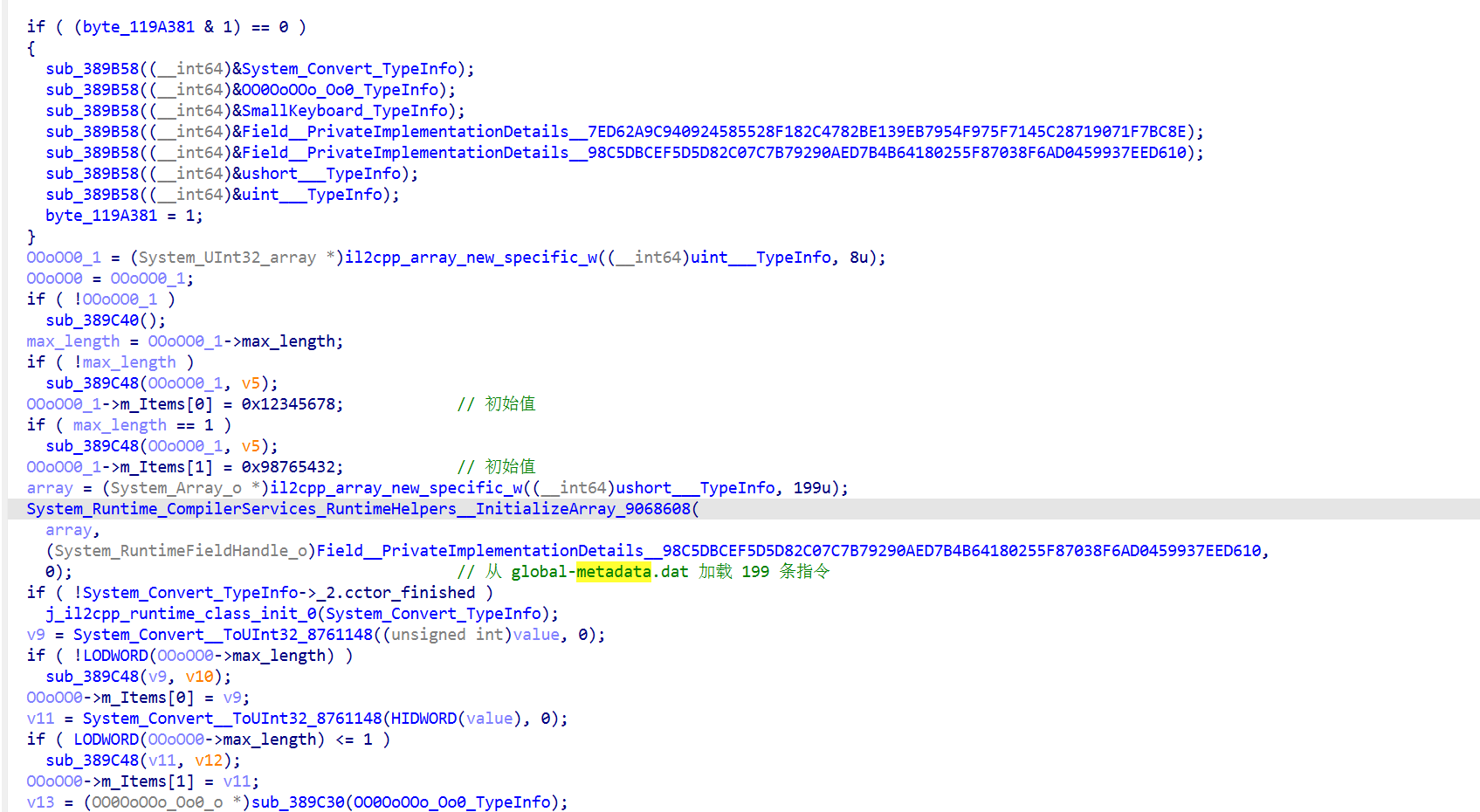

密钥和字节码怎么来的?就是从global-metadata加载的

7ED62A9C940924585528F182C4782BE139EB7954F975F7145C28719071F7BC8E 这个长名字就是 IL2CPP 的 PrivateImplementationDetails 命名规则 — 它是数据内容的SHA256哈希值

所以反过来，可以在 global-metadata.dat 的数据块里暴力搜索匹配的SHA256

import struct
import hashlib

with open('global-metadata.dat', 'rb') as f:
    metadata = f.read()

# 解析 metadata 头
sig, version = struct.unpack('<Ii', metadata[:8])
print(f"Signature: 0x{sig:08X}, Version: {version}")

# 头部是一系列 (offset, size) 对，fieldAndParameterDefaultValueData 是第8个表(index=8)
header_entries = struct.unpack('<64i', metadata[8:8 + 64 * 4])
data_blob_offset = header_entries[8 * 2]      # index 8 的 offset
data_blob_size = header_entries[8 * 2 + 1]    # index 8 的 size
print(f"fieldAndParameterDefaultValueData: offset=0x{data_blob_offset:X}, size={data_blob_size}")

blob = metadata[data_blob_offset:data_blob_offset + data_blob_size]

# ========== 搜索 TEA 密钥 (uint[4] = 16字节) ==========
tea_hash = '7ed62a9c940924585528f182c4782be139eb7954f975f7145c28719071f7bc8e'

print(f"\n搜索 TEA 密钥")
for offset in range(len(blob) - 16 + 1):
    chunk = blob[offset:offset + 16]
    if hashlib.sha256(chunk).hexdigest() == tea_hash:
        key = struct.unpack('<4I', chunk)
        print(f"TEA key = [{', '.join(hex(v) for v in key)}]")
        break
else:
    print("未找到!")

# ========== 搜索 VM 字节码 (ushort[199] = 398字节) ==========
vm_hash = '98c5dbcef5d5d82c07c7b79290aed7b4b64180255f87038f6ad0459937eed610'

print(f"\n搜索 VM 字节码")
for offset in range(len(blob) - 398 + 1):
    chunk = blob[offset:offset + 398]
    if hashlib.sha256(chunk).hexdigest() == vm_hash:
        bytecode = struct.unpack('<199H', chunk)
        print(bytecode)
        break
else:
    print("未找到!")

从反编译代码：

OO0OoOOo_Oo0___ctor(v13, array, 0, OOoOO0, method);
  //                   this  ↑     ↑    ↑
  //                       字节码  0   寄存器数组
四个参数。对照 C# dump 中的构造函数签名：

// Oo0.cs
public Oo0(ushort[] OoOOO00, int oOOO0O0O, uint[] OOoOO0)
//          ↑字节码数组        ↑初始PC值     ↑数据/寄存器数组

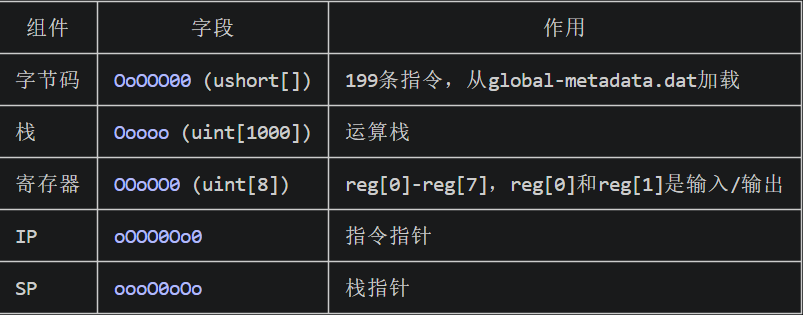

再对照构造函数的反编译（RVA 0x4660E8）：
void Oo0___ctor(Oo0 *this, ushort[] OoOOO00, int oOOO0O0O, uint[] OOoOO0) {
  Object___ctor(this);
  this->O000O000000o();           // 初始化opcode→handler字典
  this->OoOOO00 = OoOOO00;       // 保存字节码
  this->OOoOO0 = OOoOO0;         // 保存寄存器数组
  this->Ooooo = new uint[1000];   // 创建栈(1000大小)
  this->oOOO0O0O = oOOO0O0O;     // 保存初始PC
  this->oooO0oOo = -1;            // SP初始化为-1(空栈)
}

所以第二个参数 0 就是 startPC=0，意味着从字节码的第一条指令开始执行

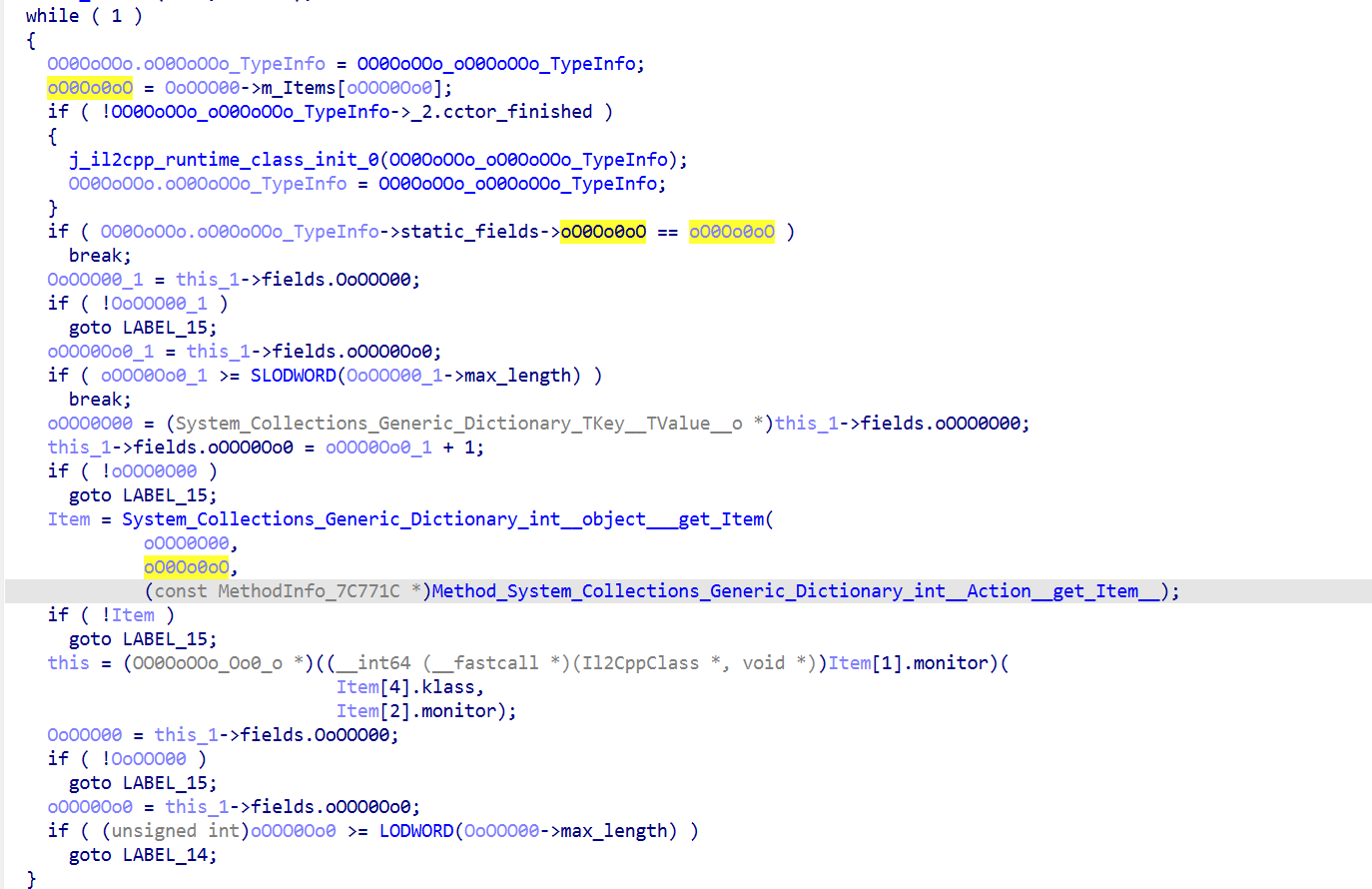

反编译oOOoO0o0（RVA 0x46AD44），这是 VM dispatch 主循环：

void Oo0__oOOoO0o0(Oo0 *this) {
  while (1) {
      ushort opcode = this->OoOOO00[this->oOOO0Oo0];  // 读当前指令

      // HALT 检查
      if (opcode == oO0OoOOo.oO0Oo0oO)    // == 0x12
          break;

      this->oOOO0Oo0++;                    // IP++

      // 查字典找handler并调用
      Action handler = this->oOOO0O00[opcode];
      handler();
  }
}

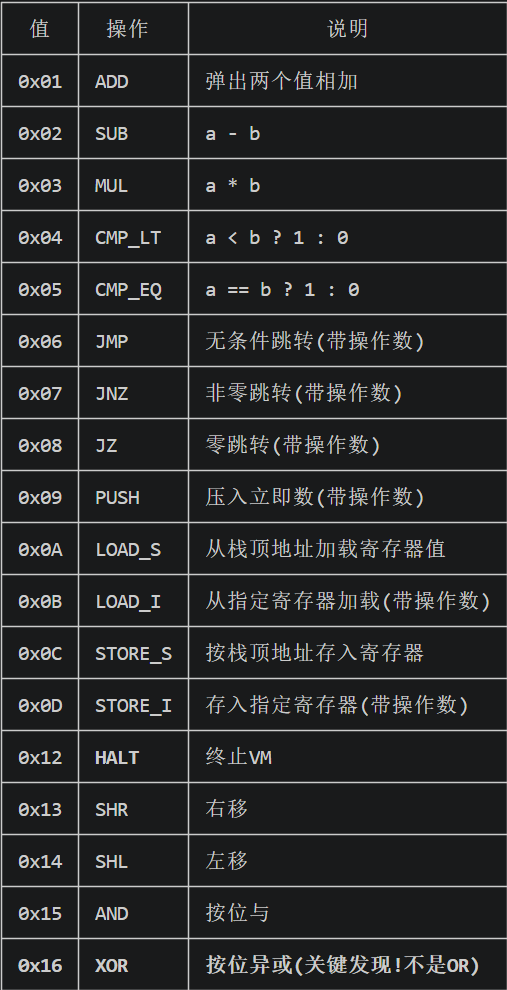

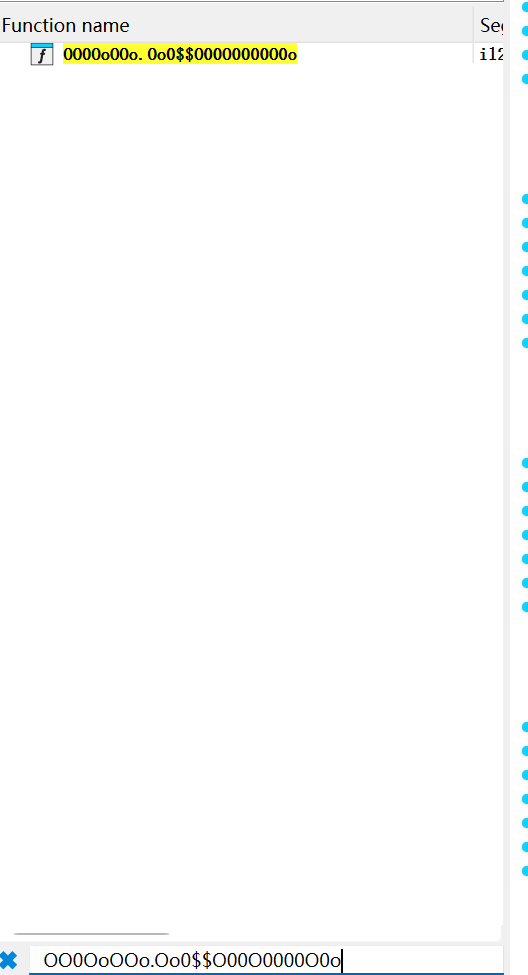

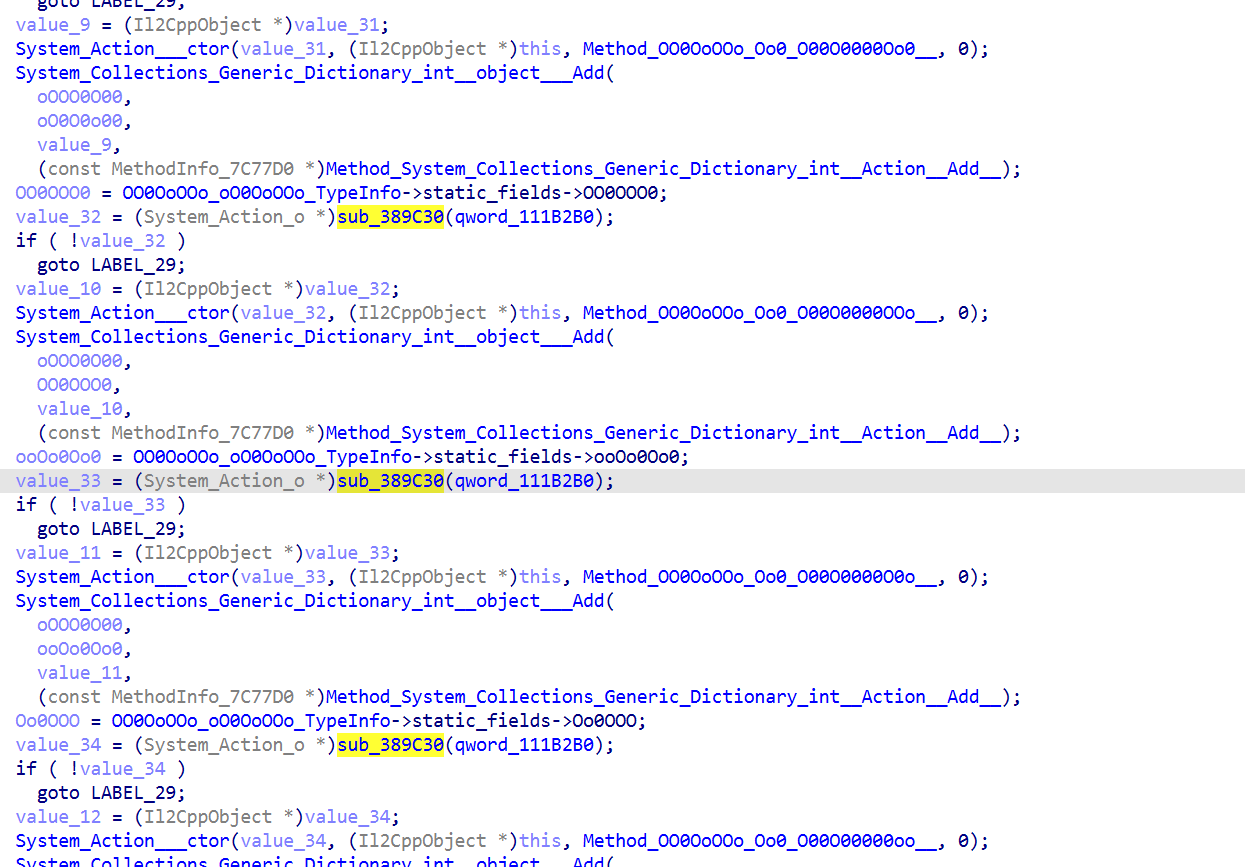

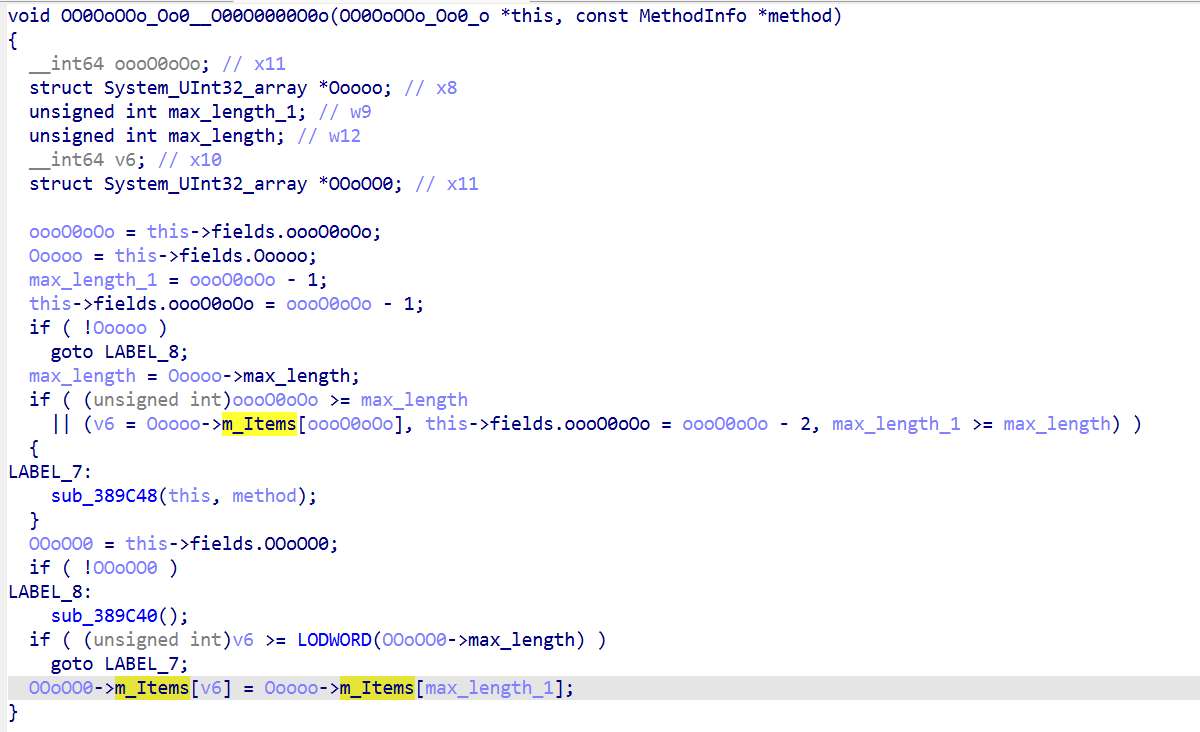

那22个handler是在 O000O000000o（RVA 0x46A55C）里注册的：

void Oo0__O000O000000o(Oo0 *this) {
  dict = new Dictionary<int, Action>();
  dict.Add(oO0OoOOo.oO0OO0O0, new Action(this.ooOOO0OO));  // ADD
  dict.Add(oO0OoOOo.Oo0o0OO,  new Action(this.oooOoo));     // SUB
  dict.Add(oO0OoOOo.OO0OO0,   new Action(this.OOOOOO0));    // MUL
  // ... 共22个
  this->oOOO0O00 = dict;
}

然后逐个反编译这22个handler函数，例如 PUSH_IMM（RVA 0x46B578）：

void Oo0__O00O00000o(Oo0 *this) {
  ushort operand = this->OoOOO00[this->oOOO0Oo0];  // 读操作数
  this->oOOO0Oo0++;                                  // IP++
  this->oooO0oOo++;                                   // SP++
  this->Ooooo[this->oooO0oOo] = operand;             // push到栈
}

比如我们随便找一个

// 1. 读 opcode 值
oO0Oo00o = OO0OoOOo_oO0OoOOo_TypeInfo->static_fields->oO0Oo00o;

// 2. 创建 Action，绑定到 Method_OO0OoOOo_Oo0_O00O00000o__
System_Action___ctor(value_30, this, Method_OO0OoOOo_Oo0_O00O00000o__, 0);
//                                   这个就是handler的MethodInfo引用
// 3. 注册到字典
dict.Add(oO0Oo00o, value_8);

1	Method_OO0OoOOo_Oo0_O00O0000O0o__

就是OO0OoOOo+Oo0+O00O0000O0o

可以这样OO0OoOOo.Oo0$$O00O0000O0o

先把 IL2CPP 的字段名还原成有意义的名字：

void Oo0__PUSH_IMM(Oo0 *this) {
    // this->fields.oOOO0Oo0  = IP (指令指针)
    // this->fields.OoOOO00   = bytecode[] (字节码数组)
    // this->fields.Ooooo     = stack[] (栈)
    // this->fields.oooO0oOo  = SP (栈指针)

这些字段名的对应关系来自 C# dump 和构造函数分析：

[FieldOffset(Offset = "0x10")] private ushort[] OoOOO00;   // 字节码
[FieldOffset(Offset = "0x20")] private uint[] Ooooo;       // 栈
[FieldOffset(Offset = "0x28")] private int oooO0oOo;       // SP
[FieldOffset(Offset = "0x2C")] private int oOOO0Oo0;       // IP

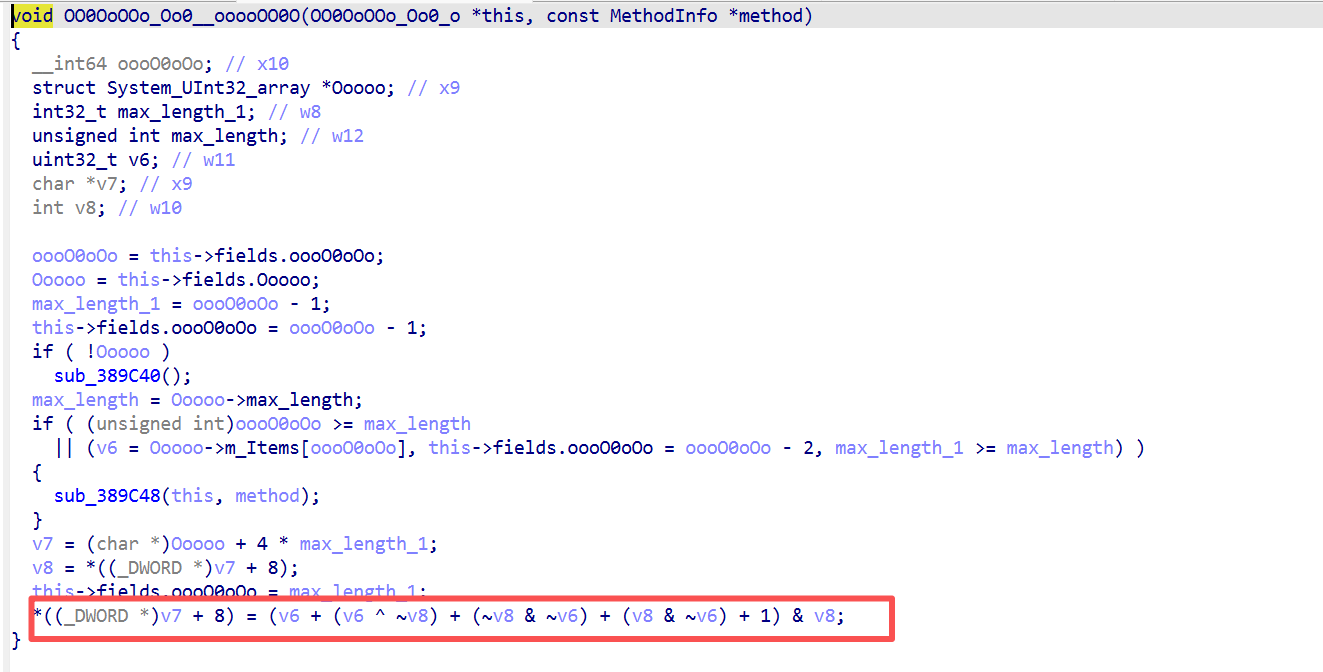

但是里面的部分逻辑还是被混淆了以 ooooOO0O（0x46B0BC）为例：

反编译所有22个handler。每个handler都用了MBA混淆，例如 AND 被表示为：result = (v6 + (v6 ^ ~~v8) + (~~v8 & ~v6) + (v8 & ~v6) + 1) & v8;用单比特真值表验证每个handler的真实操作。

我们如何去混淆[分享]Ollvm 指令替换混淆还原神器：GAMBA 使用指南-Android安全-看雪安全社区｜专业技术交流与安全研究论坛

简单学习ollvm混淆&polyre例题解析 | Matriy’s blog

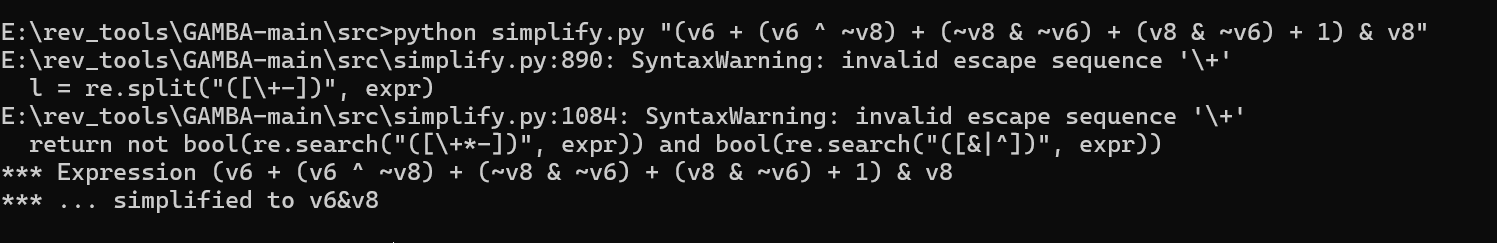

可以使用GAMBA

简化玩就是个与操作，这样我们可以得到所有的逻辑

Oo0 是一个栈式虚拟机，包含

22个操作码总结如下：

魔改TEA

  v25 = *(array_1 + 24);      // 读 key 数组长度（用于边界检查）
  v26 = -1091584273;           // sum    = 0xBEEFBEEF
  v27 = -1650623010;           // key_sum = 0x9D9D7DDE
  n64 = 64;                    // 64轮
do {
      // 更新左半 W21
      v20 += (v26 - key[v26 & 3]) ^ (((v21 << 7) ^ (v21 >> 8)) + v21);
      //       sum - key[sum&3]        混合右半的值
      --n64;
      v26 -= 559038737;        // sum += 0xDEADBEEF (等价于 -= 因为无符号溢出)
      // 更新右半 W22
      v21 += (v27 + key[(v27>>13) & 3]) ^ (((v20 << 8) ^ (v20 >> 7)) - v20);v
      //       ks + key[(ks>>13)&3]       混合左半的值
      v27 -= 559038737;        // key_sum += 0xDEADBEEF
  } while (n64);

三层逆运算的叠加：

逆TEA：64轮反向，先撤销W22更新再撤销W21更新
逆VM重组：每字节 ^ shift 撤销XOR混合
逆字节变换：SUB↔ADD互逆，XOR自逆

总逻辑为用户输入数字(uint64) → 拆分为两个uint32 → VM字节变换 → TEA加密 → 与随机ID比较

VM对两个uint32分别做了字节拆分，逐字节变换，重新组装，我直接体现到代码里了,直接让AI搓一个脚本

import struct, hashlib

# ============================================================
# 1. 从 global-metadata.dat 提取字节码
# ============================================================
def load_bytecode():
    with open('global-metadata.dat', 'rb') as f:
        metadata = f.read()
    header = struct.unpack('<64i', metadata[8:8+64*4])
    blob_off, blob_size = header[16], header[17]
    blob = metadata[blob_off:blob_off+blob_size]

    vm_hash = '98c5dbcef5d5d82c07c7b79290aed7b4b64180255f87038f6ad0459937eed610'
    for off in range(len(blob) - 398 + 1):
        chunk = blob[off:off+398]
        if hashlib.sha256(chunk).hexdigest() == vm_hash:
            return list(struct.unpack('<199H', chunk))
    raise Exception("bytecode not found")

# ============================================================
# 2. 反汇编器：字节码 → 可读指令
# ============================================================
OPCODES = {
    0x01: ('ADD',     0), 0x02: ('SUB',     0), 0x03: ('MUL',      0),
    0x04: ('CMP_LT',  0), 0x05: ('CMP_EQ',  0), 0x06: ('JMP',      1),
    0x07: ('JNZ',     1), 0x08: ('JZ',      1), 0x09: ('PUSH',     1),
    0x0A: ('LOAD_S',  0), 0x0B: ('LOAD_I',  1), 0x0C: ('STORE_S',  0),
    0x0D: ('STORE_I', 1), 0x0E: ('PRINT',   0), 0x0F: ('POP',      0),
    0x12: ('HALT',    0), 0x13: ('SHR',     0), 0x14: ('SHL',      0),
    0x15: ('AND',     0), 0x16: ('XOR',     0),
}

def disassemble(code):
    ip = 0
    lines = []
    while ip < len(code):
        op = code[ip]
        if op == 0x12:
            lines.append((ip, 'HALT', None))
            break
        info = OPCODES.get(op)
        if info is None:
            lines.append((ip, f'UNK_0x{op:02X}', None))
            ip += 1
            continue
        name, has_operand = info
        if has_operand:
            operand = code[ip+1] if ip+1 < len(code) else 0
            lines.append((ip, name, operand))
            ip += 2
        else:
            lines.append((ip, name, None))
            ip += 1
    return lines

def print_disasm(lines):
    print("=" * 50)
    print("VM 反汇编")
    print("=" * 50)
    for addr, name, operand in lines:
        if operand is not None:
            print(f"  [{addr:3d}]  {name:8s}  {operand} (0x{operand:X})")
        else:
            print(f"  [{addr:3d}]  {name}")

# ============================================================
# 3. 模拟执行器：实际运行字节码，输出每步状态
# ============================================================
class VM:
    def __init__(self, code, regs_init):
        self.code = code
        self.regs = list(regs_init) + [0] * (8 - len(regs_init))  # reg[0..7]
        self.stack = []
        self.ip = 0
        self.trace = []  # 记录每步操作

    def run(self, verbose=False):
        while self.ip < len(self.code):
            op = self.code[self.ip]
            if op == 0x12:  # HALT
                self.trace.append(f"[{self.ip:3d}] HALT")
                break

            info = OPCODES.get(op)
            if info is None:
                raise Exception(f"Unknown opcode 0x{op:X} at IP={self.ip}")

            name, has_operand = info
            self.ip += 1

            if has_operand:
                operand = self.code[self.ip]
                self.ip += 1
            else:
                operand = None

            msg = self._exec(name, operand)
            if verbose:
                print(msg)
            self.trace.append(msg)

    def _exec(self, name, operand):
        u32 = lambda x: x & 0xFFFFFFFF
        ip_before = self.ip - (2 if operand is not None else 1)

        if name == 'PUSH':
            self.stack.append(operand)
            return f"[{ip_before:3d}] PUSH     {operand} (0x{operand:X})        stack={self._stack_str()}"

        elif name == 'LOAD_I':
            val = self.regs[operand]
            self.stack.append(val)
            return f"[{ip_before:3d}] LOAD_I   reg[{operand}]={val}        stack={self._stack_str()}"

        elif name == 'LOAD_S':
            addr = self.stack.pop()
            val = self.regs[addr]
            self.stack.append(val)
            return f"[{ip_before:3d}] LOAD_S   reg[{addr}]={val}        stack={self._stack_str()}"

        elif name == 'STORE_I':
            val = self.stack.pop()
            self.regs[operand] = u32(val)
            return f"[{ip_before:3d}] STORE_I  reg[{operand}] = {u32(val)} (0x{u32(val):X})"

        elif name == 'STORE_S':
            addr = self.stack.pop()
            val = self.stack.pop()
            self.regs[addr] = u32(val)
            return f"[{ip_before:3d}] STORE_S  reg[{addr}] = {u32(val)} (0x{u32(val):X})"

        elif name in ('ADD', 'SUB', 'MUL', 'SHR', 'SHL', 'AND', 'XOR', 'CMP_LT', 'CMP_EQ'):
            b = self.stack.pop()  # top
            a = self.stack.pop()  # second
            if   name == 'ADD':    r = u32(a + b)
            elif name == 'SUB':    r = u32(a - b)
            elif name == 'MUL':    r = u32(a * b)
            elif name == 'SHR':    r = u32(a >> (b & 31))
            elif name == 'SHL':    r = u32(a << (b & 31))
            elif name == 'AND':    r = u32(a & b)
            elif name == 'XOR':    r = u32(a ^ b)
            elif name == 'CMP_LT':
                r = 1 if (a if a < 0x80000000 else a - 0x100000000) < (b if b < 0x80000000 else b - 0x100000000) else 0
            elif name == 'CMP_EQ': r = 1 if a == b else 0
            self.stack.append(r)
            return f"[{ip_before:3d}] {name:8s} 0x{a:X} op 0x{b:X} = 0x{r:X}    stack={self._stack_str()}"

        elif name == 'JZ':
            cond = self.stack.pop()
            if cond == 0:
                self.ip = operand
                return f"[{ip_before:3d}] JZ       {operand}  (cond=0, JUMP)"
            return f"[{ip_before:3d}] JZ       {operand}  (cond={cond}, no jump)"

        elif name == 'JNZ':
            cond = self.stack.pop()
            if cond != 0:
                self.ip = operand
                return f"[{ip_before:3d}] JNZ      {operand}  (cond={cond}, JUMP)"
            return f"[{ip_before:3d}] JNZ      {operand}  (cond={cond}, no jump)"

        elif name == 'JMP':
            self.ip = operand
            return f"[{ip_before:3d}] JMP      {operand}"

        elif name == 'POP':
            self.stack.pop()
            return f"[{ip_before:3d}] POP"

        elif name == 'PRINT':
            val = self.stack.pop()
            return f"[{ip_before:3d}] PRINT    {val}"

        return f"[{ip_before:3d}] {name} (unhandled)"

    def _stack_str(self):
        if len(self.stack) <= 6:
            return str([f"0x{v:X}" for v in self.stack])
        return f"[...{len(self.stack)} items]"

# ============================================================
# 4. 运行
# ============================================================
if __name__ == '__main__':
    code = load_bytecode()

    # 反汇编
    lines = disassemble(code)
    print_disasm(lines)

    # 模拟执行 (用示例输入)
    test_input = 0xAABBCCDD
    low32 = test_input & 0xFFFFFFFF

    print(f"\n{'='*50}")
    print(f"模拟执行第一段 (处理 low32 = 0x{low32:08X})")
    print(f"输入字节: [{(low32>>24)&0xFF:02X}, {(low32>>16)&0xFF:02X}, {(low32>>8)&0xFF:02X}, {low32&0xFF:02X}]")
    print(f"{'='*50}")

    vm = VM(code, [low32, 0])
    vm.run(verbose=True)

    print(f"\n结果: reg[0] = 0x{vm.regs[0]:08X}")
    print(f"      reg[1] = 0x{vm.regs[1]:08X}")

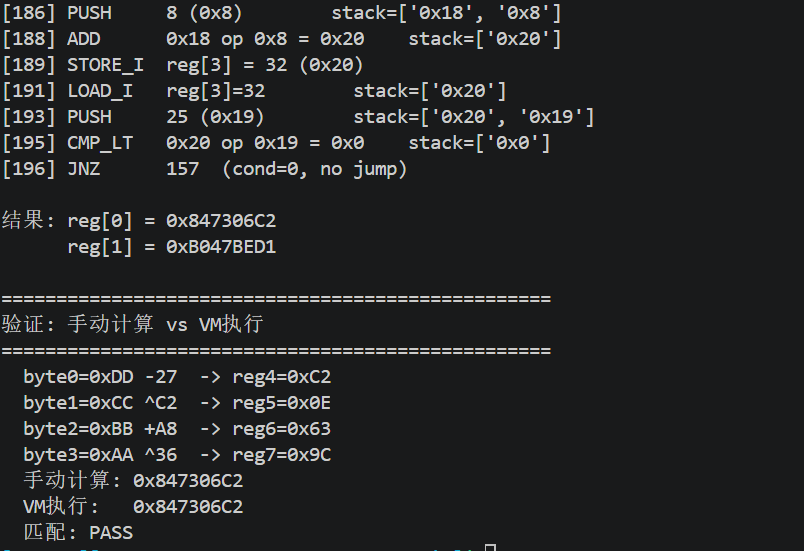

    # 验证
    print(f"\n{'='*50}")
    print("验证: 手动计算 vs VM执行")
    print(f"{'='*50}")
    b0, b1, b2, b3 = low32&0xFF, (low32>>8)&0xFF, (low32>>16)&0xFF, (low32>>24)&0xFF
    r4 = (b0 - 27) & 0xFF
    r5 = (b1 ^ 0xC2) & 0xFF
    r6 = (b2 + 0xA8) & 0xFF
    r7 = (b3 ^ 0x36) & 0xFF
    manual = 0
    for i, r in enumerate([r4, r5, r6, r7]):
        shift = i * 8
        manual |= ((r ^ shift) & 0xFF) << shift
    manual &= 0xFFFFFFFF

    print(f"  byte0=0x{b0:02X} -27  -> reg4=0x{r4:02X}")
    print(f"  byte1=0x{b1:02X} ^C2  -> reg5=0x{r5:02X}")
    print(f"  byte2=0x{b2:02X} +A8  -> reg6=0x{r6:02X}")
    print(f"  byte3=0x{b3:02X} ^36  -> reg7=0x{r7:02X}")
    print(f"  手动计算: 0x{manual:08X}")
    print(f"  VM执行:   0x{vm.regs[0]:08X}")
    print(f"  匹配: {'PASS' if manual == vm.regs[0] else 'FAIL'}")

import struct, sys

M32 = 0xFFFFFFFF
def u32(x): return x & M32

TEA_KEY = [0x7B777C63, 0xC56F6BF2, 0x2B670130, 0x76ABD7FE]
TEA_DELTA = 0xDEADBEEF
TEA_INIT_SUM = 0xBEEFBEEF
TEA_INIT_KS = 0x9D9D7DDE
TEA_ROUNDS = 64

def tea_encrypt(W21, W22):
    s, ks = TEA_INIT_SUM, TEA_INIT_KS
    for _ in range(TEA_ROUNDS):
        t = u32(u32(u32(W22 << 7) ^ (W22 >> 8)) + W22)
        W21 = u32(W21 + (u32(s - TEA_KEY[s & 3]) ^ t))
        t2 = u32(u32(u32(W21 << 8) ^ (W21 >> 7)) - W21)
        W22 = u32(W22 + (u32(ks + TEA_KEY[(ks >> 13) & 3]) ^ t2))
        s, ks = u32(s + TEA_DELTA), u32(ks + TEA_DELTA)
    return W21, W22

def tea_decrypt(W21, W22):
    s = u32(TEA_INIT_SUM + TEA_ROUNDS * TEA_DELTA)
    ks = u32(TEA_INIT_KS + TEA_ROUNDS * TEA_DELTA)
    for _ in range(TEA_ROUNDS):
        s, ks = u32(s - TEA_DELTA), u32(ks - TEA_DELTA)
        t2 = u32(u32(u32(W21 << 8) ^ (W21 >> 7)) - W21)
        W22 = u32(W22 - (u32(ks + TEA_KEY[(ks >> 13) & 3]) ^ t2))
        t = u32(u32(u32(W22 << 7) ^ (W22 >> 8)) + W22)
        W21 = u32(W21 - (u32(s - TEA_KEY[s & 3]) ^ t))
    return W21, W22

# VM byte transformations (from bytecode analysis)
# Opcodes: 0x01=ADD, 0x02=SUB, 0x13=SHR, 0x14=SHL, 0x15=AND, 0x16=XOR
#
# First half (reg[0]):  byte0-27, byte1^0xC2, byte2+0xA8, byte3^0x36
# Second half (reg[1]): byte0-0x2F, byte1^0xB6, byte2+0x37, byte3^0x98
# Reassembly: reg = sum( ((transformed_byte[i] ^ (i*8)) & 0xFF) << (i*8) )

def vm_forward(val32, sub_c, xor1_c, add_c, xor2_c):
    b0, b1, b2, b3 = val32 & 0xFF, (val32>>8)&0xFF, (val32>>16)&0xFF, (val32>>24)&0xFF
    regs = [(b0 - sub_c) & 0xFF, (b1 ^ xor1_c) & 0xFF, (b2 + add_c) & 0xFF, (b3 ^ xor2_c) & 0xFF]
    result = 0
    for i, r in enumerate(regs):
        shift = i * 8
        result |= ((r ^ shift) & 0xFF) << shift
    return u32(result)

def vm_inverse(target, sub_c, xor1_c, add_c, xor2_c):
    """Fully invertible since XOR replaces OR."""
    regs = []
    for i in range(4):
        shift = i * 8
        b = (target >> shift) & 0xFF
        regs.append(b ^ shift)  # undo the XOR with shift
    # regs = [reg4, reg5, reg6, reg7]
    # Undo byte transformations
    byte0 = (regs[0] + sub_c) & 0xFF
    byte1 = (regs[1] ^ xor1_c) & 0xFF   # XOR is its own inverse
    byte2 = (regs[2] - add_c) & 0xFF
    byte3 = (regs[3] ^ xor2_c) & 0xFF
    return byte0 | (byte1 << 8) | (byte2 << 16) | (byte3 << 24)

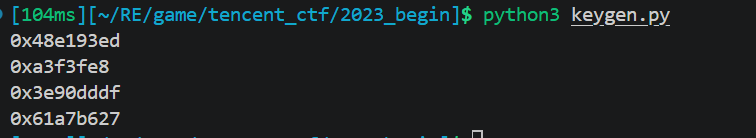

def keygen(random_id_str):
    target = int(random_id_str) & M32
    # Step 1: Reverse TEA
    reg0, reg1 = tea_decrypt(target, 0)
    # Step 2: Reverse VM for each half
    low32 = vm_inverse(reg0, 27, 0xC2, 0xA8, 0x36)
    high32 = vm_inverse(reg1, 47, 0xB6, 0x37, 0x98)
    key = (high32 << 32) | low32
    return key

def verify(key, random_id_str):
    target = int(random_id_str) & M32
    low32, high32 = key & M32, (key >> 32) & M32
    reg0 = vm_forward(low32, 27, 0xC2, 0xA8, 0x36)
    reg1 = vm_forward(high32, 47, 0xB6, 0x37, 0x98)
    enc = tea_encrypt(reg0, reg1)
    return enc == (target, 0)

if __name__ == '__main__':
    print(hex(tea_encrypt(0x3e90dddf, 0x61a7b627)[0]))
    print(hex(tea_encrypt(0x3e90dddf, 0x61a7b627)[1]))
    print(hex(tea_decrypt(0x48e193ed, 0xa3f3fe8)[0]))
    print(hex(tea_decrypt(0x48e193ed, 0xa3f3fe8)[1]))

libsec2023.so加密分析

通过上述代码的生成的key输入后发现无效果

hook_vadlidate.js

// Frida hook: 验证 SmallKeyboard 注册码是否通过
function readIl2cppString(ptr) {
    if (ptr.isNull()) return "<null>";
    try {
        var len = ptr.add(0x10).readInt();
        if (len <= 0 || len > 1024) return "<invalid>";
        return ptr.add(0x14).readUtf16String(len);
    } catch (e) {
        return "<error>";
    }
}

function waitForLib(callback) {
    var interval = setInterval(function () {
        var base = Module.findBaseAddress("libil2cpp.so");
        if (base) {
            clearInterval(interval);
            console.log("[+] libil2cpp.so: " + base);
            callback(base);
        }
    }, 500);
}

waitForLib(function (base) {

    // ============================================================
    // Hook SmallKeyboard__ValidateKey (0x465AB4)
    // 参数: this (X0), input_uint64 (X1)
    // ============================================================
    var validateKey = base.add(0x465AB4);
    Interceptor.attach(validateKey, {
        onEnter: function (args) {
            this.thisPtr = args[0];
            var inputLow = args[1].toUInt32();
            var inputHigh = this.context.x1.shr(32).toUInt32();

            // 读 this->oO0o0o0 (offset 0x38) = Token字符串
            var tokenPtr = this.thisPtr.add(0x38).readPointer();
            var token = readIl2cppString(tokenPtr);

            // 读 this->iIIIi (offset 0x40) = 用户输入字符串
            var inputPtr = this.thisPtr.add(0x40).readPointer();
            var inputStr = readIl2cppString(inputPtr);

            console.log("\n========================================");
            console.log("[*] ValidateKey 被调用");
            console.log("    Token (oO0o0o0): " + token);
            console.log("    用户输入 (iIIIi): " + inputStr);
            console.log("    input uint64: " + args[1]);
        },
        onLeave: function (retval) {
            // 验证后检查 SmallKeyboard.KeyboardNum
            // SmallKeyboard_TypeInfo 的 static_fields->KeyboardNum
            console.log("    返回值: " + retval);
        }
    });
    console.log("[+] Hooked ValidateKey at " + validateKey);

    // ============================================================
    // Hook 最终比较点 (0x465D14)
    // 此时 W22=加密后右半, W21=加密后左半(在W0里是ToUInt32的返回值)
    // 指令: CBNZ W22, fail  然后 CMP W0, W21
    // ============================================================
    var cmpAddr = base.add(0x465D14);
    Interceptor.attach(cmpAddr, {
        onEnter: function (args) {
            var w21 = this.context.x21.toUInt32();  // 加密后的左半
            var w22 = this.context.x22.toUInt32();  // 加密后的右半
            var w0 = this.context.x0.toUInt32();    // Convert.ToUInt32(token)

            console.log("    --- 最终比较 ---");
            console.log("    TEA加密后: W21=0x" + w21.toString(16) + " W22=0x" + w22.toString(16));
            console.log("    Token转uint32: W0=0x" + w0.toString(16) + " (" + w0 + ")");
            console.log("    W22==0? " + (w22 === 0 ? "YES" : "NO"));
            console.log("    W21==W0? " + (w21 === w0 ? "YES" : "NO"));
            console.log("    结果: " + (w22 === 0 && w21 === w0 ? "✓ PASS" : "✗ FAIL"));
            console.log("========================================");
        }
    });
    console.log("[+] Hooked 比较点 at " + cmpAddr);
    var setKeyboardNum = base.add(0x465D2C);
    Interceptor.attach(setKeyboardNum, {
        onEnter: function (args) {
            console.log("\n[!!!] KeyboardNum = -1  →  验证通过！无敌模式已激活！");
        }
    });
    console.log("[+] Hooked KeyboardNum写入 at " + setKeyboardNum);

    console.log("\n[+] 所有hook就绪，请在游戏中输入注册码并点击OK");
});

发现不能通过只能再debug下，hook_debug.js

// Debug hook: 追踪输入值在每一步的变化
function readIl2cppString(ptr) {
    if (ptr.isNull()) return "<null>";
    try {
        var len = ptr.add(0x10).readInt();
        if (len <= 0 || len > 1024) return "<invalid>";
        return ptr.add(0x14).readUtf16String(len);
    } catch (e) { return "<error>"; }
}

function waitForLib(cb) {
    var i = setInterval(function () {
        var b = Module.findBaseAddress("libil2cpp.so");
        if (b) { clearInterval(i); console.log("[+] base: " + b); cb(b); }
    }, 500);
}

waitForLib(function (base) {

    // Hook iI1Ii 键盘处理 (0x465880) - Enter 键处理
    var iI1Ii = base.add(0x465880);
    Interceptor.attach(iI1Ii, {
        onEnter: function(args) {
            this.thisPtr = args[0];
            var infoPtr = args[1];
            if (!infoPtr.isNull()) {
                var keyType = infoPtr.add(0x18).readInt();
                if (keyType == 2) { // EnterKey
                    var iIIIi = readIl2cppString(this.thisPtr.add(0x40).readPointer());
                    var token = readIl2cppString(this.thisPtr.add(0x38).readPointer());
                    console.log("\n[Enter键] iIIIi = \"" + iIIIi + "\", token = \"" + token + "\"");
                }
            }
        }
    });
    console.log("[+] Hooked iI1Ii at " + iI1Ii);

    // Hook SmallKeyboard__iI1Ii_4610736 的调用点
    // 在 iI1Ii 中: Convert.ToUInt64(iIIIi) 然后调用 iI1Ii_4610736(this, uint64)
    // iI1Ii_4610736 在 0x465AB0 (thunk) → 实际到 0x2A8 → sec2023
    var thunk = base.add(0x465AB0);
    Interceptor.attach(thunk, {
        onEnter: function(args) {
            // X0 = this, X1 = uint64 value
            var lo = this.context.x1.and(ptr(0xFFFFFFFF)).toUInt32();
            var hi = this.context.x1.shr(32).and(ptr(0xFFFFFFFF)).toUInt32();
            console.log("[iI1Ii_4610736] 被调用");
            console.log("  X1 raw: " + this.context.x1);
            console.log("  low32:  0x" + lo.toString(16));
            console.log("  high32: 0x" + hi.toString(16));
        }
    });
    console.log("[+] Hooked thunk at " + thunk);

    // 也 hook 实际的 ValidateKey 函数体 (0x465AB4)
    // 这个可能不会被调到（因为thunk跳走了）
    var validateKey = base.add(0x465AB4);
    try {
        Interceptor.attach(validateKey, {
            onEnter: function(args) {
                var lo = this.context.x1.and(ptr(0xFFFFFFFF)).toUInt32();
                var hi = this.context.x1.shr(32).and(ptr(0xFFFFFFFF)).toUInt32();
                console.log("[ValidateKey 0x465AB4] 被调用!");
                console.log("  X1 raw: " + this.context.x1);
                console.log("  low32:  0x" + lo.toString(16));
                console.log("  high32: 0x" + hi.toString(16));
            }
        });
        console.log("[+] Hooked ValidateKey body at " + validateKey);
    } catch(e) {
        console.log("[-] 无法hook 0x465AB4: " + e);
    }

    // Hook 0x2A8 (sec2023跳板目标)
    var jumpTarget = base.add(0x2A8);
    try {
        Interceptor.attach(jumpTarget, {
            onEnter: function(args) {
                var lo = this.context.x1.and(ptr(0xFFFFFFFF)).toUInt32();
                var hi = this.context.x1.shr(32).and(ptr(0xFFFFFFFF)).toUInt32();
                console.log("[0x2A8 sec2023入口] 被调用!");
                console.log("  X1 raw: " + this.context.x1);
                console.log("  low32:  0x" + lo.toString(16));
                console.log("  high32: 0x" + hi.toString(16));
            }
        });
        console.log("[+] Hooked 0x2A8");
    } catch(e) {
        console.log("[-] 无法hook 0x2A8: " + e);
    }

    // Hook VM执行前后 - 在 Oo0 构造函数中看传入的数据
    var oo0Ctor = base.add(0x4660E8);
    Interceptor.attach(oo0Ctor, {
        onEnter: function(args) {
            this.regsPtr = args[3]; // OOoOO0 数组
            if (!this.regsPtr.isNull()) {
                var r0 = this.regsPtr.add(0x20).readU32();
                var r1 = this.regsPtr.add(0x24).readU32();
                console.log("[Oo0构造] reg[0]=0x" + r0.toString(16) + " reg[1]=0x" + r1.toString(16));
            }
        }
    });
    console.log("[+] Hooked Oo0 ctor");

    // Hook VM dispatch 执行完毕后读结果
    var vmRun = base.add(0x46AD44);
    Interceptor.attach(vmRun, {
        onEnter: function(args) {
            this.vmObj = args[0];
        },
        onLeave: function(retval) {
            // 读 OOoOO0 (offset 0x18 in Oo0 object)
            var regsPtr = this.vmObj.add(0x18).readPointer();
            if (!regsPtr.isNull()) {
                var r0 = regsPtr.add(0x20).readU32();
                var r1 = regsPtr.add(0x24).readU32();
                console.log("[VM执行完] reg[0]=0x" + r0.toString(16) + " reg[1]=0x" + r1.toString(16));
            }
        }
    });
    console.log("[+] Hooked VM dispatcher");

    console.log("\n[+] 全部hook就绪，请输入注册码并点OK");
});

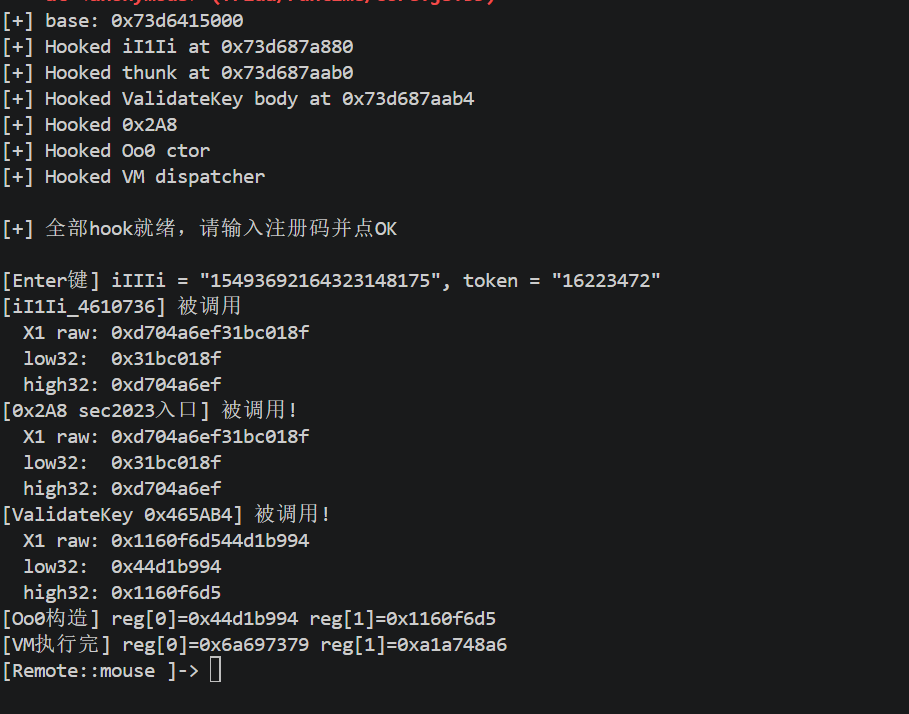

发现

thunk (0x465AB0): X1 = 0xd704a6ef31bc018f 原始输入

sec2023 (0x2A8): X1 = 0xd704a6ef31bc018f 还是一样

ValidateKey (0x465AB4): X1 = 0x1160f6d544d1b994 可能是被sec2023改了

sec2023 壳在 0x2A8到 0x465AB4 之间对输入做了额外变换。我们的 keygen 算出的值是给 0x465AB4 用的，但 sec2023 在传入前做了修改。

为什么会想到去hooksec2023?因为在字符串里看到了，此外loc_13B8DC8这个地址也跟进看过

可能得分析另一个so文件

thunk il2cpp+0x465AB0 传 X1 进去，il2cpp+0x465AB4 X1 被改变。中间发生什么未知

一些尝试和发现

第一次尝试（失败）：函数级 hook

sec2023 里大概有 17 个可疑函数，挨个 hook 看哪个被调。

hook_trace_sec2023.js

// 精准追踪: 按OK时 sec2023 中哪些函数被调用，X1在哪一步被修改
// 只在验证触发时启用跟踪

function waitForLib(cb) {
    var i = setInterval(function () {
        var b = Module.findBaseAddress("libil2cpp.so");
        if (b) { clearInterval(i); cb(b); }
    }, 500);
}

waitForLib(function (il2cpp) {
    var sec = Module.findBaseAddress("libsec2023.so");
    if (!sec) { console.log("[-] libsec2023.so not found"); return; }
    console.log("[+] libil2cpp.so: " + il2cpp);
    console.log("[+] libsec2023.so: " + sec);

    var tracing = false;
    var origX1 = null;

    // 在 thunk 处开始跟踪
    Interceptor.attach(il2cpp.add(0x465AB0), {
        onEnter: function(args) {
            tracing = true;
            origX1 = this.context.x1;
            console.log("\n=== 开始跟踪 X1=" + origX1 + " ===");
        }
    });

    // 在 ValidateKey 处结束跟踪
    Interceptor.attach(il2cpp.add(0x465AB4), {
        onEnter: function(args) {
            if (tracing) {
                console.log("=== 到达 ValidateKey X1=" + this.context.x1 + " ===");
                tracing = false;
            }
        }
    });

    // 用 Stalker 追踪从 thunk 到 ValidateKey 之间 sec2023 中执行的代码
    // 改用函数级 hook: hook sec2023 中所有被 sub_103D0 调用的关键函数
    // 以及 sub_35870 注册的 handler 函数

    var handlers = [
        0x37060, 0x3C6A4, 0x3DF74, 0x3A054, 0x24364,
        0x3852C, 0x38D9C, 0x3F2B0, 0x355F0, 0x35630,
        0x3566C, 0x356B0, 0x356C4, 0xFABC, 0x103D0,
        0x21098, 0x35870,
    ];

    handlers.forEach(function(off) {
        try {
            Interceptor.attach(sec.add(off), {
                onEnter: function(args) {
                    if (tracing) {
                        console.log("  [CALL] sec+0x" + off.toString(16) +
                            " X0=" + this.context.x0 +
                            " X1=" + this.context.x1 +
                            " X2=" + this.context.x2);
                    }
                },
                onLeave: function(retval) {
                    if (tracing) {
                        console.log("  [RET]  sec+0x" + off.toString(16) +
                            " ret=" + retval +
                            " X1=" + this.context.x1);
                    }
                }
            });
        } catch(e) {}
    });

    console.log("[+] 就绪 - 按OK触发");
});

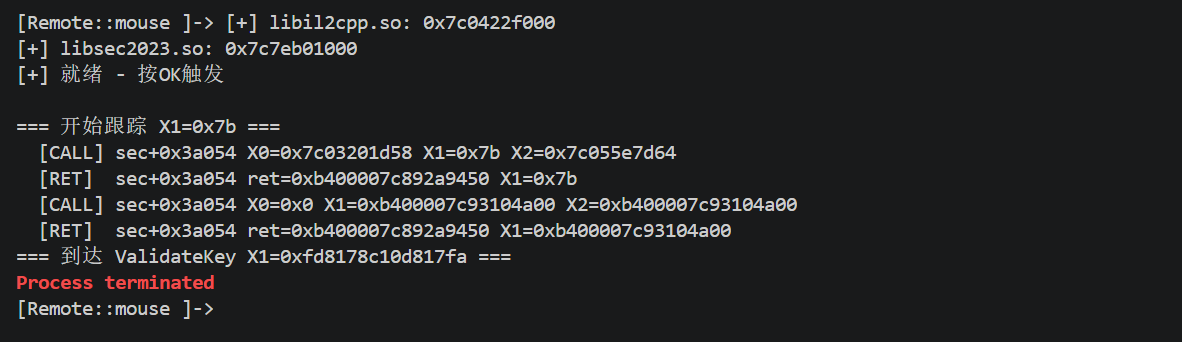

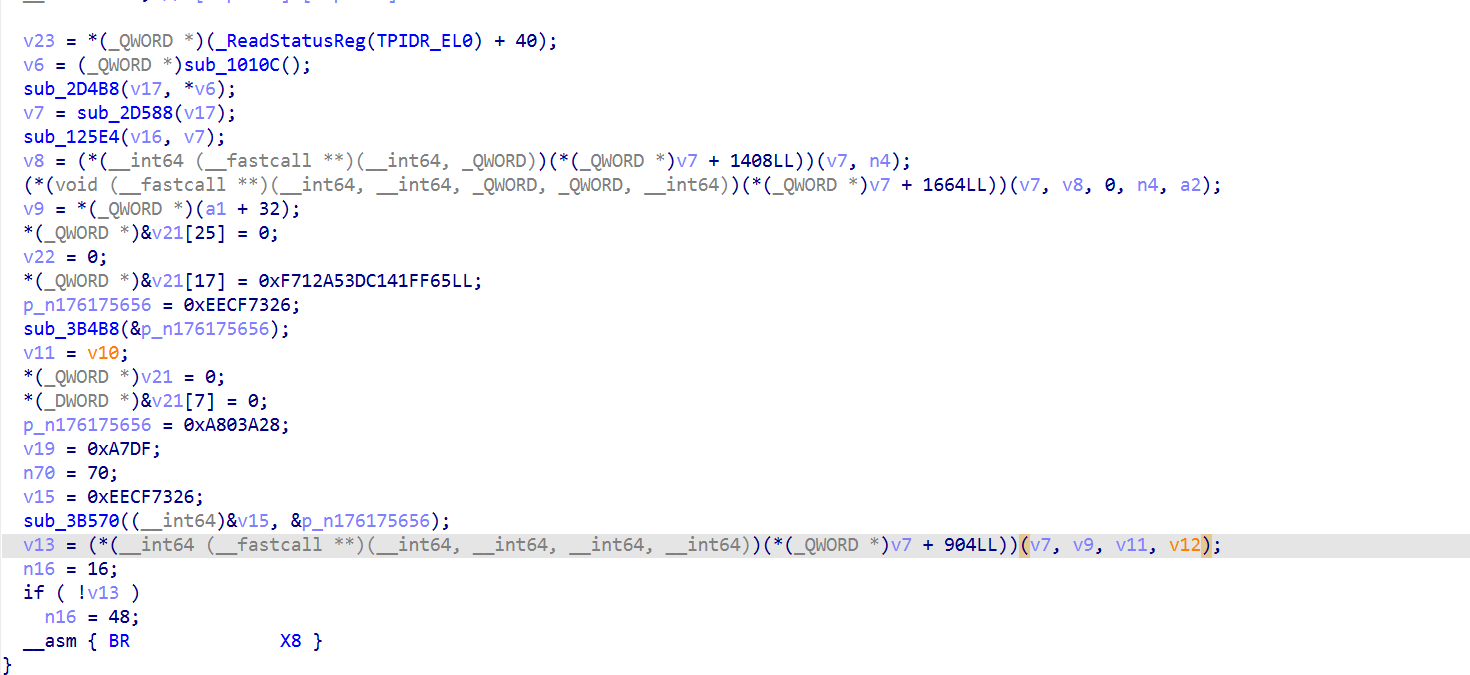

只有 sub_3A054（dispatcher）被触发。其他函数没进去 ,说明 sec2023 用了间接跳转（dispatcher 表），直接 hook 地址抓不到

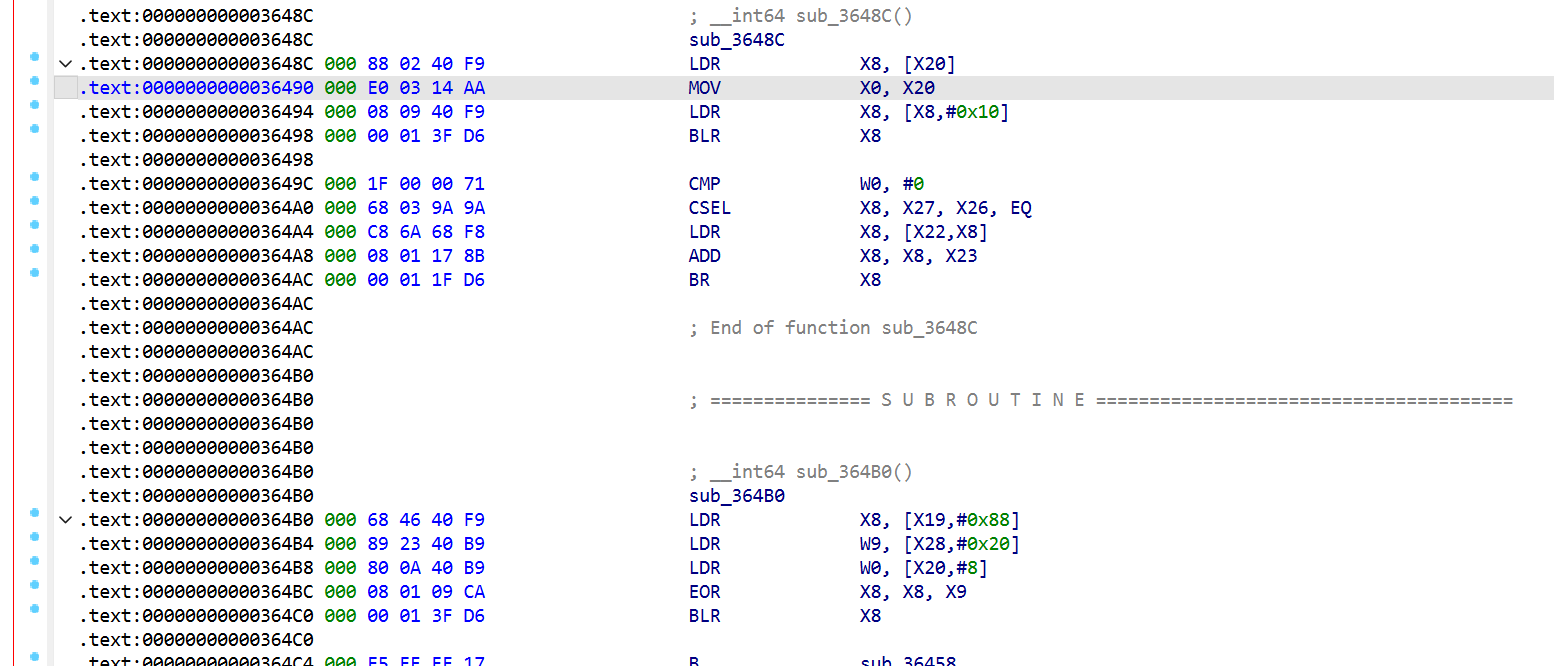

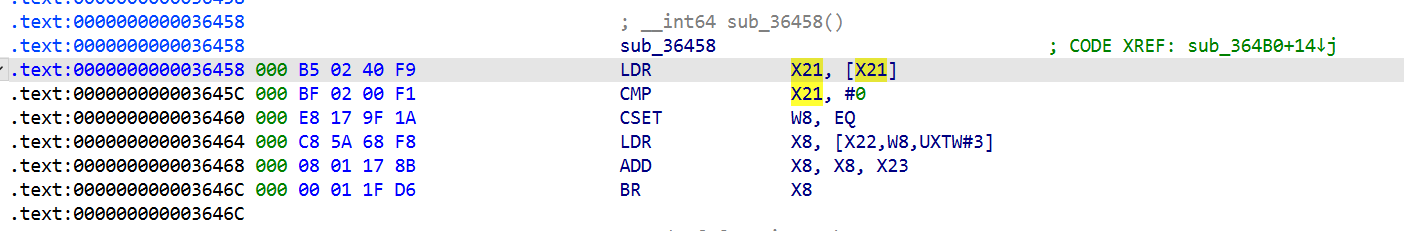

sec2023 用 VM-style dispatcher (BR X8/X10/X12)，调用是间接跳转，IDA 里看到的函数地址根本不是实际执行的入口。

第二次尝试：Stalker 指令级追踪

为什么用 Stalker: 静态分析看不到实际调用关系（因为间接跳转），只能动态跟。Frida Stalker 追踪 sec2023 范围内每条 BLR/BR/BL/RET，打印每条指令和 X1 的值。

hook_stalker.js

// 用 Stalker 追踪验证时 sec2023 执行的每个代码块
// 找出哪条指令修改了 X1

function waitForLib(cb) {
    var i = setInterval(function () {
        var b = Module.findBaseAddress("libil2cpp.so");
        if (b) { clearInterval(i); cb(b); }
    }, 500);
}

waitForLib(function (il2cpp) {
    var sec = Module.findBaseAddress("libsec2023.so");
    console.log("[+] il2cpp: " + il2cpp);
    console.log("[+] sec2023: " + sec);

    var secBase = sec;
    var secEnd = sec.add(0x80000); // 估算

    Interceptor.attach(il2cpp.add(0x465AB0), {
        onEnter: function (args) {
            var tid = this.threadId;
            var origX1 = this.context.x1;
            console.log("\n=== Stalker X1=" + origX1 + " ===");

            Stalker.follow(tid, {
                events: { call: false, ret: false, exec: false, block: false, compile: false },
                transform: function (iterator) {
                    var instruction;
                    while ((instruction = iterator.next()) !== null) {
                        var addr = instruction.address;
                        // 只关注 sec2023 范围内的 BLR 和 BR 指令
                        if (addr.compare(secBase) >= 0 && addr.compare(secEnd) < 0) {
                            var mnemonic = instruction.mnemonic;
                            if (mnemonic === 'blr' || mnemonic === 'br' || mnemonic === 'bl' || mnemonic === 'ret') {
                                var off = addr.sub(secBase).toUInt32();
                                iterator.putCallout(function (context) {
                                    var x1val = context.x1;
                                    // 打印 X1 变化时
                                    console.log("  " + ptr(off) + " " + mnemonic + " X1=" + x1val);
                                });
                            }
                        }
                        iterator.keep();
                    }
                }
            });
        }
    });

    // 在 ValidateKey 处停止 Stalker
    Interceptor.attach(il2cpp.add(0x465AB4), {
        onEnter: function (args) {
            Stalker.unfollow(this.threadId);
            console.log("=== Stalker停止 X1=" + this.context.x1 + " ===");
        }
    });

    console.log("[+] 就绪 - 按OK");
});

Stalker 是 Frida 里的动态指令跟踪器。

普通 Interceptor.attach()更像是在某个函数入口下断点进来时看参数出去时看返回值

而 Stalker是：

这个线程接下来执行的每一小段代码我都盯着

它跳到哪、call 到哪、ret 到哪，我都能跟

甚至执行到某条指令时，我还能插桩看寄存器

比 Interceptor更细粒度。

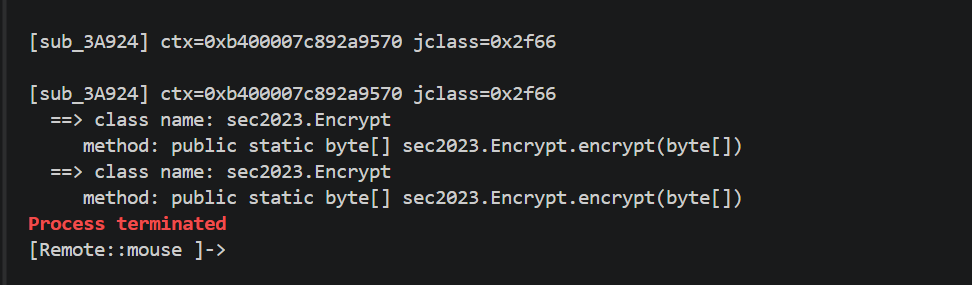

X1 在整个 chain 里基本不变，直到进入 sub_3A924 才被修改。发现调用链:

1
2
3

sub_3A924 → sub_3B4B8 (循环解密"encrypt")
          → sub_3B570 (循环解密"([B)[B")
          → JNI 调用 → X1 被改

[Remote::mouse ]-> [+] il2cpp: 0x7c0040f000
[+] sec2023: 0x7c7cb4a000
[+] 就绪 - 按OK

=== Stalker���动 X1=0x102cf ===
  0x31188 bl X1=0x102cf
  0x3b8fc bl X1=0x102cf
  0x3ba00 br X1=0x102cf
  0x3ba30 br X1=0x102cf
  0x3ba70 br X1=0x102cf
  0x3ba70 br X1=0x102cf
  0x3ba70 br X1=0x102cf
  0x3ba70 br X1=0x102cf
  0x3badc br X1=0x102cf
  0x3bb28 br X1=0x102cf
  0x3bb28 br X1=0x102cf
  0x3bb28 br X1=0x102cf
  0x3bb28 br X1=0x102cf
  0x3bb4c br X1=0x102cf
  0x3ba30 br X1=0x102cf
  0x3ba70 br X1=0x102cf
  0x3ba70 br X1=0x102cf
  0x3ba70 br X1=0x102cf
  0x3ba70 br X1=0x102cf
  0x3badc br X1=0x102cf
  0x3bb28 br X1=0x102cf
  0x3bb28 br X1=0x102cf
  0x3bb28 br X1=0x102cf
  0x3bb28 br X1=0x102cf
  0x3bb4c br X1=0x102cf
  0x3bb54 ret X1=0x102cf
  0x3b90c bl X1=0x102cf
  0x3a08c br X1=0x102cf
  0x3a0f8 ret X1=0x102cf
  0x3b920 bl X1=0x7c1a5d1d64
  0x3a96c bl X1=0x7c1a5d1d64
  0x10190 ret X1=0x7c1a5d1d64
  0x3a978 bl X1=0xb400007c93090380
  0x2d504 blr X1=0x7c1a5d1c30
  0x2d564 ret X1=0xb400007c68fce710
  0x3a980 bl X1=0xb400007c68fce710
  0x2d58c ret X1=0xb400007c68fce710
  0x3a990 bl X1=0xb400007c68efc040
  0x125ec ret X1=0xb400007c68efc040
  0x3a9a4 blr X1=0x4
  0x3a9c8 blr X1=0x39
  0x3a9f0 bl X1=0x7c1a5d1cd0
  0x3b508 br X1=0x7c1a5d1cd0
  0x3b54c br X1=0x7c1a5d1cd0
  0x3b568 ret X1=0x7c1a5d1cd0
  0x3aa28 bl X1=0x7c1a5d1cb8
  0x3b5c0 br X1=0x7c1a5d1cb8
  0x3b604 br X1=0x7c1a5d1cb8
  0x3b620 ret X1=0x7c1a5d1cb8
  0x3aa44 blr X1=0x2f66
Process terminated
[Remote::mouse ]->

Stalker打印的是 sec2023 基址的相对偏移和控制流指令。每条记录形如：

0x3a9f0 bl X1=… ← 在 sec2023+0x3a9f0 执行 BL 指令

之前 IDA 看 sub_3A924 反编译结果里有这几个关键点：

1
2
3

v10 = sub_3B4B8(&n176175656, v21);   // @ 0x3a9f8
v11 = sub_3B570(&v14, &n176175656);  // @ 0x3aa28
v12 = (*(vtable[113]))(v7, v9, v10, v11);  // GetStaticMethodID @ 0x3aa44

现在对照 Stalker：

0x3a9f0 bl X1=0x7c1a5d1cd0   ← BL 到 sub_3B4B8
0x3b508 br
0x3b54c br  ×19                ← sub_3B4B8 内部循环（dispatcher 跳转）
0x3b568 ret                    ← sub_3B4B8 返回
0x3aa28 bl X1=0x7c1a5d1cb8   ← BL 到 sub_3B570 (不同的 X1 buffer!)
0x3b5c0 br
0x3b604 br  ×20                ← sub_3B570 内部循环
0x3b620 ret                    ← sub_3B570 返回
0x3aa44 blr X1=0x2f66         ← BLR = GetStaticMethodID (X1=0x2f66 是 jclass handle)

推理步骤，不是 Stalker 直接看出来的：

1. 位置推断: 0x3a9f0 和 0x3aa28 两次 BL，正好对应 IDA 反编译里的 sub_3B4B8(...) 和 sub_3B570(...)。
2. 循环模式说明在处理字符串: sub_3B4B8 内部 0x3b54c br 出现 19 次，sub_3B570 内部 0x3b604 br 出现 20 次。这种重复 BR 到同一地址 = 循环体在跑。
3. 循环的目的是什么:
   - 下一个调用是 GetStaticMethodID(env, clazz, name_ptr, sig_ptr) (vtable[113])
   - 也就是说 sub_3B4B8/sub_3B570 的返回值是方法名指针和签名指针
   - IDA 里能看到这两个函数用大常量（0xF712A53DC141FF65 等）做 XOR 循环
   - 循环次数 ≈ 字符串长度：
       - "encrypt" = 7 字符 + 结尾 = 需要 ~7-8 次循环迭代
     - "([B)[B" = 6 字符 + 结尾 = 需要 ~6-7 次
   - 实际 BR 出现 19/20 次是因为每次循环体本身有多个 BR 跳转（典型 VM dispatch 一轮包含多次 BR）

4. 从后面的 hook_jni_call 确认:
   - JNI hook 抓到 [GetStaticMethodID] encrypt ([B)[B
   - 所以倒推回去，两次 BL 就是解密这两个字符串

Stalker trace 片段               推断的语义
────────────────────────        ──────────────
0x31188 bl X1=0x102cf           sub_31164 → sub_3B8CC(user_input)
0x3ba00-0x3bb54 (多次 br/ret)  sub_3B9D4 跑完预处理 (~4+4次 byte 循环)
0x3b920 bl X1=0x7c1a5d1d64     sub_3B8CC → sub_3A924(ctx, &v5, 4)
0x3a9a4 blr X1=0x4              JNI NewByteArray(size=4)
0x3a9c8 blr X1=0x39             JNI SetByteArrayRegion(arr, ...)
0x3a9f0 bl + 0x3b54c br ×19    解密 "encrypt" 方法名
0x3aa28 bl + 0x3b604 br ×20    解密 "([B)[B" 签名
0x3aa44 blr X1=0x2f66           JNI GetStaticMethodID → 得到 methodID

Stalker offset
BL/BR/RET 三类指令区分出函数调用 / dispatcher 跳转 / 函数返回
重复 BR 到同一地址 = 循环（可能是解密 / VM 指令 / byte-loop）
X1 值突变为大指针 = 作为函数调用的第 2 个参数传出去
JNI hook 结果反向确认（”抓到 encrypt 方法名 → 所以前面的解密循环产生的就是它”）

sub3A924 分析

v6 = sub_1010C();                  // 拿 JNI env
sub_2D4B8(v16, *v6);
v7 = sub_2D588(v16);                // v7 = JNIEnv*
v8 = (*(vtable[176]))(v7, a3);     // NewByteArray(a3)
(*(vtable[208]))(v7, v8, 0, a3, a2); // SetByteArrayRegion
// ... 解密方法名 ...
v10 = sub_3B4B8(&..., ...);  // 运行时解出 "encrypt"
v11 = sub_3B570(&..., ...);  // 运行时解出 "([B)[B"
v12 = (*(vtable[113]))(v7, v9, v10, v11);  // GetStaticMethodID

关键: 字符串是运行时用 XOR 常量（0xF712A53DC141FF65 等）解密的，静态看不到明文。

抓运行时的 JNI 调用,静态看不到方法名 ,动态 hook JNI vtable，截获 GetStaticMethodID 和字节数组操作

// 捕获 sub_3A924 中的 JNI 调用：方法名、签名、byte[] 内容
function waitForLib(cb) {
    var i = setInterval(function () {
        var b = Module.findBaseAddress("libil2cpp.so");
        if (b) { clearInterval(i); cb(b); }
    }, 500);
}

waitForLib(function (il2cpp) {
    var sec = Module.findBaseAddress("libsec2023.so");

    // Hook sub_3A924 入口+出口，记录输入和输出
    Interceptor.attach(sec.add(0x3A924), {
        onEnter: function(args) {
            console.log("\n[sub_3A924] a1=" + args[0] + " a2=" + args[1] + " a3=" + args[2]);
            this.buf = args[1];
            this.size = args[2].toUInt32();
            if (this.size > 0 && this.size < 256) {
                console.log("  IN  bytes[" + this.size + "]: " + hexdump(this.buf, {length: this.size, ansi: false}));
            }
        },
        onLeave: function(retval) {
            if (this.size > 0 && this.size < 256) {
                console.log("  OUT bytes[" + this.size + "]: " + hexdump(this.buf, {length: this.size, ansi: false}));
            }
        }
    });

    // Hook JNI GetMethodID / GetStaticMethodID 来捕获方法名
    Java.perform(function() {
        var env = Java.vm.getEnv();
        var vtable = env.handle.readPointer();

        // GetMethodID at vtable index 33 (offset 264)
        Interceptor.attach(vtable.add(33 * Process.pointerSize).readPointer(), {
            onEnter: function(args) {
                var name = args[2].readCString();
                var sig = args[3].readCString();
                console.log("[GetMethodID] " + name + " " + sig);
            }
        });

        // GetStaticMethodID at vtable index 113 (offset 904)
        Interceptor.attach(vtable.add(113 * Process.pointerSize).readPointer(), {
            onEnter: function(args) {
                var name = args[2].readCString();
                var sig = args[3].readCString();
                console.log("[GetStaticMethodID] " + name + " " + sig);
            }
        });

        // CallObjectMethod at vtable index 34 (offset 272)
        Interceptor.attach(vtable.add(34 * Process.pointerSize).readPointer(), {
            onEnter: function(args) {
                console.log("[CallObjectMethod] obj=" + args[1] + " methodID=" + args[2]);
            },
            onLeave: function(retval) {
                console.log("[CallObjectMethod] return=" + retval);
            }
        });

        // 也 hook NewByteArray 和 GetByteArrayRegion 来看返回的数据
        // NewByteArray at index 176 (offset 1408)
        Interceptor.attach(vtable.add(176 * Process.pointerSize).readPointer(), {
            onEnter: function(args) {
                console.log("[NewByteArray] size=" + args[1]);
            }
        });

        // GetByteArrayRegion at index 200 (offset 1600)
        Interceptor.attach(vtable.add(200 * Process.pointerSize).readPointer(), {
            onEnter: function(args) {
                this.buf = args[4];
                this.len = args[3].toUInt32();
            },
            onLeave: function(retval) {
                if (this.len > 0 && this.len < 256) {
                    console.log("[GetByteArrayRegion] output bytes[" + this.len + "]: " + hexdump(this.buf, {length: this.len}));
                }
            }
        });

        // CallStaticObjectMethod at index 114 (offset 912)
        Interceptor.attach(vtable.add(114 * Process.pointerSize).readPointer(), {
            onEnter: function(args) {
                console.log("[CallStaticObjectMethod] class=" + args[1] + " methodID=" + args[2] + " arg0=" + args[3]);
            },
            onLeave: function(retval) {
                console.log("[CallStaticObjectMethod] return=" + retval);
            }
        });

        // GetByteArrayElements at index 184 (offset 1472)
        Interceptor.attach(vtable.add(184 * Process.pointerSize).readPointer(), {
            onEnter: function(args) {
                this.arr = args[1];
            },
            onLeave: function(retval) {
                // 读返回的字节指针,尝试读 4-16 字节看看
                try {
                    console.log("[GetByteArrayElements] arr=" + this.arr + " ptr=" + retval + " bytes: " + hexdump(retval, {length: 16, ansi: false}));
                } catch(e) {
                    console.log("[GetByteArrayElements] read err: " + e);
                }
            }
        });

        // SetByteArrayRegion at index 208 (offset 1664)
        Interceptor.attach(vtable.add(208 * Process.pointerSize).readPointer(), {
            onEnter: function(args) {
                var len = args[3].toUInt32();
                console.log("[SetByteArrayRegion] len=" + len);
                if (len > 0 && len < 256) {
                    console.log("  data: " + hexdump(args[4], {length: len}));
                }
            }
        });
    });

    console.log("[+] 就绪 - 按OK");
});

为什么 hook 这些:

GetStaticMethodID (vtable[113]) → 抓方法名和签名
NewByteArray (vtable[176]) → 看分配的大小
SetByteArrayRegion (vtable[208]) → 看传给 Java 的字节
GetByteArrayElements (vtable[184]) → 看 Java 返回的字节

sec2023把 X1 拆成 2 段 4 字节，各自调 Java 静态方法 encrypt(byte[]) -> byte[] ，合并回 X1

确认输入输出对齐

在分析 sec2023 黑盒，已经知道：

用户输入 ulong 进去
sec2023 里调了两次 Java encrypt([B)[B]，每次处理 4 字节
出来后 X1 变成了另一个 64-bit 值

但不知道sec2023 内部是怎么把两次 encrypt 的结果拼接成新 X1 的。

可能的拼法有好几种：

方案 A: X1’ = (encrypt[0] << 32) | encrypt[1] → hi=out0, lo=out1

方案 B: X1’ = (encrypt[1] << 32) | encrypt[0] → hi=out1, lo=out0

方案 C: X1’ 的字节 = out0 字节 ‖ out1 字节（内存拼接，不管uint32）

方案 D: 更复杂的交错/异或

因此这里是验证这个的

hook_verify_encrypt.js

// 对齐验证: thunk X1 原值 → 2次 encrypt 输出 → ValidateKey X1 变换后值
// 按 OK 一次，看三组数据是否吻合

function waitForLib(cb) {
    var i = setInterval(function () {
        var b = Module.findBaseAddress("libil2cpp.so");
        if (b) { clearInterval(i); cb(b); }
    }, 500);
}

function hex8(x) { return ("00000000" + (x >>> 0).toString(16)).slice(-8); }

waitForLib(function (il2cpp) {
    var sec = Module.findBaseAddress("libsec2023.so");

    var encryptCalls = [];
    var thunkX1 = null;

    // 1) thunk 入口: 原始 X1
    Interceptor.attach(il2cpp.add(0x465AB0), {
        onEnter: function(args) {
            thunkX1 = this.context.x1;
            encryptCalls = [];
            var lo = thunkX1.and(ptr(0xFFFFFFFF)).toUInt32();
            var hi = thunkX1.shr(32).and(ptr(0xFFFFFFFF)).toUInt32();
            console.log("\n========== 开始 ==========");
            console.log("[thunk]    X1 = 0x" + hex8(hi) + "_" + hex8(lo) + "  (hi_lo)");
        }
    });

    // 2) sub_3A924: encrypt 输入
    Interceptor.attach(sec.add(0x3A924), {
        onEnter: function(args) {
            var buf = args[1];
            var size = args[2].toUInt32();
            if (size === 4) {
                var inBytes = buf.readByteArray(4);
                var inArr = new Uint8Array(inBytes);
                var inHex = "";
                for (var i = 0; i < 4; i++) inHex += ("0" + inArr[i].toString(16)).slice(-2);
                console.log("[encrypt " + encryptCalls.length + "] IN  = " + inHex);
                this.callIdx = encryptCalls.length;
                encryptCalls.push({in: inHex, out: null});
            }
        }
    });

    // 3) 拦截 GetByteArrayElements 抓 encrypt 输出
    Java.perform(function() {
        var env = Java.vm.getEnv();
        var vtable = env.handle.readPointer();
        Interceptor.attach(vtable.add(184 * Process.pointerSize).readPointer(), {
            onLeave: function(retval) {
                try {
                    var bytes = retval.readByteArray(4);
                    var arr = new Uint8Array(bytes);
                    var hex = "";
                    for (var i = 0; i < 4; i++) hex += ("0" + arr[i].toString(16)).slice(-2);
                    // 记录到最后一次 encrypt 调用
                    if (encryptCalls.length > 0 && encryptCalls[encryptCalls.length-1].out === null) {
                        encryptCalls[encryptCalls.length-1].out = hex;
                        console.log("[encrypt " + (encryptCalls.length-1) + "] OUT = " + hex);
                    }
                } catch(e) {}
            }
        });
    });

    // 4) ValidateKey: 变换后 X1
    Interceptor.attach(il2cpp.add(0x465AB4), {
        onEnter: function(args) {
            var x1 = this.context.x1;
            var lo = x1.and(ptr(0xFFFFFFFF)).toUInt32();
            var hi = x1.shr(32).and(ptr(0xFFFFFFFF)).toUInt32();
            console.log("[ValidateKey] X1 = 0x" + hex8(hi) + "_" + hex8(lo) + "  (hi_lo)");

            // 对齐验证
            if (encryptCalls.length >= 2 && encryptCalls[0].out && encryptCalls[1].out) {
                console.log("\n--- 对齐验证 ---");
                console.log("encrypt[0] IN:  " + encryptCalls[0].in + "  OUT: " + encryptCalls[0].out);
                console.log("encrypt[1] IN:  " + encryptCalls[1].in + "  OUT: " + encryptCalls[1].out);
                var combo1 = encryptCalls[0].out + encryptCalls[1].out;
                var combo2 = encryptCalls[1].out + encryptCalls[0].out;
                var x1Hex = hex8(hi) + hex8(lo);
                var x1HexSwap = hex8(lo) + hex8(hi);
                console.log("X1 (hi|lo): " + x1Hex);
                console.log("X1 (lo|hi): " + x1HexSwap);
                console.log("out0|out1:  " + combo1 + "  " + (combo1===x1Hex?"MATCH hi|lo":combo1===x1HexSwap?"MATCH lo|hi":""));
                console.log("out1|out0:  " + combo2 + "  " + (combo2===x1Hex?"MATCH hi|lo":combo2===x1HexSwap?"MATCH lo|hi":""));
            }
            console.log("========== 结束 ==========\n");
        }
    });

    console.log("[+] 就绪 - 按一次 OK");
});

证明 X1’ = (encrypt(v4[0]) | encrypt(v4[1]))，且搞清字节序。

这验证确认了 sec2023 的拼接规则:

1 2	X1' = bswap32(encrypt[1]) : bswap32(encrypt[0]) ↑ 放 hi ↑ 放 lo

enc0_output = bswap32(X1_target.lo)   # 逆第 1 次拼接
enc1_output = bswap32(X1_target.hi)   # 逆第 2 次拼接
v4[0] = java_decrypt(enc0_output)     # 逆 encrypt
v4[1] = java_decrypt(enc1_output)

Java encrypt

再classes.dex 没找到encrypt相关信息，因此可能是被动态解密出来执行的，继续分析so层代码,既然 sub_3A924 的 a1+32 存着 jclass（从反编译看到 v9 = *(a1+32)），直接读出来用 Class.getName() 反查。

hook_resolve_class.js

// 读 sub_3A924 的 context (a1+32) 处的 jclass,用 Java 反射查类名
function waitForLib(cb) {
    var i = setInterval(function () {
        var b = Module.findBaseAddress("libsec2023.so");
        if (b) { clearInterval(i); cb(b); }
    }, 500);
}

waitForLib(function(sec) {
    Java.perform(function() {
        var Class = Java.use("java.lang.Class");

        Interceptor.attach(sec.add(0x3A924), {
            onEnter: function(args) {
                try {
                    var ctx = args[0];                 // a1
                    var jclassPtr = ctx.add(32).readPointer();  // *(a1+32)
                    console.log("\n[sub_3A924] ctx=" + ctx + " jclass=" + jclassPtr);
                    Java.scheduleOnMainThread(function() {
                        try {
                            var cls = Java.cast(jclassPtr, Class);
                            console.log("  ==> class name: " + cls.getName());
                            // 列出所有方法
                            var methods = cls.getDeclaredMethods();
                            for (var i = 0; i < methods.length; i++) {
                                console.log("     method: " + methods[i].toString());
                            }
                        } catch(e) {
                            console.log("  cast err: " + e);
                        }
                    });
                } catch(e) { console.log("err: " + e); }
            }
        });
    });
    console.log("[+] 就绪 - 按一次 OK");
});

类名 sec2023.Encrypt，但没找到这个类

手动dump(当然可以用frida-dexdump，当时忘记了)

从进程内存扫描 dex\n035\0 magic (DEX header 标识)，把整个 DEX 结构 dump 下来。

var magic = [0x64, 0x65, 0x78, 0x0a, 0x30, 0x33, 0x35, 0x00];

Memory.scanSync(range.base, range.size, pattern);

dump_encrypt_dex.js

// 从内存找 encrypt.dex: 扫描进程内存中的 DEX magic 'dex\n035\0'
Java.perform(function() {
    // 找所有 rw 段,搜索 DEX magic
    var magic = [0x64, 0x65, 0x78, 0x0a, 0x30, 0x33, 0x35, 0x00];
    var pattern = magic.map(function(b){return ("0"+b.toString(16)).slice(-2);}).join(" ");
    console.log("scanning for DEX magic...");

    var ranges = Process.enumerateRanges({protection: 'r--', coalesce: true})
               .concat(Process.enumerateRanges({protection: 'rw-', coalesce: true}));

    var found = [];
    ranges.forEach(function(r) {
        if (r.size > 500*1024*1024) return;
        try {
            var res = Memory.scanSync(r.base, r.size, pattern);
            res.forEach(function(h) { found.push(h.address); });
        } catch(e) {}
    });
    console.log("found " + found.length + " DEX headers");

    // 每个 DEX: file_size at offset 0x20 (4 bytes LE)
    for (var i = 0; i < found.length; i++) {
        var addr = found[i];
        try {
            var fileSize = addr.add(0x20).readU32();
            if (fileSize < 0x20 || fileSize > 10*1024*1024) continue;
            // 读 header, 检查看起来像真 DEX
            console.log("[" + i + "] " + addr + " size=" + fileSize);
            // 只 dump < 1MB 的, 避免 classes.dex (197KB 可能也中)
            var bytes = addr.readByteArray(fileSize);
            send({type: "dex", idx: i, addr: addr.toString(), size: fileSize}, bytes);
        } catch(e) {}
    }
    console.log("done");
});

反编译出源码

源码是控制流扁平化 + 字符串哈希 switch

只看每个 case 的实际数据操作（忽略状态跳转）:

def encrypt(b):           # 4 bytes in
    x = int.from_bytes(b, 'big')                       # 大端拼 uint32
    x = ((x >> 7) | ((x & 0x7f) << 25)) & 0xFFFFFFFF   # rotr 7 bits
    out = list(x.to_bytes(4, 'big'))
    KEY = [0x32, 0xCD, 0xFF, 0x98]
    for i in range(4):
        out[i] = ((out[i] ^ KEY[i]) + i) & 0xff         # XOR key + add index
    return bytes(out)

输入 6d 94 ca e4:
1. x = 0x6d94cae4
2. rotr(x, 7) = 0xC8DB2995
3. BE bytes: C8 DB 29 95
4. 0xC8^0x32+0 = FA  0xDB^0xCD+1 = 17  0x29^0xFF+2 = D8  0x95^0x98+3 = 10
输出 fa 17 d8 10 — 与 hook 抓的完全一致。

sub_3B9D4 分析 [巧解]

sub_3A924 是真正调 Java encrypt 的函数

sub_3B8CC中调用了sub_3A924

分析到3B9D4(预处理函数)

静态追 VM dispatcher太大了，都是一块块的函数，需要处理，sub_3B9D4 看起来只有 BR X10（一个间接跳转）。手动追每条 BR 的目标会太慢。

可以用Unicorn 模拟，加载 libsec2023.so 到 Unicorn，直接跑 sub_3B9D4

坑点： raw .so 里的 dispatcher 表项是相对偏移，不是绝对地址。没应用重定位就跑，指令会跳到错误地址崩溃。可以用 pyelftools 解析 ELF 的 R_AARCH64_RELATIVE 重定位，加载后应用：
1
2
for off, addend in relocs:
    struct.pack_into("<Q", image, off, LIB_BASE + addend)

emu_sub_3B9D4.py,这个函数用来探测用的，探测是否使用成功这个unicorn跑出来的结果是否跟frida hook的结果一致为后面打基础的

#!/usr/bin/env python3
import struct, sys
from unicorn import *
from unicorn.arm64_const import *
from elftools.elf.elffile import ELFFile
from elftools.elf.relocation import RelocationSection

LIB_PATH = "/tmp/apk_full/lib/arm64-v8a/libsec2023.so"
LIB_BASE = 0x100000000

with open(LIB_PATH, "rb") as f:
    lib_data_raw = f.read()
    f.seek(0)
    elf = ELFFile(f)
    # 加载所有 PT_LOAD segments 到一个平坦镜像
    max_vaddr = 0
    segs = []
    for seg in elf.iter_segments():
        if seg['p_type'] == 'PT_LOAD':
            va = seg['p_vaddr']
            sz = seg['p_memsz']
            data = seg.data()
            segs.append((va, data, sz))
            max_vaddr = max(max_vaddr, va + sz)
    # 收集 RELATIVE 重定位
    relocs = []
    for section in elf.iter_sections():
        if isinstance(section, RelocationSection):
            for rel in section.iter_relocations():
                info_type = rel['r_info_type']
                if info_type == 1027:  # R_AARCH64_RELATIVE
                    relocs.append((rel['r_offset'], rel['r_addend']))
print(f"lib size (max_vaddr) = 0x{max_vaddr:x}")
print(f"RELATIVE relocations: {len(relocs)}")

# 构造平坦镜像
image_size = (max_vaddr + 0xFFF) & ~0xFFF
image = bytearray(image_size)
for va, data, sz in segs:
    image[va:va+len(data)] = data

# 应用 RELATIVE 重定位: *(offset) = LIB_BASE + addend
for off, addend in relocs:
    struct.pack_into("<Q", image, off, LIB_BASE + addend)


def emulate_preprocess(hi, lo, verbose=False):
    mu = Uc(UC_ARCH_ARM64, UC_MODE_ARM)
    mu.mem_map(LIB_BASE, image_size)
    mu.mem_write(LIB_BASE, bytes(image))

    STACK_BASE = 0x200000000
    STACK_SIZE = 0x10000
    mu.mem_map(STACK_BASE, STACK_SIZE)
    sp = STACK_BASE + STACK_SIZE - 0x200

    # TLS for stack canary (TPIDR_EL0+40)
    TLS_BASE = 0x300000000
    mu.mem_map(TLS_BASE, 0x1000)
    mu.mem_write(TLS_BASE + 40, struct.pack("<Q", 0xCAFEBABEDEADBEEF))
    mu.reg_write(UC_ARM64_REG_TPIDR_EL0, TLS_BASE)

    # v4 数组在栈上
    v4_addr = sp - 0x20
    mu.mem_write(v4_addr, struct.pack("<III", hi, lo, 0))

    mu.reg_write(UC_ARM64_REG_X0, v4_addr)
    mu.reg_write(UC_ARM64_REG_SP, sp)
    DONE_MARK = 0xDEAD0000
    mu.reg_write(UC_ARM64_REG_LR, DONE_MARK)

    stats = {'count': 0, 'last_pc': 0}
    if verbose:
        def code_hook(uc, addr, size, user_data):
            user_data['count'] += 1
            user_data['last_pc'] = addr
            if user_data['count'] <= 50 or user_data['count'] % 100 == 0:
                print(f"  [{user_data['count']:4d}] 0x{addr - LIB_BASE:x}")
        mu.hook_add(UC_HOOK_CODE, code_hook, stats)
    else:
        def code_hook(uc, addr, size, user_data):
            user_data['count'] += 1
            user_data['last_pc'] = addr
        mu.hook_add(UC_HOOK_CODE, code_hook, stats)

    try:
        mu.emu_start(LIB_BASE + 0x3B9D4, DONE_MARK, timeout=5*1000*1000, count=500000)
    except UcError as e:
        rel = stats['last_pc'] - LIB_BASE
        print(f"  UcError: {e}  last_pc=0x{rel:x}  count={stats['count']}")
        return None

    v4_out = mu.mem_read(v4_addr, 12)
    out0, out1, out2 = struct.unpack("<III", v4_out)
    print(f"  OUT: [0]=0x{out0:08x} [1]=0x{out1:08x} [2]=0x{out2:08x}  ({stats['count']} insns)")
    return (out0, out1, out2)


if __name__ == "__main__":
    print("Test 1: hi=0 lo=0x0000d828  (expect v4[1]=0x6d94020c)")
    emulate_preprocess(0, 0x0000d828, verbose=True)
    print("\nTest 2: hi=0 lo=0x000102b9  (expect v4[1]=0x6d95c89d)")
    emulate_preprocess(0, 0x000102b9)
    print("\nTest 3: hi=0 lo=0x00a98ac7  (expect v4[1]=0x6d3d50ab)")
    emulate_preprocess(0, 0x00a98ac7)

用unicorn做函数结构探测，sub_3B9D4 对我们是个黑盒：能给它输入，能拿到输出，但不知道里面在算什么。

目标是搞清楚这个黑盒的结构，最好能写个 Python 版本代替它。最懒的方法不用小变化戳一下函数，看它怎么反应。改一个比特，看输出变多少，从而猜函数的结构

#!/usr/bin/env python3
"""Single-bit flip 测试: 探测 sub_3B9D4 的函数结构
结论: 每个输入字节只影响对应位置的输出字节 → 可以建字节查找表
"""
import struct
import sec2023
from unicorn import *
from unicorn.arm64_const import *

mu = Uc(UC_ARCH_ARM64, UC_MODE_ARM)
mu.mem_map(sec2023.LIB_BASE, sec2023._IMAGE_SIZE)
mu.mem_write(sec2023.LIB_BASE, sec2023._IMAGE)
mu.mem_map(sec2023.STACK_BASE, sec2023.STACK_SIZE)
mu.mem_map(sec2023.TLS_BASE, 0x1000)
mu.mem_write(sec2023.TLS_BASE + 40, struct.pack("<Q", 0xCAFEBABE))
mu.reg_write(UC_ARM64_REG_TPIDR_EL0, sec2023.TLS_BASE)

sp = sec2023.STACK_BASE + sec2023.STACK_SIZE - 0x200
v4_addr = sp - 0x20

def f(hi, lo):
    """调用 sub_3B9D4, 返回 v4[1]"""
    mu.mem_write(v4_addr, struct.pack("<III", hi, lo, 0))
    mu.reg_write(UC_ARM64_REG_X0, v4_addr)
    mu.reg_write(UC_ARM64_REG_SP, sp)
    mu.reg_write(UC_ARM64_REG_LR, 0xDEAD0000)
    mu.emu_start(sec2023.LIB_BASE + 0x3B9D4, 0xDEAD0000, count=500000)
    return struct.unpack("<III", mu.mem_read(v4_addr, 12))[1]


if __name__ == "__main__":
    print("=== single-bit flip tests (hi=0, 翻转 lo 的某一位) ===")
    base = f(0, 0)
    print(f"f(0, 0) = 0x{base:08x}  (base)\n")
    for bit in range(32):
        val = 1 << bit
        out = f(0, val)
        diff = out ^ base
        which_byte = None
        for bp in range(4):
            if diff & (0xff << (bp*8)):
                which_byte = bp
                break
        print(f"bit {bit:2d} (val={val:#010x}) → out=0x{out:08x}  diff=0x{diff:08x}  影响byte[{which_byte}]")

    print("\n=== 结论 ===")
    print("bits 0-7   → 只影响 byte[0]")
    print("bits 8-15  → 只影响 byte[1]")
    print("bits 16-23 → 只影响 byte[2]")
    print("bits 24-31 → 只影响 byte[3]")
    print("→ 函数是字节独立的, 可以用 4 张 256-entry 查找表表示")

基准点:先跑一次，记下啥都不输入的结果:f(0, 0) = 0x6d94cae4 base（基准输出）

然后每次只翻一位（bit flip），看输出变什么:

输入 lo = 0x00000001 (只在 bit 0 上是 1，其他 31 位都是 0)

基准: 0x6d94cae4 = 0110_1101 1001_0100 1100_1010 1110_0100

新的: 0x6d94cae5 = 0110_1101 1001_0100 1100_1010 1110_0101

只差一位

输入 byte[i] 只影响输出 byte[i]，其他字节不受影响

假如 sub_3B9D4 是加密算法（AES、DES），翻 1 位输入，整个 32 位输出都会变得面目全非（这叫扩散，是加密算法的特征）。

但我们看到的情况翻 1 位输入，只影响 1 个字节输出。这说明 sub_3B9D4 不是加密，而是 4 个独立的字节变换串起来,每个 fi 是一个独立的 256 → 256 映射函数。

既然是 4 个独立的 f0, f1, f2, f3，每个只关心一个字节（256 种可能），穷举所有输入就能完整记录函数行为：

for bp in 0..3:                  # 4 个字节位置
     for val in 0..255:           # 该位置的所有可能字节值
         测试输入 val << (bp*8)
         记录: table[bp][val] = 对应输出字节

总共 4 × 256 = 1024 次调用 Unicorn，就能完整覆盖这个函数。

然后这 4 张表就代替了整个 sub_3B9D4 函数，keygen 只需要查表，不需要 Unicorn 了。注意是 8 个 bit 影响同一个字节。这 8 个 bit 合起来就是输入 byte[0]。输入 byte[i] 的 8 个 bit 合起来，决定输出 byte[i] 的 8 个 bit，是一一对应的关系。

输入 byte[0] (8 bit 当一个 0~~255 的数) → 输出 byte[0] (8 bit 当一个 0~~255 的数)

建表

#!/usr/bin/env python3
import struct, json
import sec2023
from unicorn import *
from unicorn.arm64_const import *

# 初始化 Unicorn (只创建一次, 重用 mu 实例)
mu = Uc(UC_ARCH_ARM64, UC_MODE_ARM)
mu.mem_map(sec2023.LIB_BASE, sec2023._IMAGE_SIZE)
mu.mem_write(sec2023.LIB_BASE, sec2023._IMAGE)
mu.mem_map(sec2023.STACK_BASE, sec2023.STACK_SIZE)
mu.mem_map(sec2023.TLS_BASE, 0x1000)
mu.mem_write(sec2023.TLS_BASE + 40, struct.pack("<Q", 0xCAFEBABE))
mu.reg_write(UC_ARM64_REG_TPIDR_EL0, sec2023.TLS_BASE)

sp = sec2023.STACK_BASE + sec2023.STACK_SIZE - 0x200
v4_addr = sp - 0x20

def f(hi, lo):
    """调 sub_3B9D4(v4), 返回 v4[1]"""
    mu.mem_write(v4_addr, struct.pack("<III", hi, lo, 0))
    mu.reg_write(UC_ARM64_REG_X0, v4_addr)
    mu.reg_write(UC_ARM64_REG_SP, sp)
    mu.reg_write(UC_ARM64_REG_LR, 0xDEAD0000)
    mu.emu_start(sec2023.LIB_BASE + 0x3B9D4, 0xDEAD0000, count=500000)
    return struct.unpack("<III", mu.mem_read(v4_addr, 12))[1]

# ===== 建正表 =====
print("Building forward tables (1024 Unicorn calls)...")
tables = [[0]*256 for _ in range(4)]
for bp in range(4):                    # 4 个字节位置
    for val in range(256):             # 每个位置 256 种输入
        inp = val << (bp*8)            # 只在 byte[bp] 放 val, 其他字节 = 0
        out = f(0, inp)
        tables[bp][val] = (out >> (bp*8)) & 0xFF

# 验证: 每张表是否双射 (256 个输出值全不同)
for bp in range(4):
    unique = len(set(tables[bp]))
    status = "BIJECTIVE" if unique == 256 else "NOT BIJECTIVE"
    print(f"  table[{bp}]: {unique}/256 unique  [{status}]")

# ===== 建逆表 =====
inv = [[0]*256 for _ in range(4)]
for bp in range(4):
    for in_byte in range(256):
        out_byte = tables[bp][in_byte]
        inv[bp][out_byte] = in_byte

# ===== 保存 JSON =====
with open('sub_3b9d4_tables.json', 'w') as fp:
    json.dump({'forward': tables, 'inverse': inv}, fp)
print("Saved to sub_3b9d4_tables.json")

# ===== 自测: 用表预测, 和 Unicorn 对比 =====
print("\n=== Self-test ===")
def apply_table(x, t):
    out = 0
    for bp in range(4):
        out |= t[bp][(x >> (bp*8)) & 0xFF] << (bp*8)
    return out

for test_lo in [0, 0x0000d828, 0x12345678, 0xDEADBEEF, 0xFFFFFFFF]:
    actual = f(0, test_lo)
    predicted = apply_table(test_lo, tables)
    # 逆向测试: 用逆表还原
    recovered = apply_table(predicted, inv)
    ok_fwd = "OK" if actual == predicted else "FAIL"
    ok_inv = "OK" if recovered == test_lo else "FAIL"
    print(f"  lo=0x{test_lo:08x}  actual=0x{actual:08x}  predict=0x{predicted:08x} [{ok_fwd}]  recover=0x{recovered:08x} [{ok_inv}]")

这个{“forward”: [[228, 229, 230, 231 的前几个意思就是0对应228，1对应229.3对应230

这个表是二维数组sub_3B9D4 是 4 个字节独立映射，4 个不同的函数，每个是 256 → 256 的映射,inverse是逆表

{"forward": [[228, 229, 230, 231, 232, 233, 234, 235, 236, 237, 238, 239, 240, 241, 242, 243, 244, 245, 246, 247, 248, 249, 250, 251, 252, 253, 254, 255, 0, 1, 2, 3, 4, 5, 6, 7, 8, 9, 10, 11, 12, 13, 14, 15, 16, 17, 18, 19, 20, 21, 22, 23, 24, 25, 26, 27, 28, 29, 30, 31, 32, 33, 34, 35, 36, 37, 38, 39, 40, 41, 42, 43, 44, 45, 46, 47, 48, 49, 50, 51, 52, 53, 54, 55, 56, 57, 58, 59, 60, 61, 62, 63, 64, 65, 66, 67, 68, 69, 70, 71, 72, 73, 74, 75, 76, 77, 78, 79, 80, 81, 82, 83, 84, 85, 86, 87, 88, 89, 90, 91, 92, 93, 94, 95, 96, 97, 98, 99, 100, 101, 102, 103, 104, 105, 106, 107, 108, 109, 110, 111, 112, 113, 114, 115, 116, 117, 118, 119, 120, 121, 122, 123, 124, 125, 126, 127, 128, 129, 130, 131, 132, 133, 134, 135, 136, 137, 138, 139, 140, 141, 142, 143, 144, 145, 146, 147, 148, 149, 150, 151, 152, 153, 154, 155, 156, 157, 158, 159, 160, 161, 162, 163, 164, 165, 166, 167, 168, 169, 170, 171, 172, 173, 174, 175, 176, 177, 178, 179, 180, 181, 182, 183, 184, 185, 186, 187, 188, 189, 190, 191, 192, 193, 194, 195, 196, 197, 198, 199, 200, 201, 202, 203, 204, 205, 206, 207, 208, 209, 210, 211, 212, 213, 214, 215, 216, 217, 218, 219, 220, 221, 222, 223, 224, 225, 226, 227], [202, 203, 200, 201, 206, 207, 204, 205, 210, 211, 208, 209, 214, 215, 212, 213, 186, 187, 184, 185, 190, 191, 188, 189, 194, 195, 192, 193, 198, 199, 196, 197, 234, 235, 232, 233, 238, 239, 236, 237, 242, 243, 240, 241, 246, 247, 244, 245, 218, 219, 216, 217, 222, 223, 220, 221, 226, 227, 224, 225, 230, 231, 228, 229, 138, 139, 136, 137, 142, 143, 140, 141, 146, 147, 144, 145, 150, 151, 148, 149, 122, 123, 120, 121, 126, 127, 124, 125, 130, 131, 128, 129, 134, 135, 132, 133, 170, 171, 168, 169, 174, 175, 172, 173, 178, 179, 176, 177, 182, 183, 180, 181, 154, 155, 152, 153, 158, 159, 156, 157, 162, 163, 160, 161, 166, 167, 164, 165, 74, 75, 72, 73, 78, 79, 76, 77, 82, 83, 80, 81, 86, 87, 84, 85, 58, 59, 56, 57, 62, 63, 60, 61, 66, 67, 64, 65, 70, 71, 68, 69, 106, 107, 104, 105, 110, 111, 108, 109, 114, 115, 112, 113, 118, 119, 116, 117, 90, 91, 88, 89, 94, 95, 92, 93, 98, 99, 96, 97, 102, 103, 100, 101, 10, 11, 8, 9, 14, 15, 12, 13, 18, 19, 16, 17, 22, 23, 20, 21, 250, 251, 248, 249, 254, 255, 252, 253, 2, 3, 0, 1, 6, 7, 4, 5, 42, 43, 40, 41, 46, 47, 44, 45, 50, 51, 48, 49, 54, 55, 52, 53, 26, 27, 24, 25, 30, 31, 28, 29, 34, 35, 32, 33, 38, 39, 36, 37], [148, 149, 146, 147, 152, 153, 150, 151, 156, 157, 154, 155, 160, 161, 158, 159, 164, 165, 162, 163, 168, 169, 166, 167, 172, 173, 170, 171, 176, 177, 174, 175, 180, 181, 178, 179, 184, 185, 182, 183, 188, 189, 186, 187, 192, 193, 190, 191, 196, 197, 194, 195, 200, 201, 198, 199, 204, 205, 202, 203, 208, 209, 206, 207, 212, 213, 210, 211, 216, 217, 214, 215, 220, 221, 218, 219, 224, 225, 222, 223, 228, 229, 226, 227, 232, 233, 230, 231, 236, 237, 234, 235, 240, 241, 238, 239, 244, 245, 242, 243, 248, 249, 246, 247, 252, 253, 250, 251, 0, 1, 254, 255, 4, 5, 2, 3, 8, 9, 6, 7, 12, 13, 10, 11, 16, 17, 14, 15, 20, 21, 18, 19, 24, 25, 22, 23, 28, 29, 26, 27, 32, 33, 30, 31, 36, 37, 34, 35, 40, 41, 38, 39, 44, 45, 42, 43, 48, 49, 46, 47, 52, 53, 50, 51, 56, 57, 54, 55, 60, 61, 58, 59, 64, 65, 62, 63, 68, 69, 66, 67, 72, 73, 70, 71, 76, 77, 74, 75, 80, 81, 78, 79, 84, 85, 82, 83, 88, 89, 86, 87, 92, 93, 90, 91, 96, 97, 94, 95, 100, 101, 98, 99, 104, 105, 102, 103, 108, 109, 106, 107, 112, 113, 110, 111, 116, 117, 114, 115, 120, 121, 118, 119, 124, 125, 122, 123, 128, 129, 126, 127, 132, 133, 130, 131, 136, 137, 134, 135, 140, 141, 138, 139, 144, 145, 142, 143], [109, 108, 111, 110, 105, 104, 107, 106, 117, 116, 119, 118, 113, 112, 115, 114, 125, 124, 127, 126, 121, 120, 123, 122, 133, 132, 135, 134, 129, 128, 131, 130, 141, 140, 143, 142, 137, 136, 139, 138, 149, 148, 151, 150, 145, 144, 147, 146, 157, 156, 159, 158, 153, 152, 155, 154, 165, 164, 167, 166, 161, 160, 163, 162, 173, 172, 175, 174, 169, 168, 171, 170, 181, 180, 183, 182, 177, 176, 179, 178, 189, 188, 191, 190, 185, 184, 187, 186, 197, 196, 199, 198, 193, 192, 195, 194, 205, 204, 207, 206, 201, 200, 203, 202, 213, 212, 215, 214, 209, 208, 211, 210, 221, 220, 223, 222, 217, 216, 219, 218, 229, 228, 231, 230, 225, 224, 227, 226, 237, 236, 239, 238, 233, 232, 235, 234, 245, 244, 247, 246, 241, 240, 243, 242, 253, 252, 255, 254, 249, 248, 251, 250, 5, 4, 7, 6, 1, 0, 3, 2, 13, 12, 15, 14, 9, 8, 11, 10, 21, 20, 23, 22, 17, 16, 19, 18, 29, 28, 31, 30, 25, 24, 27, 26, 37, 36, 39, 38, 33, 32, 35, 34, 45, 44, 47, 46, 41, 40, 43, 42, 53, 52, 55, 54, 49, 48, 51, 50, 61, 60, 63, 62, 57, 56, 59, 58, 69, 68, 71, 70, 65, 64, 67, 66, 77, 76, 79, 78, 73, 72, 75, 74, 85, 84, 87, 86, 81, 80, 83, 82, 93, 92, 95, 94, 89, 88, 91, 90, 101, 100, 103, 102, 97, 96, 99, 98]], "inverse": [[28, 29, 30, 31, 32, 33, 34, 35, 36, 37, 38, 39, 40, 41, 42, 43, 44, 45, 46, 47, 48, 49, 50, 51, 52, 53, 54, 55, 56, 57, 58, 59, 60, 61, 62, 63, 64, 65, 66, 67, 68, 69, 70, 71, 72, 73, 74, 75, 76, 77, 78, 79, 80, 81, 82, 83, 84, 85, 86, 87, 88, 89, 90, 91, 92, 93, 94, 95, 96, 97, 98, 99, 100, 101, 102, 103, 104, 105, 106, 107, 108, 109, 110, 111, 112, 113, 114, 115, 116, 117, 118, 119, 120, 121, 122, 123, 124, 125, 126, 127, 128, 129, 130, 131, 132, 133, 134, 135, 136, 137, 138, 139, 140, 141, 142, 143, 144, 145, 146, 147, 148, 149, 150, 151, 152, 153, 154, 155, 156, 157, 158, 159, 160, 161, 162, 163, 164, 165, 166, 167, 168, 169, 170, 171, 172, 173, 174, 175, 176, 177, 178, 179, 180, 181, 182, 183, 184, 185, 186, 187, 188, 189, 190, 191, 192, 193, 194, 195, 196, 197, 198, 199, 200, 201, 202, 203, 204, 205, 206, 207, 208, 209, 210, 211, 212, 213, 214, 215, 216, 217, 218, 219, 220, 221, 222, 223, 224, 225, 226, 227, 228, 229, 230, 231, 232, 233, 234, 235, 236, 237, 238, 239, 240, 241, 242, 243, 244, 245, 246, 247, 248, 249, 250, 251, 252, 253, 254, 255, 0, 1, 2, 3, 4, 5, 6, 7, 8, 9, 10, 11, 12, 13, 14, 15, 16, 17, 18, 19, 20, 21, 22, 23, 24, 25, 26, 27], [218, 219, 216, 217, 222, 223, 220, 221, 194, 195, 192, 193, 198, 199, 196, 197, 202, 203, 200, 201, 206, 207, 204, 205, 242, 243, 240, 241, 246, 247, 244, 245, 250, 251, 248, 249, 254, 255, 252, 253, 226, 227, 224, 225, 230, 231, 228, 229, 234, 235, 232, 233, 238, 239, 236, 237, 146, 147, 144, 145, 150, 151, 148, 149, 154, 155, 152, 153, 158, 159, 156, 157, 130, 131, 128, 129, 134, 135, 132, 133, 138, 139, 136, 137, 142, 143, 140, 141, 178, 179, 176, 177, 182, 183, 180, 181, 186, 187, 184, 185, 190, 191, 188, 189, 162, 163, 160, 161, 166, 167, 164, 165, 170, 171, 168, 169, 174, 175, 172, 173, 82, 83, 80, 81, 86, 87, 84, 85, 90, 91, 88, 89, 94, 95, 92, 93, 66, 67, 64, 65, 70, 71, 68, 69, 74, 75, 72, 73, 78, 79, 76, 77, 114, 115, 112, 113, 118, 119, 116, 117, 122, 123, 120, 121, 126, 127, 124, 125, 98, 99, 96, 97, 102, 103, 100, 101, 106, 107, 104, 105, 110, 111, 108, 109, 18, 19, 16, 17, 22, 23, 20, 21, 26, 27, 24, 25, 30, 31, 28, 29, 2, 3, 0, 1, 6, 7, 4, 5, 10, 11, 8, 9, 14, 15, 12, 13, 50, 51, 48, 49, 54, 55, 52, 53, 58, 59, 56, 57, 62, 63, 60, 61, 34, 35, 32, 33, 38, 39, 36, 37, 42, 43, 40, 41, 46, 47, 44, 45, 210, 211, 208, 209, 214, 215, 212, 213], [108, 109, 114, 115, 112, 113, 118, 119, 116, 117, 122, 123, 120, 121, 126, 127, 124, 125, 130, 131, 128, 129, 134, 135, 132, 133, 138, 139, 136, 137, 142, 143, 140, 141, 146, 147, 144, 145, 150, 151, 148, 149, 154, 155, 152, 153, 158, 159, 156, 157, 162, 163, 160, 161, 166, 167, 164, 165, 170, 171, 168, 169, 174, 175, 172, 173, 178, 179, 176, 177, 182, 183, 180, 181, 186, 187, 184, 185, 190, 191, 188, 189, 194, 195, 192, 193, 198, 199, 196, 197, 202, 203, 200, 201, 206, 207, 204, 205, 210, 211, 208, 209, 214, 215, 212, 213, 218, 219, 216, 217, 222, 223, 220, 221, 226, 227, 224, 225, 230, 231, 228, 229, 234, 235, 232, 233, 238, 239, 236, 237, 242, 243, 240, 241, 246, 247, 244, 245, 250, 251, 248, 249, 254, 255, 252, 253, 2, 3, 0, 1, 6, 7, 4, 5, 10, 11, 8, 9, 14, 15, 12, 13, 18, 19, 16, 17, 22, 23, 20, 21, 26, 27, 24, 25, 30, 31, 28, 29, 34, 35, 32, 33, 38, 39, 36, 37, 42, 43, 40, 41, 46, 47, 44, 45, 50, 51, 48, 49, 54, 55, 52, 53, 58, 59, 56, 57, 62, 63, 60, 61, 66, 67, 64, 65, 70, 71, 68, 69, 74, 75, 72, 73, 78, 79, 76, 77, 82, 83, 80, 81, 86, 87, 84, 85, 90, 91, 88, 89, 94, 95, 92, 93, 98, 99, 96, 97, 102, 103, 100, 101, 106, 107, 104, 105, 110, 111], [157, 156, 159, 158, 153, 152, 155, 154, 165, 164, 167, 166, 161, 160, 163, 162, 173, 172, 175, 174, 169, 168, 171, 170, 181, 180, 183, 182, 177, 176, 179, 178, 189, 188, 191, 190, 185, 184, 187, 186, 197, 196, 199, 198, 193, 192, 195, 194, 205, 204, 207, 206, 201, 200, 203, 202, 213, 212, 215, 214, 209, 208, 211, 210, 221, 220, 223, 222, 217, 216, 219, 218, 229, 228, 231, 230, 225, 224, 227, 226, 237, 236, 239, 238, 233, 232, 235, 234, 245, 244, 247, 246, 241, 240, 243, 242, 253, 252, 255, 254, 249, 248, 251, 250, 5, 4, 7, 6, 1, 0, 3, 2, 13, 12, 15, 14, 9, 8, 11, 10, 21, 20, 23, 22, 17, 16, 19, 18, 29, 28, 31, 30, 25, 24, 27, 26, 37, 36, 39, 38, 33, 32, 35, 34, 45, 44, 47, 46, 41, 40, 43, 42, 53, 52, 55, 54, 49, 48, 51, 50, 61, 60, 63, 62, 57, 56, 59, 58, 69, 68, 71, 70, 65, 64, 67, 66, 77, 76, 79, 78, 73, 72, 75, 74, 85, 84, 87, 86, 81, 80, 83, 82, 93, 92, 95, 94, 89, 88, 91, 90, 101, 100, 103, 102, 97, 96, 99, 98, 109, 108, 111, 110, 105, 104, 107, 106, 117, 116, 119, 118, 113, 112, 115, 114, 125, 124, 127, 126, 121, 120, 123, 122, 133, 132, 135, 134, 129, 128, 131, 130, 141, 140, 143, 142, 137, 136, 139, 138, 149, 148, 151, 150, 145, 144, 147, 146]]}

去混淆 [常规解法]

IDA 只能看到 br X10，根本不知道跳到哪，因为目标地址是运行时算出来的, 既然 IDA 搞不定，就用 Unicorn 跑一遍，可以装载 .so 文件、设置寄存器、从指定地址开始执行。每执行一条指令都可以”钩住”（hook），让我们打印出来。混淆代码跑起来的时候，br X10 里的 X10 是个具体的值（比如 0x3ba34），CPU 会照着跳。我们 hook 住每条指令就行

找基本块（从 BR 边构建 CFG）

基本块 = 一段指令的直线序列，中间没有跳转，末尾以跳转结尾。

扫描 trace，找所有 br/b/ret 指令。这些跳转的目标地址就是一个新块的起点。

目标地址 = 7 个基本块的起始地址。看到自循环（0x3ba70 → 0x3ba34）说明这是内部循环。

for i, ins in enumerate(trace):
    if ins.is_jump:
        edge = (ins.addr, trace[i+1].addr)  # 从当前地址跳到下一条指令的地址
        edges.add(edge)

混淆后的每个基本块里，指令分两类

dispatcher 指令（骨架，没用）：

adrl/adrp X9, 0x72C40 — 加载跳转表基址
ldr X10, [X9, X12] — 从跳转表查地址
mov W11, #0x740078FC — 加固定常量
add X10, X10, X11 — 算出真实目标
br X10 — 跳
csel / cset / cmp — 分支选择

业务指令（真正的函数逻辑）：

ldrb / strb — 读写字节
eor / and / or — 异或与或
add w10, w14, w10 — 算术
lsr / lsl — 移位
sub w11, w14, #0x5e — 减法（带小常量）

原理: dispatcher 指令都有明显的模式（用特定寄存器如 X9/X10、涉及固定常量 0x740078FC 等）。过滤掉这些，剩下的就是真实逻辑。

import struct
from unicorn import *
from unicorn.arm64_const import *
from capstone import *
import sec2023

md = Cs(CS_ARCH_ARM64, CS_MODE_LITTLE_ENDIAN)

# -- Unicorn trace --
mu = Uc(UC_ARCH_ARM64, UC_MODE_ARM)
mu.mem_map(sec2023.LIB_BASE, sec2023._IMAGE_SIZE)
mu.mem_write(sec2023.LIB_BASE, sec2023._IMAGE)
mu.mem_map(sec2023.STACK_BASE, sec2023.STACK_SIZE)
mu.mem_map(sec2023.TLS_BASE, 0x1000)
mu.mem_write(sec2023.TLS_BASE + 40, struct.pack("<Q", 0xCAFEBABE))
mu.reg_write(UC_ARM64_REG_TPIDR_EL0, sec2023.TLS_BASE)
sp = sec2023.STACK_BASE + sec2023.STACK_SIZE - 0x200
v4_addr = sp - 0x20

trace = []
def hook(uc, addr, size, _):
    rel = addr - sec2023.LIB_BASE
    ins_bytes = bytes(uc.mem_read(addr, size))
    for ins in md.disasm(ins_bytes, addr):
        trace.append((rel, ins.mnemonic, ins.op_str))

mu.hook_add(UC_HOOK_CODE, hook)
mu.mem_write(v4_addr, struct.pack("<III", 0, 0x0000d828, 0))
mu.reg_write(UC_ARM64_REG_X0, v4_addr)
mu.reg_write(UC_ARM64_REG_SP, sp)
mu.reg_write(UC_ARM64_REG_LR, 0xDEAD0000)
mu.emu_start(sec2023.LIB_BASE + 0x3B9D4, 0xDEAD0000, count=500000)


# -- 识别 dispatcher 指令 (要删掉的) --
DISPATCH_ADDRS = set()   # 记录哪些地址的指令是 dispatcher 骨架

# dispatcher 通用模式:
#   ADRL X9, off_72XXX       (加载跳转表)
#   LDR  Xn, [X9, Xm]        (查表)
#   MOV  Wn, #0x740078FC     (加常量)
#   ADD  Xn, Xn, Xm          (计算目标)
#   BR   Xn                  (跳)
#   CSEL / CSET / CMP        (选择分支)
#   MOV  X8/X9/X10/X11/X13 立即数 用于 dispatch 状态
for off, mnem, ops in trace:
    # ADRL/ADRP 加载表
    if mnem in ('adrl', 'adrp'):
        DISPATCH_ADDRS.add(off)
    # LDR xN, [x9, ...] 是表查
    elif mnem == 'ldr' and '[x9' in ops:
        DISPATCH_ADDRS.add(off)
    # MOV wN, #0x740078FC (dispatcher 常量)
    elif mnem == 'mov' and '#0x740078fc' in ops.lower():
        DISPATCH_ADDRS.add(off)
    # MOV wN, #0x78fc / movk 构造 0x740078fc
    elif mnem in ('mov', 'movk') and ('#0x78fc' in ops or '#0x7400' in ops):
        DISPATCH_ADDRS.add(off)
    # ADD xN, xN, xM 最后计算跳转目标 (目标寄存器是 x12/x13)
    elif mnem == 'add' and ops.startswith(('x12,', 'x13,')) and ', x' in ops and '#' not in ops:
        DISPATCH_ADDRS.add(off)
    # BR xN 间接跳转
    elif mnem == 'br':
        DISPATCH_ADDRS.add(off)
    # CSEL / CSET / CMP 分支逻辑
    elif mnem in ('csel', 'cset', 'cmp') and 'sp' not in ops:
        DISPATCH_ADDRS.add(off)
    # MOV x8, xzr 和 add x8, x8, #1 是 phase counter
    elif mnem in ('mov',) and ('xzr' in ops and 'x8' in ops.split(',')[0]):
        pass  # 保留
    # STR WZR, [x0, x8, lsl #2] 是写 v4[x8] 前的清零, 保留
    # MOV wN, #常量 中 0x78fc 部分已经排除, 剩下小常量 (#3, #0x18, #8, #0x10, #0x20) 是 loop 计数器
    # 这些是 LOOP STATE, 保留

# -- 按"出现顺序"去重输出 --
# 第一次到的指令保留原始顺序, 之后重复的都跳过
seen = set()
uniq_trace = []
for off, mnem, ops in trace:
    key = (off, mnem, ops)
    if key not in seen:
        seen.add(key)
        uniq_trace.append((off, mnem, ops))

# -- 按基本块分组 --
# 基本块起始 = BR 的目标 (再加上函数入口)
block_starts = {0x3b9d4}
for i, (off, mnem, ops) in enumerate(trace[:-1]):
    if mnem in ('br', 'b', 'bl', 'blr', 'ret'):
        nxt = trace[i+1][0]
        if nxt < 0x70000:
            block_starts.add(nxt)

# 每块的业务指令 (按地址排)
block_ins = {}
for off, mnem, ops in sorted(uniq_trace):
    # 找属于哪个块: 最大的不超过 off 的 block_start
    owner = max((bs for bs in block_starts if bs <= off), default=None)
    if owner is None:
        continue
    # 跳过 dispatcher
    if off in DISPATCH_ADDRS:
        continue
    # 跳过 SP 相关
    if mnem in ('sub', 'add') and 'sp,' in ops:
        continue
    if mnem == 'ret':
        continue
    block_ins.setdefault(owner, []).append((off, mnem, ops))

# -- 输出去混淆后的汇编 --
print(";" + "="*68)
print("; libsec2023.so::sub_3B9D4 - 去混淆后的汇编 (只保留业务指令)")
print("; 原函数: 390 条指令 (含 dispatcher), 逆向后: 下面这些")
print(";" + "="*68)
print()

labels = {
    0x3b9d4: 'sub_3B9D4',
    0x3ba04: 'phase_start',      # 循环回到这里 (x8 < 2 时)
    0x3ba34: 'extract_loop',     # byte-extract 循环头
    0x3ba74: 'byte_transform',   # 字节变换
    0x3bae0: 'recompose_loop',   # 重组循环头
    0x3bb2c: 'phase_check',      # x8++ 检查
    0x3bb50: 'epilog',           # 函数尾
}

for bs in sorted(block_starts):
    label = labels.get(bs, f'block_{bs:x}')
    print(f"{label}:  ; 0x{bs:05x}")
    ins_list = block_ins.get(bs, [])
    if not ins_list:
        print(f"    ; (pure dispatcher, no business code)")
    else:
        for off, mnem, ops in ins_list:
            print(f"    {mnem:7s} {ops:30s}  ; 0x{off:05x}")
    print()

print(";" + "="*68)
print("; 注: sub_3B9D4 是外层 2 次 phase 循环 (处理 hi, lo)")
print("; 每 phase 里有 2 个内循环: extract_loop 和 recompose_loop 各 4 次")
print(";" + "="*68)

实际逻辑

实现注册机

python

全流程是user_input → sec2023 → X1’ → VM_forward → TEA_encrypt → (token, 0)

import json, os, sys

M32 = 0xFFFFFFFF
def u32(x): return x & M32

# ===================== TEA =====================
TEA_KEY = [0x7B777C63, 0xC56F6BF2, 0x2B670130, 0x76ABD7FE]
TEA_DELTA = 0xDEADBEEF
TEA_INIT_SUM = 0xBEEFBEEF
TEA_INIT_KS = 0x9D9D7DDE
TEA_ROUNDS = 64

def tea_encrypt(W21, W22):
    s, ks = TEA_INIT_SUM, TEA_INIT_KS
    for _ in range(TEA_ROUNDS):
        t = u32(u32(u32(W22 << 7) ^ (W22 >> 8)) + W22)
        W21 = u32(W21 + (u32(s - TEA_KEY[s & 3]) ^ t))
        t2 = u32(u32(u32(W21 << 8) ^ (W21 >> 7)) - W21)
        W22 = u32(W22 + (u32(ks + TEA_KEY[(ks >> 13) & 3]) ^ t2))
        s, ks = u32(s + TEA_DELTA), u32(ks + TEA_DELTA)
    return W21, W22

def tea_decrypt(W21, W22):
    s = u32(TEA_INIT_SUM + TEA_ROUNDS * TEA_DELTA)
    ks = u32(TEA_INIT_KS + TEA_ROUNDS * TEA_DELTA)
    for _ in range(TEA_ROUNDS):
        s, ks = u32(s - TEA_DELTA), u32(ks - TEA_DELTA)
        t2 = u32(u32(u32(W21 << 8) ^ (W21 >> 7)) - W21)
        W22 = u32(W22 - (u32(ks + TEA_KEY[(ks >> 13) & 3]) ^ t2))
        t = u32(u32(u32(W22 << 7) ^ (W22 >> 8)) + W22)
        W21 = u32(W21 - (u32(s - TEA_KEY[s & 3]) ^ t))
    return W21, W22

# ===================== VM (Oo0 class bytecode) =====================

def vm_forward(val32, sub_c, xor1_c, add_c, xor2_c, mix_op='xor'):
    b0, b1, b2, b3 = val32 & 0xFF, (val32>>8)&0xFF, (val32>>16)&0xFF, (val32>>24)&0xFF
    regs = [(b0 - sub_c) & 0xFF, (b1 ^ xor1_c) & 0xFF, (b2 + add_c) & 0xFF, (b3 ^ xor2_c) & 0xFF]
    result = 0
    for i, r in enumerate(regs):
        shift = i * 8
        mixed = (r ^ shift) & 0xFF if mix_op == 'xor' else (r + shift) & 0xFF
        result |= mixed << shift
    return u32(result)

def vm_inverse(target, sub_c, xor1_c, add_c, xor2_c, mix_op='xor'):
    regs = []
    for i in range(4):
        shift = i * 8
        b = (target >> shift) & 0xFF
        if mix_op == 'xor':
            regs.append(b ^ shift)
        else:
            regs.append((b - shift) & 0xFF)
    byte0 = (regs[0] + sub_c) & 0xFF
    byte1 = (regs[1] ^ xor1_c) & 0xFF
    byte2 = (regs[2] - add_c) & 0xFF
    byte3 = (regs[3] ^ xor2_c) & 0xFF
    return byte0 | (byte1 << 8) | (byte2 << 16) | (byte3 << 24)

# ===================== Java encrypt (encrypt.dex) =====================
_JENC_KEY = [0x32, 0xCD, 0xFF, 0x98]

def java_encrypt(x):
    x = ((x >> 7) | ((x & 0x7f) << 25)) & 0xFFFFFFFF
    bs = [(x>>24)&0xff, (x>>16)&0xff, (x>>8)&0xff, x&0xff]
    for i in range(4):
        bs[i] = ((bs[i] ^ _JENC_KEY[i]) + i) & 0xff
    return (bs[0]<<24) | (bs[1]<<16) | (bs[2]<<8) | bs[3]

def java_decrypt(y):
    bs = [(y>>24)&0xff, (y>>16)&0xff, (y>>8)&0xff, y&0xff]
    for i in range(4):
        bs[i] = ((bs[i] - i) & 0xff) ^ _JENC_KEY[i]
    y = (bs[0]<<24)|(bs[1]<<16)|(bs[2]<<8)|bs[3]
    return ((y << 7) | (y >> 25)) & 0xFFFFFFFF

# ===================== sub_3B9D4 (字节查找表) =====================
_tbl_path = os.path.join(os.path.dirname(os.path.abspath(__file__)), 'sub_3b9d4_tables.json')
with open(_tbl_path) as _f:
    _T = json.load(_f)
_FWD = _T['forward']   # _FWD[byte_pos][in_byte] = out_byte
_INV = _T['inverse']   # _INV[byte_pos][out_byte] = in_byte

def sub3b9d4_fwd(x):
    out = 0
    for bp in range(4):
        out |= _FWD[bp][(x >> (bp*8)) & 0xFF] << (bp*8)
    return out

def sub3b9d4_inv(x):
    out = 0
    for bp in range(4):
        out |= _INV[bp][(x >> (bp*8)) & 0xFF] << (bp*8)
    return out

# ===================== sec2023 完整变换 =====================
def _bswap(u):
    return ((u & 0xff) << 24) | (((u >> 8) & 0xff) << 16) | (((u >> 16) & 0xff) << 8) | ((u >> 24) & 0xff)

def sec2023_forward(user_ulong):
    """给用户输入 ulong, 返回 sec2023 变换后的 X1' (lo_u32, hi_u32)"""
    hi = (user_ulong >> 32) & M32
    lo = user_ulong & M32
    v0 = sub3b9d4_fwd(hi)
    v1 = sub3b9d4_fwd(lo)
    x1_lo = _bswap(java_encrypt(v0))
    x1_hi = _bswap(java_encrypt(v1))
    return x1_lo, x1_hi

def sec2023_inverse(x1_lo, x1_hi):
    """给定 X1' (lo_u32, hi_u32), 反推出用户输入 (hi_u32, lo_u32)"""
    v0 = java_decrypt(_bswap(x1_lo))
    v1 = java_decrypt(_bswap(x1_hi))
    user_hi = sub3b9d4_inv(v0)
    user_lo = sub3b9d4_inv(v1)
    return user_hi, user_lo

# ===================== keygen 主函数 =====================
def keygen(token):
    """token (int) -> user_input (int, 64-bit)"""
    target = token & M32
    # TEA 逆: TEA 输出 (target, 0) 对应的输入
    reg0, reg1 = tea_decrypt(target, 0)
    # VM 逆: 两段 mixing 不同
    x1_lo = vm_inverse(reg0, 27, 0xC2, 0xA8, 0x36, mix_op='xor')
    x1_hi = vm_inverse(reg1, 47, 0xB6, 0x37, 0x98, mix_op='add')
    # sec2023 逆
    user_hi, user_lo = sec2023_inverse(x1_lo, x1_hi)
    return (user_hi << 32) | user_lo

def verify(user_input, token):
    """校验: user_input 经过完整正向变换是否等于 (token, 0)"""
    target = token & M32
    x1_lo, x1_hi = sec2023_forward(user_input)
    reg0 = vm_forward(x1_lo, 27, 0xC2, 0xA8, 0x36, mix_op='xor')
    reg1 = vm_forward(x1_hi, 47, 0xB6, 0x37, 0x98, mix_op='add')
    return tea_encrypt(reg0, reg1) == (target, 0)

# ===================== CLI =====================
if __name__ == '__main__':
    if len(sys.argv) > 1:
        tokens = [int(x, 0) for x in sys.argv[1:]]
    else:
        print("用法: python3 keygen_standalone.py <token> [<token>...]")
        print("示例: python3 keygen_standalone.py 13732582\n")
        tokens = [13732582, 55336, 12345]

    for tok in tokens:
        key = keygen(tok)
        ok = verify(key, tok)
        print(f"token = {tok}  (0x{tok:x})")
        print(f"user  = {key}  (0x{key:x})  [{'PASS' if ok else 'FAIL'}]")
        print()

C++

// 编译: g++ -O2 -o keygen keygen_standalone.cpp
// 运行: ./keygen 13732582
#include <cstdio>
#include <cstdint>
#include <cstdlib>
#include <cstring>

typedef uint8_t  u8;
typedef uint32_t u32;
typedef uint64_t u64;

// ===================== sub_3B9D4 查表 (embedded) =====================
static const uint8_t FWD_TBL[4][256] = {
    { 0xe4, 0xe5, 0xe6, 0xe7, 0xe8, 0xe9, 0xea, 0xeb, 0xec, 0xed, 0xee, 0xef, 0xf0, 0xf1, 0xf2, 0xf3, 0xf4, 0xf5, 0xf6, 0xf7, 0xf8, 0xf9, 0xfa, 0xfb, 0xfc, 0xfd, 0xfe, 0xff, 0x00, 0x01, 0x02, 0x03, 0x04, 0x05, 0x06, 0x07, 0x08, 0x09, 0x0a, 0x0b, 0x0c, 0x0d, 0x0e, 0x0f, 0x10, 0x11, 0x12, 0x13, 0x14, 0x15, 0x16, 0x17, 0x18, 0x19, 0x1a, 0x1b, 0x1c, 0x1d, 0x1e, 0x1f, 0x20, 0x21, 0x22, 0x23, 0x24, 0x25, 0x26, 0x27, 0x28, 0x29, 0x2a, 0x2b, 0x2c, 0x2d, 0x2e, 0x2f, 0x30, 0x31, 0x32, 0x33, 0x34, 0x35, 0x36, 0x37, 0x38, 0x39, 0x3a, 0x3b, 0x3c, 0x3d, 0x3e, 0x3f, 0x40, 0x41, 0x42, 0x43, 0x44, 0x45, 0x46, 0x47, 0x48, 0x49, 0x4a, 0x4b, 0x4c, 0x4d, 0x4e, 0x4f, 0x50, 0x51, 0x52, 0x53, 0x54, 0x55, 0x56, 0x57, 0x58, 0x59, 0x5a, 0x5b, 0x5c, 0x5d, 0x5e, 0x5f, 0x60, 0x61, 0x62, 0x63, 0x64, 0x65, 0x66, 0x67, 0x68, 0x69, 0x6a, 0x6b, 0x6c, 0x6d, 0x6e, 0x6f, 0x70, 0x71, 0x72, 0x73, 0x74, 0x75, 0x76, 0x77, 0x78, 0x79, 0x7a, 0x7b, 0x7c, 0x7d, 0x7e, 0x7f, 0x80, 0x81, 0x82, 0x83, 0x84, 0x85, 0x86, 0x87, 0x88, 0x89, 0x8a, 0x8b, 0x8c, 0x8d, 0x8e, 0x8f, 0x90, 0x91, 0x92, 0x93, 0x94, 0x95, 0x96, 0x97, 0x98, 0x99, 0x9a, 0x9b, 0x9c, 0x9d, 0x9e, 0x9f, 0xa0, 0xa1, 0xa2, 0xa3, 0xa4, 0xa5, 0xa6, 0xa7, 0xa8, 0xa9, 0xaa, 0xab, 0xac, 0xad, 0xae, 0xaf, 0xb0, 0xb1, 0xb2, 0xb3, 0xb4, 0xb5, 0xb6, 0xb7, 0xb8, 0xb9, 0xba, 0xbb, 0xbc, 0xbd, 0xbe, 0xbf, 0xc0, 0xc1, 0xc2, 0xc3, 0xc4, 0xc5, 0xc6, 0xc7, 0xc8, 0xc9, 0xca, 0xcb, 0xcc, 0xcd, 0xce, 0xcf, 0xd0, 0xd1, 0xd2, 0xd3, 0xd4, 0xd5, 0xd6, 0xd7, 0xd8, 0xd9, 0xda, 0xdb, 0xdc, 0xdd, 0xde, 0xdf, 0xe0, 0xe1, 0xe2, 0xe3 },
    { 0xca, 0xcb, 0xc8, 0xc9, 0xce, 0xcf, 0xcc, 0xcd, 0xd2, 0xd3, 0xd0, 0xd1, 0xd6, 0xd7, 0xd4, 0xd5, 0xba, 0xbb, 0xb8, 0xb9, 0xbe, 0xbf, 0xbc, 0xbd, 0xc2, 0xc3, 0xc0, 0xc1, 0xc6, 0xc7, 0xc4, 0xc5, 0xea, 0xeb, 0xe8, 0xe9, 0xee, 0xef, 0xec, 0xed, 0xf2, 0xf3, 0xf0, 0xf1, 0xf6, 0xf7, 0xf4, 0xf5, 0xda, 0xdb, 0xd8, 0xd9, 0xde, 0xdf, 0xdc, 0xdd, 0xe2, 0xe3, 0xe0, 0xe1, 0xe6, 0xe7, 0xe4, 0xe5, 0x8a, 0x8b, 0x88, 0x89, 0x8e, 0x8f, 0x8c, 0x8d, 0x92, 0x93, 0x90, 0x91, 0x96, 0x97, 0x94, 0x95, 0x7a, 0x7b, 0x78, 0x79, 0x7e, 0x7f, 0x7c, 0x7d, 0x82, 0x83, 0x80, 0x81, 0x86, 0x87, 0x84, 0x85, 0xaa, 0xab, 0xa8, 0xa9, 0xae, 0xaf, 0xac, 0xad, 0xb2, 0xb3, 0xb0, 0xb1, 0xb6, 0xb7, 0xb4, 0xb5, 0x9a, 0x9b, 0x98, 0x99, 0x9e, 0x9f, 0x9c, 0x9d, 0xa2, 0xa3, 0xa0, 0xa1, 0xa6, 0xa7, 0xa4, 0xa5, 0x4a, 0x4b, 0x48, 0x49, 0x4e, 0x4f, 0x4c, 0x4d, 0x52, 0x53, 0x50, 0x51, 0x56, 0x57, 0x54, 0x55, 0x3a, 0x3b, 0x38, 0x39, 0x3e, 0x3f, 0x3c, 0x3d, 0x42, 0x43, 0x40, 0x41, 0x46, 0x47, 0x44, 0x45, 0x6a, 0x6b, 0x68, 0x69, 0x6e, 0x6f, 0x6c, 0x6d, 0x72, 0x73, 0x70, 0x71, 0x76, 0x77, 0x74, 0x75, 0x5a, 0x5b, 0x58, 0x59, 0x5e, 0x5f, 0x5c, 0x5d, 0x62, 0x63, 0x60, 0x61, 0x66, 0x67, 0x64, 0x65, 0x0a, 0x0b, 0x08, 0x09, 0x0e, 0x0f, 0x0c, 0x0d, 0x12, 0x13, 0x10, 0x11, 0x16, 0x17, 0x14, 0x15, 0xfa, 0xfb, 0xf8, 0xf9, 0xfe, 0xff, 0xfc, 0xfd, 0x02, 0x03, 0x00, 0x01, 0x06, 0x07, 0x04, 0x05, 0x2a, 0x2b, 0x28, 0x29, 0x2e, 0x2f, 0x2c, 0x2d, 0x32, 0x33, 0x30, 0x31, 0x36, 0x37, 0x34, 0x35, 0x1a, 0x1b, 0x18, 0x19, 0x1e, 0x1f, 0x1c, 0x1d, 0x22, 0x23, 0x20, 0x21, 0x26, 0x27, 0x24, 0x25 },
    { 0x94, 0x95, 0x92, 0x93, 0x98, 0x99, 0x96, 0x97, 0x9c, 0x9d, 0x9a, 0x9b, 0xa0, 0xa1, 0x9e, 0x9f, 0xa4, 0xa5, 0xa2, 0xa3, 0xa8, 0xa9, 0xa6, 0xa7, 0xac, 0xad, 0xaa, 0xab, 0xb0, 0xb1, 0xae, 0xaf, 0xb4, 0xb5, 0xb2, 0xb3, 0xb8, 0xb9, 0xb6, 0xb7, 0xbc, 0xbd, 0xba, 0xbb, 0xc0, 0xc1, 0xbe, 0xbf, 0xc4, 0xc5, 0xc2, 0xc3, 0xc8, 0xc9, 0xc6, 0xc7, 0xcc, 0xcd, 0xca, 0xcb, 0xd0, 0xd1, 0xce, 0xcf, 0xd4, 0xd5, 0xd2, 0xd3, 0xd8, 0xd9, 0xd6, 0xd7, 0xdc, 0xdd, 0xda, 0xdb, 0xe0, 0xe1, 0xde, 0xdf, 0xe4, 0xe5, 0xe2, 0xe3, 0xe8, 0xe9, 0xe6, 0xe7, 0xec, 0xed, 0xea, 0xeb, 0xf0, 0xf1, 0xee, 0xef, 0xf4, 0xf5, 0xf2, 0xf3, 0xf8, 0xf9, 0xf6, 0xf7, 0xfc, 0xfd, 0xfa, 0xfb, 0x00, 0x01, 0xfe, 0xff, 0x04, 0x05, 0x02, 0x03, 0x08, 0x09, 0x06, 0x07, 0x0c, 0x0d, 0x0a, 0x0b, 0x10, 0x11, 0x0e, 0x0f, 0x14, 0x15, 0x12, 0x13, 0x18, 0x19, 0x16, 0x17, 0x1c, 0x1d, 0x1a, 0x1b, 0x20, 0x21, 0x1e, 0x1f, 0x24, 0x25, 0x22, 0x23, 0x28, 0x29, 0x26, 0x27, 0x2c, 0x2d, 0x2a, 0x2b, 0x30, 0x31, 0x2e, 0x2f, 0x34, 0x35, 0x32, 0x33, 0x38, 0x39, 0x36, 0x37, 0x3c, 0x3d, 0x3a, 0x3b, 0x40, 0x41, 0x3e, 0x3f, 0x44, 0x45, 0x42, 0x43, 0x48, 0x49, 0x46, 0x47, 0x4c, 0x4d, 0x4a, 0x4b, 0x50, 0x51, 0x4e, 0x4f, 0x54, 0x55, 0x52, 0x53, 0x58, 0x59, 0x56, 0x57, 0x5c, 0x5d, 0x5a, 0x5b, 0x60, 0x61, 0x5e, 0x5f, 0x64, 0x65, 0x62, 0x63, 0x68, 0x69, 0x66, 0x67, 0x6c, 0x6d, 0x6a, 0x6b, 0x70, 0x71, 0x6e, 0x6f, 0x74, 0x75, 0x72, 0x73, 0x78, 0x79, 0x76, 0x77, 0x7c, 0x7d, 0x7a, 0x7b, 0x80, 0x81, 0x7e, 0x7f, 0x84, 0x85, 0x82, 0x83, 0x88, 0x89, 0x86, 0x87, 0x8c, 0x8d, 0x8a, 0x8b, 0x90, 0x91, 0x8e, 0x8f },
    { 0x6d, 0x6c, 0x6f, 0x6e, 0x69, 0x68, 0x6b, 0x6a, 0x75, 0x74, 0x77, 0x76, 0x71, 0x70, 0x73, 0x72, 0x7d, 0x7c, 0x7f, 0x7e, 0x79, 0x78, 0x7b, 0x7a, 0x85, 0x84, 0x87, 0x86, 0x81, 0x80, 0x83, 0x82, 0x8d, 0x8c, 0x8f, 0x8e, 0x89, 0x88, 0x8b, 0x8a, 0x95, 0x94, 0x97, 0x96, 0x91, 0x90, 0x93, 0x92, 0x9d, 0x9c, 0x9f, 0x9e, 0x99, 0x98, 0x9b, 0x9a, 0xa5, 0xa4, 0xa7, 0xa6, 0xa1, 0xa0, 0xa3, 0xa2, 0xad, 0xac, 0xaf, 0xae, 0xa9, 0xa8, 0xab, 0xaa, 0xb5, 0xb4, 0xb7, 0xb6, 0xb1, 0xb0, 0xb3, 0xb2, 0xbd, 0xbc, 0xbf, 0xbe, 0xb9, 0xb8, 0xbb, 0xba, 0xc5, 0xc4, 0xc7, 0xc6, 0xc1, 0xc0, 0xc3, 0xc2, 0xcd, 0xcc, 0xcf, 0xce, 0xc9, 0xc8, 0xcb, 0xca, 0xd5, 0xd4, 0xd7, 0xd6, 0xd1, 0xd0, 0xd3, 0xd2, 0xdd, 0xdc, 0xdf, 0xde, 0xd9, 0xd8, 0xdb, 0xda, 0xe5, 0xe4, 0xe7, 0xe6, 0xe1, 0xe0, 0xe3, 0xe2, 0xed, 0xec, 0xef, 0xee, 0xe9, 0xe8, 0xeb, 0xea, 0xf5, 0xf4, 0xf7, 0xf6, 0xf1, 0xf0, 0xf3, 0xf2, 0xfd, 0xfc, 0xff, 0xfe, 0xf9, 0xf8, 0xfb, 0xfa, 0x05, 0x04, 0x07, 0x06, 0x01, 0x00, 0x03, 0x02, 0x0d, 0x0c, 0x0f, 0x0e, 0x09, 0x08, 0x0b, 0x0a, 0x15, 0x14, 0x17, 0x16, 0x11, 0x10, 0x13, 0x12, 0x1d, 0x1c, 0x1f, 0x1e, 0x19, 0x18, 0x1b, 0x1a, 0x25, 0x24, 0x27, 0x26, 0x21, 0x20, 0x23, 0x22, 0x2d, 0x2c, 0x2f, 0x2e, 0x29, 0x28, 0x2b, 0x2a, 0x35, 0x34, 0x37, 0x36, 0x31, 0x30, 0x33, 0x32, 0x3d, 0x3c, 0x3f, 0x3e, 0x39, 0x38, 0x3b, 0x3a, 0x45, 0x44, 0x47, 0x46, 0x41, 0x40, 0x43, 0x42, 0x4d, 0x4c, 0x4f, 0x4e, 0x49, 0x48, 0x4b, 0x4a, 0x55, 0x54, 0x57, 0x56, 0x51, 0x50, 0x53, 0x52, 0x5d, 0x5c, 0x5f, 0x5e, 0x59, 0x58, 0x5b, 0x5a, 0x65, 0x64, 0x67, 0x66, 0x61, 0x60, 0x63, 0x62 },
};

static const uint8_t INV_TBL[4][256] = {
    { 0x1c, 0x1d, 0x1e, 0x1f, 0x20, 0x21, 0x22, 0x23, 0x24, 0x25, 0x26, 0x27, 0x28, 0x29, 0x2a, 0x2b, 0x2c, 0x2d, 0x2e, 0x2f, 0x30, 0x31, 0x32, 0x33, 0x34, 0x35, 0x36, 0x37, 0x38, 0x39, 0x3a, 0x3b, 0x3c, 0x3d, 0x3e, 0x3f, 0x40, 0x41, 0x42, 0x43, 0x44, 0x45, 0x46, 0x47, 0x48, 0x49, 0x4a, 0x4b, 0x4c, 0x4d, 0x4e, 0x4f, 0x50, 0x51, 0x52, 0x53, 0x54, 0x55, 0x56, 0x57, 0x58, 0x59, 0x5a, 0x5b, 0x5c, 0x5d, 0x5e, 0x5f, 0x60, 0x61, 0x62, 0x63, 0x64, 0x65, 0x66, 0x67, 0x68, 0x69, 0x6a, 0x6b, 0x6c, 0x6d, 0x6e, 0x6f, 0x70, 0x71, 0x72, 0x73, 0x74, 0x75, 0x76, 0x77, 0x78, 0x79, 0x7a, 0x7b, 0x7c, 0x7d, 0x7e, 0x7f, 0x80, 0x81, 0x82, 0x83, 0x84, 0x85, 0x86, 0x87, 0x88, 0x89, 0x8a, 0x8b, 0x8c, 0x8d, 0x8e, 0x8f, 0x90, 0x91, 0x92, 0x93, 0x94, 0x95, 0x96, 0x97, 0x98, 0x99, 0x9a, 0x9b, 0x9c, 0x9d, 0x9e, 0x9f, 0xa0, 0xa1, 0xa2, 0xa3, 0xa4, 0xa5, 0xa6, 0xa7, 0xa8, 0xa9, 0xaa, 0xab, 0xac, 0xad, 0xae, 0xaf, 0xb0, 0xb1, 0xb2, 0xb3, 0xb4, 0xb5, 0xb6, 0xb7, 0xb8, 0xb9, 0xba, 0xbb, 0xbc, 0xbd, 0xbe, 0xbf, 0xc0, 0xc1, 0xc2, 0xc3, 0xc4, 0xc5, 0xc6, 0xc7, 0xc8, 0xc9, 0xca, 0xcb, 0xcc, 0xcd, 0xce, 0xcf, 0xd0, 0xd1, 0xd2, 0xd3, 0xd4, 0xd5, 0xd6, 0xd7, 0xd8, 0xd9, 0xda, 0xdb, 0xdc, 0xdd, 0xde, 0xdf, 0xe0, 0xe1, 0xe2, 0xe3, 0xe4, 0xe5, 0xe6, 0xe7, 0xe8, 0xe9, 0xea, 0xeb, 0xec, 0xed, 0xee, 0xef, 0xf0, 0xf1, 0xf2, 0xf3, 0xf4, 0xf5, 0xf6, 0xf7, 0xf8, 0xf9, 0xfa, 0xfb, 0xfc, 0xfd, 0xfe, 0xff, 0x00, 0x01, 0x02, 0x03, 0x04, 0x05, 0x06, 0x07, 0x08, 0x09, 0x0a, 0x0b, 0x0c, 0x0d, 0x0e, 0x0f, 0x10, 0x11, 0x12, 0x13, 0x14, 0x15, 0x16, 0x17, 0x18, 0x19, 0x1a, 0x1b },
    { 0xda, 0xdb, 0xd8, 0xd9, 0xde, 0xdf, 0xdc, 0xdd, 0xc2, 0xc3, 0xc0, 0xc1, 0xc6, 0xc7, 0xc4, 0xc5, 0xca, 0xcb, 0xc8, 0xc9, 0xce, 0xcf, 0xcc, 0xcd, 0xf2, 0xf3, 0xf0, 0xf1, 0xf6, 0xf7, 0xf4, 0xf5, 0xfa, 0xfb, 0xf8, 0xf9, 0xfe, 0xff, 0xfc, 0xfd, 0xe2, 0xe3, 0xe0, 0xe1, 0xe6, 0xe7, 0xe4, 0xe5, 0xea, 0xeb, 0xe8, 0xe9, 0xee, 0xef, 0xec, 0xed, 0x92, 0x93, 0x90, 0x91, 0x96, 0x97, 0x94, 0x95, 0x9a, 0x9b, 0x98, 0x99, 0x9e, 0x9f, 0x9c, 0x9d, 0x82, 0x83, 0x80, 0x81, 0x86, 0x87, 0x84, 0x85, 0x8a, 0x8b, 0x88, 0x89, 0x8e, 0x8f, 0x8c, 0x8d, 0xb2, 0xb3, 0xb0, 0xb1, 0xb6, 0xb7, 0xb4, 0xb5, 0xba, 0xbb, 0xb8, 0xb9, 0xbe, 0xbf, 0xbc, 0xbd, 0xa2, 0xa3, 0xa0, 0xa1, 0xa6, 0xa7, 0xa4, 0xa5, 0xaa, 0xab, 0xa8, 0xa9, 0xae, 0xaf, 0xac, 0xad, 0x52, 0x53, 0x50, 0x51, 0x56, 0x57, 0x54, 0x55, 0x5a, 0x5b, 0x58, 0x59, 0x5e, 0x5f, 0x5c, 0x5d, 0x42, 0x43, 0x40, 0x41, 0x46, 0x47, 0x44, 0x45, 0x4a, 0x4b, 0x48, 0x49, 0x4e, 0x4f, 0x4c, 0x4d, 0x72, 0x73, 0x70, 0x71, 0x76, 0x77, 0x74, 0x75, 0x7a, 0x7b, 0x78, 0x79, 0x7e, 0x7f, 0x7c, 0x7d, 0x62, 0x63, 0x60, 0x61, 0x66, 0x67, 0x64, 0x65, 0x6a, 0x6b, 0x68, 0x69, 0x6e, 0x6f, 0x6c, 0x6d, 0x12, 0x13, 0x10, 0x11, 0x16, 0x17, 0x14, 0x15, 0x1a, 0x1b, 0x18, 0x19, 0x1e, 0x1f, 0x1c, 0x1d, 0x02, 0x03, 0x00, 0x01, 0x06, 0x07, 0x04, 0x05, 0x0a, 0x0b, 0x08, 0x09, 0x0e, 0x0f, 0x0c, 0x0d, 0x32, 0x33, 0x30, 0x31, 0x36, 0x37, 0x34, 0x35, 0x3a, 0x3b, 0x38, 0x39, 0x3e, 0x3f, 0x3c, 0x3d, 0x22, 0x23, 0x20, 0x21, 0x26, 0x27, 0x24, 0x25, 0x2a, 0x2b, 0x28, 0x29, 0x2e, 0x2f, 0x2c, 0x2d, 0xd2, 0xd3, 0xd0, 0xd1, 0xd6, 0xd7, 0xd4, 0xd5 },
    { 0x6c, 0x6d, 0x72, 0x73, 0x70, 0x71, 0x76, 0x77, 0x74, 0x75, 0x7a, 0x7b, 0x78, 0x79, 0x7e, 0x7f, 0x7c, 0x7d, 0x82, 0x83, 0x80, 0x81, 0x86, 0x87, 0x84, 0x85, 0x8a, 0x8b, 0x88, 0x89, 0x8e, 0x8f, 0x8c, 0x8d, 0x92, 0x93, 0x90, 0x91, 0x96, 0x97, 0x94, 0x95, 0x9a, 0x9b, 0x98, 0x99, 0x9e, 0x9f, 0x9c, 0x9d, 0xa2, 0xa3, 0xa0, 0xa1, 0xa6, 0xa7, 0xa4, 0xa5, 0xaa, 0xab, 0xa8, 0xa9, 0xae, 0xaf, 0xac, 0xad, 0xb2, 0xb3, 0xb0, 0xb1, 0xb6, 0xb7, 0xb4, 0xb5, 0xba, 0xbb, 0xb8, 0xb9, 0xbe, 0xbf, 0xbc, 0xbd, 0xc2, 0xc3, 0xc0, 0xc1, 0xc6, 0xc7, 0xc4, 0xc5, 0xca, 0xcb, 0xc8, 0xc9, 0xce, 0xcf, 0xcc, 0xcd, 0xd2, 0xd3, 0xd0, 0xd1, 0xd6, 0xd7, 0xd4, 0xd5, 0xda, 0xdb, 0xd8, 0xd9, 0xde, 0xdf, 0xdc, 0xdd, 0xe2, 0xe3, 0xe0, 0xe1, 0xe6, 0xe7, 0xe4, 0xe5, 0xea, 0xeb, 0xe8, 0xe9, 0xee, 0xef, 0xec, 0xed, 0xf2, 0xf3, 0xf0, 0xf1, 0xf6, 0xf7, 0xf4, 0xf5, 0xfa, 0xfb, 0xf8, 0xf9, 0xfe, 0xff, 0xfc, 0xfd, 0x02, 0x03, 0x00, 0x01, 0x06, 0x07, 0x04, 0x05, 0x0a, 0x0b, 0x08, 0x09, 0x0e, 0x0f, 0x0c, 0x0d, 0x12, 0x13, 0x10, 0x11, 0x16, 0x17, 0x14, 0x15, 0x1a, 0x1b, 0x18, 0x19, 0x1e, 0x1f, 0x1c, 0x1d, 0x22, 0x23, 0x20, 0x21, 0x26, 0x27, 0x24, 0x25, 0x2a, 0x2b, 0x28, 0x29, 0x2e, 0x2f, 0x2c, 0x2d, 0x32, 0x33, 0x30, 0x31, 0x36, 0x37, 0x34, 0x35, 0x3a, 0x3b, 0x38, 0x39, 0x3e, 0x3f, 0x3c, 0x3d, 0x42, 0x43, 0x40, 0x41, 0x46, 0x47, 0x44, 0x45, 0x4a, 0x4b, 0x48, 0x49, 0x4e, 0x4f, 0x4c, 0x4d, 0x52, 0x53, 0x50, 0x51, 0x56, 0x57, 0x54, 0x55, 0x5a, 0x5b, 0x58, 0x59, 0x5e, 0x5f, 0x5c, 0x5d, 0x62, 0x63, 0x60, 0x61, 0x66, 0x67, 0x64, 0x65, 0x6a, 0x6b, 0x68, 0x69, 0x6e, 0x6f },
    { 0x9d, 0x9c, 0x9f, 0x9e, 0x99, 0x98, 0x9b, 0x9a, 0xa5, 0xa4, 0xa7, 0xa6, 0xa1, 0xa0, 0xa3, 0xa2, 0xad, 0xac, 0xaf, 0xae, 0xa9, 0xa8, 0xab, 0xaa, 0xb5, 0xb4, 0xb7, 0xb6, 0xb1, 0xb0, 0xb3, 0xb2, 0xbd, 0xbc, 0xbf, 0xbe, 0xb9, 0xb8, 0xbb, 0xba, 0xc5, 0xc4, 0xc7, 0xc6, 0xc1, 0xc0, 0xc3, 0xc2, 0xcd, 0xcc, 0xcf, 0xce, 0xc9, 0xc8, 0xcb, 0xca, 0xd5, 0xd4, 0xd7, 0xd6, 0xd1, 0xd0, 0xd3, 0xd2, 0xdd, 0xdc, 0xdf, 0xde, 0xd9, 0xd8, 0xdb, 0xda, 0xe5, 0xe4, 0xe7, 0xe6, 0xe1, 0xe0, 0xe3, 0xe2, 0xed, 0xec, 0xef, 0xee, 0xe9, 0xe8, 0xeb, 0xea, 0xf5, 0xf4, 0xf7, 0xf6, 0xf1, 0xf0, 0xf3, 0xf2, 0xfd, 0xfc, 0xff, 0xfe, 0xf9, 0xf8, 0xfb, 0xfa, 0x05, 0x04, 0x07, 0x06, 0x01, 0x00, 0x03, 0x02, 0x0d, 0x0c, 0x0f, 0x0e, 0x09, 0x08, 0x0b, 0x0a, 0x15, 0x14, 0x17, 0x16, 0x11, 0x10, 0x13, 0x12, 0x1d, 0x1c, 0x1f, 0x1e, 0x19, 0x18, 0x1b, 0x1a, 0x25, 0x24, 0x27, 0x26, 0x21, 0x20, 0x23, 0x22, 0x2d, 0x2c, 0x2f, 0x2e, 0x29, 0x28, 0x2b, 0x2a, 0x35, 0x34, 0x37, 0x36, 0x31, 0x30, 0x33, 0x32, 0x3d, 0x3c, 0x3f, 0x3e, 0x39, 0x38, 0x3b, 0x3a, 0x45, 0x44, 0x47, 0x46, 0x41, 0x40, 0x43, 0x42, 0x4d, 0x4c, 0x4f, 0x4e, 0x49, 0x48, 0x4b, 0x4a, 0x55, 0x54, 0x57, 0x56, 0x51, 0x50, 0x53, 0x52, 0x5d, 0x5c, 0x5f, 0x5e, 0x59, 0x58, 0x5b, 0x5a, 0x65, 0x64, 0x67, 0x66, 0x61, 0x60, 0x63, 0x62, 0x6d, 0x6c, 0x6f, 0x6e, 0x69, 0x68, 0x6b, 0x6a, 0x75, 0x74, 0x77, 0x76, 0x71, 0x70, 0x73, 0x72, 0x7d, 0x7c, 0x7f, 0x7e, 0x79, 0x78, 0x7b, 0x7a, 0x85, 0x84, 0x87, 0x86, 0x81, 0x80, 0x83, 0x82, 0x8d, 0x8c, 0x8f, 0x8e, 0x89, 0x88, 0x8b, 0x8a, 0x95, 0x94, 0x97, 0x96, 0x91, 0x90, 0x93, 0x92 },
};

// ===================== TEA =====================
static const u32 TEA_KEY[4] = { 0x7B777C63u, 0xC56F6BF2u, 0x2B670130u, 0x76ABD7FEu };
static const u32 TEA_DELTA = 0xDEADBEEFu;
static const u32 TEA_INIT_SUM = 0xBEEFBEEFu;
static const u32 TEA_INIT_KS  = 0x9D9D7DDEu;
static const int TEA_ROUNDS = 64;

static void tea_encrypt(u32 &W21, u32 &W22) {
    u32 s = TEA_INIT_SUM, ks = TEA_INIT_KS;
    for (int i = 0; i < TEA_ROUNDS; ++i) {
        u32 t  = ((W22 << 7) ^ (W22 >> 8)) + W22;
        W21 = W21 + ((s - TEA_KEY[s & 3]) ^ t);
        u32 t2 = ((W21 << 8) ^ (W21 >> 7)) - W21;
        W22 = W22 + ((ks + TEA_KEY[(ks >> 13) & 3]) ^ t2);
        s  += TEA_DELTA;
        ks += TEA_DELTA;
    }
}

static void tea_decrypt(u32 &W21, u32 &W22) {
    u32 s  = TEA_INIT_SUM + (u32)TEA_ROUNDS * TEA_DELTA;
    u32 ks = TEA_INIT_KS  + (u32)TEA_ROUNDS * TEA_DELTA;
    for (int i = 0; i < TEA_ROUNDS; ++i) {
        s  -= TEA_DELTA;
        ks -= TEA_DELTA;
        u32 t2 = ((W21 << 8) ^ (W21 >> 7)) - W21;
        W22 = W22 - (((ks + TEA_KEY[(ks >> 13) & 3]) ^ t2));
        u32 t  = ((W22 << 7) ^ (W22 >> 8)) + W22;
        W21 = W21 - (((s - TEA_KEY[s & 3]) ^ t));
    }
}

// ===================== VM (Oo0 bytecode) =====================
// 前半: sub=27, xor1=0xC2, add=0xA8, xor2=0x36, 重组用 XOR shift
// 后半: sub=0x2F, xor1=0xB6, add=0x37, xor2=0x98, 重组用 ADD shift
enum MixOp { MIX_XOR, MIX_ADD };

static u32 vm_inverse(u32 target, u8 sub_c, u8 xor1_c, u8 add_c, u8 xor2_c, MixOp mix) {
    u8 regs[4];
    for (int i = 0; i < 4; ++i) {
        int shift = i * 8;
        u8 b = (u8)(target >> shift);
        regs[i] = (mix == MIX_XOR) ? (u8)(b ^ shift) : (u8)(b - shift);
    }
    u8 b0 = (u8)(regs[0] + sub_c);
    u8 b1 = (u8)(regs[1] ^ xor1_c);
    u8 b2 = (u8)(regs[2] - add_c);
    u8 b3 = (u8)(regs[3] ^ xor2_c);
    return (u32)b0 | ((u32)b1 << 8) | ((u32)b2 << 16) | ((u32)b3 << 24);
}

static u32 vm_forward(u32 val32, u8 sub_c, u8 xor1_c, u8 add_c, u8 xor2_c, MixOp mix) {
    u8 b0 = (u8)val32, b1 = (u8)(val32 >> 8), b2 = (u8)(val32 >> 16), b3 = (u8)(val32 >> 24);
    u8 regs[4] = { (u8)(b0 - sub_c), (u8)(b1 ^ xor1_c), (u8)(b2 + add_c), (u8)(b3 ^ xor2_c) };
    u32 result = 0;
    for (int i = 0; i < 4; ++i) {
        int shift = i * 8;
        u8 mixed = (mix == MIX_XOR) ? (u8)(regs[i] ^ shift) : (u8)(regs[i] + shift);
        result |= (u32)mixed << shift;
    }
    return result;
}

// ===================== Java encrypt (encrypt.dex) =====================
static const u8 JENC_KEY[4] = { 0x32, 0xCD, 0xFF, 0x98 };

static u32 java_encrypt(u32 x) {
    x = (x >> 7) | ((x & 0x7F) << 25);        // rotr 7
    u8 b[4] = { (u8)(x >> 24), (u8)(x >> 16), (u8)(x >> 8), (u8)x };
    for (int i = 0; i < 4; ++i)
        b[i] = (u8)((b[i] ^ JENC_KEY[i]) + i);
    return ((u32)b[0] << 24) | ((u32)b[1] << 16) | ((u32)b[2] << 8) | b[3];
}

static u32 java_decrypt(u32 y) {
    u8 b[4] = { (u8)(y >> 24), (u8)(y >> 16), (u8)(y >> 8), (u8)y };
    for (int i = 0; i < 4; ++i)
        b[i] = (u8)(((u8)(b[i] - i)) ^ JENC_KEY[i]);
    u32 r = ((u32)b[0] << 24) | ((u32)b[1] << 16) | ((u32)b[2] << 8) | b[3];
    return (r << 7) | (r >> 25);              // rotl 7
}

// ===================== sub_3B9D4 查表 =====================
static u32 sub3b9d4_fwd(u32 x) {
    u32 out = 0;
    for (int bp = 0; bp < 4; ++bp)
        out |= (u32)FWD_TBL[bp][(u8)(x >> (bp * 8))] << (bp * 8);
    return out;
}

static u32 sub3b9d4_inv(u32 x) {
    u32 out = 0;
    for (int bp = 0; bp < 4; ++bp)
        out |= (u32)INV_TBL[bp][(u8)(x >> (bp * 8))] << (bp * 8);
    return out;
}

// ===================== sec2023 =====================
static u32 bswap32(u32 u) {
    return ((u & 0xff) << 24) | (((u >> 8) & 0xff) << 16) | (((u >> 16) & 0xff) << 8) | (u >> 24);
}

static void sec2023_forward(u64 user_ulong, u32 &x1_lo, u32 &x1_hi) {
    u32 hi = (u32)(user_ulong >> 32);
    u32 lo = (u32)user_ulong;
    u32 v0 = sub3b9d4_fwd(hi);
    u32 v1 = sub3b9d4_fwd(lo);
    x1_lo = bswap32(java_encrypt(v0));
    x1_hi = bswap32(java_encrypt(v1));
}

static void sec2023_inverse(u32 x1_lo, u32 x1_hi, u32 &user_hi, u32 &user_lo) {
    u32 v0 = java_decrypt(bswap32(x1_lo));
    u32 v1 = java_decrypt(bswap32(x1_hi));
    user_hi = sub3b9d4_inv(v0);
    user_lo = sub3b9d4_inv(v1);
}

// ===================== keygen =====================
static u64 keygen(u32 token) {
    u32 reg0 = token, reg1 = 0;
    tea_decrypt(reg0, reg1);
    u32 x1_lo = vm_inverse(reg0, 27,   0xC2, 0xA8, 0x36, MIX_XOR);
    u32 x1_hi = vm_inverse(reg1, 0x2F, 0xB6, 0x37, 0x98, MIX_ADD);
    u32 user_hi, user_lo;
    sec2023_inverse(x1_lo, x1_hi, user_hi, user_lo);
    return ((u64)user_hi << 32) | user_lo;
}

static bool verify(u64 user_input, u32 token) {
    u32 x1_lo, x1_hi;
    sec2023_forward(user_input, x1_lo, x1_hi);
    u32 reg0 = vm_forward(x1_lo, 27,   0xC2, 0xA8, 0x36, MIX_XOR);
    u32 reg1 = vm_forward(x1_hi, 0x2F, 0xB6, 0x37, 0x98, MIX_ADD);
    tea_encrypt(reg0, reg1);
    return reg0 == token && reg1 == 0;
}

// ===================== main =====================
int main(int argc, char **argv) {
    if (argc < 2) {
        fprintf(stderr, "用法: %s <token> [<token>...]\n", argv[0]);
        fprintf(stderr, "示例: %s 13732582\n", argv[0]);
        return 1;
    }
    for (int i = 1; i < argc; ++i) {
        u32 tok = (u32)strtoul(argv[i], nullptr, 0);
        u64 key = keygen(tok);
        bool ok = verify(key, tok);
        printf("token = %u  (0x%x)\n", tok, tok);
        printf("user  = %llu  (0x%llx)  [%s]\n\n",
               (unsigned long long)key, (unsigned long long)key, ok ? "PASS" : "FAIL");
    }
    return 0;
}

无敌模式触发flag

输入注册机生成的key，就触发无敌模式了

反调试分析

整个会话里我们多次看到Process terminated

不管 hook 什么，进程经常点 OK 后就被 kill

很可能代码完整性校验，不然应该一进游戏就被kill了

写一个脚本去trace，故意触发反调试,再去hook了libc.so的退出的操作

// v2: 先 hook sec2023 触发反调试, 再监控 exit 类函数被谁调用
Java.perform(function() {
    console.log("[+] installing exit monitors first...");

    // 1. hook 所有退出函数 (必须在触发反调试的 hook 之前装!)
    ['exit', '_exit', 'abort', 'raise'].forEach(function(name) {
        var addr = Module.findExportByName("libc.so", name);
        if (!addr) return;
        Interceptor.attach(addr, {
            onEnter: function(args) {
                console.log("\n[!!!] libc." + name + "(" + args[0] + ")");
                console.log("backtrace:");
                Thread.backtrace(this.context, Backtracer.ACCURATE).forEach(function(a){
                    var sec = Module.findBaseAddress("libsec2023.so");
                    var il2cpp = Module.findBaseAddress("libil2cpp.so");
                    var rel_sec = a.sub(sec).toUInt32 ? a.sub(sec).toUInt32() : 0xFFFFFFFF;
                    var rel_il = a.sub(il2cpp).toUInt32 ? a.sub(il2cpp).toUInt32() : 0xFFFFFFFF;
                    if (rel_sec < 0x100000) {
                        console.log("  sec2023+0x" + rel_sec.toString(16));
                    } else if (rel_il < 0x2000000) {
                        console.log("  il2cpp+0x" + rel_il.toString(16));
                    } else {
                        console.log("  " + a + " " + DebugSymbol.fromAddress(a));
                    }
                });
            }
        });
    });
    console.log("[+] exit monitors ready");

    // 2. 装一个触发反调试的 hook
    var sec = Module.findBaseAddress("libsec2023.so");
    if (sec) {
        Interceptor.attach(sec.add(0x3A924), {
            onEnter: function(args) {
                console.log("[hook@3A924] args[0]=" + args[0]);
            }
        });
        console.log("[+] trigger hook on sec2023+0x3A924 installed");
    }

    console.log("[+] press OK now, watch for exit trace");
});

sec2023 绕过 libc，用直接 syscall 杀自己

静态找 SVC 指令，既然是裸 syscall，那必然有 SVC 指令。用 IDA 扫整个 libsec2023.so 的 .text 段：

1
2
3

for ea in .text:
     if mnem == 'SVC':
         记录

整个 libsec2023.so 里只有 1 条 SVC 指令，在 0x20FEC。

这是 syscall wrapper。参数从 X0 拿 syscall number，其他参数在 X1-X6。所有 syscall 都通过它。

xref 到 sub_20FD0，找出 12 个 caller：

sub_1F3A4 : syscall 0x38 (56=openat)
sub_1F3BC : syscall 0x38 (openat)
sub_1F3D8 : syscall 0x40 (64=write)
sub_1F400 : syscall 0x3F (63=read)
sub_1F42C : syscall 0x39 (57=close)
sub_36784 : ???
sub_367B0 : syscall 0xAC, 0x81  ← 可疑!

每个 caller 在调 sub_20FD0 前会 MOV W0, #syscall_nr。看每个的 syscall 号，对照 AArch64 Linux syscall table。sub_367B0 用 0xAC (172=getpid) 和 0x81 (129=kill) — 完全符合自杀模式。

BL  sub_36818           ; 做点事 (后面会看)
MOV W0, #0xAC           ; syscall 172 = getpid
BL  sub_20FD0           ; → 返回 pid 到 X0
MOV W1, W0              ; W1 = pid
MOV W0, #0x81           ; syscall 129 = kill
MOV W2, #9              ; signal 9 = SIGKILL
B   sub_20FD0           ; kill(pid, 9)

sub_3681中

还会sleep2这也是为什么2s后才会退出

trace确认下

// 检查 sub_367B0 是否真的走到 getpid/kill
function waitForLib(cb) {
    var i = setInterval(function () {
        var b = Module.findBaseAddress("libsec2023.so");
        if (b) { clearInterval(i); cb(b); }
    }, 500);
}

waitForLib(function(sec) {
    // hook sub_367B0 入口
    Interceptor.attach(sec.add(0x367B0), {
        onEnter: function(args) {
            console.log("\n[+] sub_367B0 ENTER, arg=0x" + args[0].toString(16));
            console.log("backtrace:");
            Thread.backtrace(this.context, Backtracer.ACCURATE).forEach(function(a){
                var rel = a.sub(sec).toUInt32 ? a.sub(sec).toUInt32() : 0xFFFFFFFF;
                if (rel < 0x100000) console.log("  sec+0x" + rel.toString(16));
                else console.log("  " + a);
            });
        },
        onLeave: function(retval) {
            console.log("[+] sub_367B0 LEAVE ret=" + retval);
        }
    });

    // hook 0x367F8 (MOV W0, #0xAC 即 getpid 前)
    Interceptor.attach(sec.add(0x367F8), {
        onEnter: function() {
            console.log("[!!!] reached 0x367F8 (about to call getpid)");
            Thread.backtrace(this.context, Backtracer.ACCURATE).forEach(function(a){
                var rel = a.sub(sec).toUInt32 ? a.sub(sec).toUInt32() : 0xFFFFFFFF;
                console.log("  sec+0x" + rel.toString(16));
            });
        }
    });

    // hook 0x36808 (kill syscall)
    Interceptor.attach(sec.add(0x36808), {
        onEnter: function() {
            console.log("[!!!] reached 0x36808 (about to kill(pid, 9))");
        }
    });

    // hook sub_36818 - 中间的函数
    Interceptor.attach(sec.add(0x36818), {
        onEnter: function() {
            console.log("  [+] sub_36818 ENTER");
        },
        onLeave: function(rv) {
            console.log("  [+] sub_36818 LEAVE ret=" + rv);
        }
    });

    console.log("[+] press OK");
});

sec+0x364c4 调 sub_367B0 的地方

sec+0x364c4 (在 sub_364B0 里):
LDR X8, [X19,#0x88]    ; 从对象 +0x88 取函数指针
LDR W9, [X28,#0x20]    ; 取密钥
LDR W0, [X20,#8]       ; 取 arg = 1
EOR X8, X8, X23        ; 解密函数指针
BLR X8                 ; 调用! X8 = sub_367B0

函数指针是加密存储的，XOR 解密后才调。这就是为什么静态 xref 找不到这条调用路径。

hooksyscall下看看

// Hook sec2023 的 syscall wrapper, 记录所有 syscall
function waitForLib(cb) {
    var i = setInterval(function () {
        var b = Module.findBaseAddress("libsec2023.so");
        if (b) { clearInterval(i); cb(b); }
    }, 500);
}

// ARM64 Linux syscall number table
var SYSCALLS = {
    17: 'getcwd', 29: 'ioctl', 38: 'renameat', 48: 'faccessat',
    49: 'chdir', 56: 'openat', 57: 'close', 62: 'lseek', 63: 'read',
    64: 'write', 65: 'readv', 66: 'writev', 78: 'readlinkat', 79: 'fstatat',
    80: 'fstat', 93: 'exit', 94: 'exit_group', 96: 'set_tid_address',
    99: 'set_robust_list', 113: 'clock_gettime', 115: 'clock_nanosleep',
    117: 'ptrace', 129: 'kill', 130: 'tkill', 131: 'tgkill',
    134: 'sigaction', 135: 'sigprocmask', 139: 'sigreturn',
    147: 'setpriority', 153: 'times', 160: 'uname', 167: 'prctl',
    172: 'getpid', 178: 'gettid', 179: 'sysinfo', 183: 'getcwd',
    214: 'brk', 215: 'munmap', 220: 'clone', 221: 'execve',
    222: 'mmap', 226: 'mprotect', 281: 'getrandom'
};

waitForLib(function(sec) {
    var il = Module.findBaseAddress("libil2cpp.so");

    Interceptor.attach(sec.add(0x20FD0), {
        onEnter: function(args) {
            // syscall number is in X0 at entry
            var nr = this.context.x0.toInt32();
            var x1 = this.context.x1;
            var x2 = this.context.x2;
            var x3 = this.context.x3;
            var name = SYSCALLS[nr] || ('sys' + nr);

            // 特别关注的 syscall: 读文件 / 检测
            var interesting = [56, 57, 63, 64, 78, 79, 80, 117, 167, 226];

            // 非关注的只记计数
            if (interesting.indexOf(nr) < 0) {
                return;
            }

            var info = "[syscall " + nr + "=" + name + "] ";

            // 对 openat / readlinkat 读路径字符串
            if (nr === 56 || nr === 78) {
                // openat(dirfd, pathname, flags, mode)
                try {
                    var path = x2.readCString();
                    info += 'path="' + path + '"';
                } catch(e) {}
            } else if (nr === 63) {
                // read(fd, buf, count)
                info += 'fd=' + x1 + ' count=' + x3;
            } else if (nr === 226) {
                // mprotect(addr, len, prot)
                info += 'addr=' + x1 + ' len=' + x2 + ' prot=' + x3;
            } else if (nr === 117) {
                // ptrace(request, pid, addr, data)
                info += 'req=' + x1 + ' pid=' + x2;
            } else if (nr === 167) {
                // prctl
                info += 'opt=' + x1 + ' arg=' + x2;
            }

            console.log(info);

            // backtrace for context
            Thread.backtrace(this.context, Backtracer.ACCURATE).slice(0, 4).forEach(function(a){
                var rs = a.sub(sec).toUInt32 ? a.sub(sec).toUInt32() : 0xFFFFFFFF;
                if (rs < 0x100000) console.log("  from sec+0x" + rs.toString(16));
            });
        }
    });

    // 也 hook sub_3A924 触发反调试
    Interceptor.attach(sec.add(0x3A924), {
        onEnter: function() { console.log("[trigger: sub_3A924 called]"); }
    });

    console.log("[+] syscall monitor ready, press OK");
});

[syscall 56=openat] path="/proc/self/maps"
  from sec+0x1f5a4
  from sec+0x2db18
  from sec+0x2e2a4
  from sec+0x2e358

[syscall 56=openat] path="/data/app/~~xSj5XGBgAVR1wIwm0PSo0w==/com.com.sec2023.rocketmouse.mouse-PPG-iEoicy-mM_SJhKWuKQ==/lib/arm64/libsec2023.so"
  from sec+0x1f5a4
  from sec+0x373d8
  from sec+0x3710c
  from sec+0x3710c

[syscall 63=read] fd=0x92 count=0x1000
  from sec+0x1fba4
  from sec+0x1fab0
  from sec+0x37548
  from sec+0x3710c
[syscall 63=read] fd=0x92 count=0x1000
  from sec+0x1fba4
  from sec+0x1fab0
  from sec+0x37548
  from sec+0x3710c

Process terminated
[Remote::mouse ]->

触发条件就是内存中 libsec2023.so 的 .text 段和磁盘上原版不一致, 立刻 kill。

从 syscall trace看到：

读 /proc/self/maps
读 libsec2023.so（从磁盘）
每次读 4KB (count=0x1000)
循环很多次（读完整个 .so 文件）
读完就死

syscall trace 里 read 调用的 backtrace里有sub_370AC和0x37548

跟到sub_37940

立刻认出来：这是 CRC32 的标准算法：

crc = table[(crc ^ byte) & 0xFF] ^ (crc >> 8)

查表位置 X13 = off_70F70 指向 unk_5B3C8，这是 CRC32 的 256 项查找表。

检测函数 vtable[2]obj 返回检测结果（0=clean, 非0=detected）。它不自己杀，只是返回结果。杀不杀由调用者决定。

我们只需要在这做hook即可,假如反反调试

// Bypass: 在 CMP W0, #0 之前强制 W0 = 0
// 让检测函数的结果被忽略, 即使 CRC 不匹配也不 kill
function waitForLib(cb) {
    var i = setInterval(function () {
        var b = Module.findBaseAddress("libsec2023.so");
        if (b) { clearInterval(i); cb(b); }
    }, 500);
}

waitForLib(function(sec) {
    var hook_count = 0;
    // hook 在 CMP W0, #0 那条指令前 (sec+0x3649c)
    // 此时 W0 = vtable[2](obj) 的返回值
    Interceptor.attach(sec.add(0x3649c), {
        onEnter: function() {
            hook_count++;
            var w0 = this.context.x0.toInt32();
            console.log("[check #" + hook_count + "] detector returned w0=" + w0 + (w0 !== 0 ? " (TAMPERED!) → force 0" : " (clean)"));
            if (w0 !== 0) {
                // 强制返回值为 0, 骗消费者说"没事"
                this.context.x0 = ptr(0);
            }
        }
    });

    // 装一个触发反调试的 hook (hook sec2023 某个函数)
    Interceptor.attach(sec.add(0x3A924), {
        onEnter: function(args) {
            console.log("[hook@3A924] args[0]=" + args[0]);
        }
    });
    console.log("[+] trigger hook on sec2023+0x3A924 installed");

    console.log("[+] press OK now, watch if it survives or dies");
});
